TBS Crossfire TX LITE

Same awesome Crossfire, just without the Bluetooth module! If you don't need to utilize the Bluetooth feature in the original Crossfire, this option is the best way to save some money while getting the same Crossfire technology as before.The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diversity rather than just antenna-diversity, the features already implemented and the future upgrades to come make the TBS CROSSFIRE the only long range control link worthy of our times.Remote control links, however, are tasked with much more than range. Telemetry, robustness against interference, connectivity with smart devices, ease of use and the overall finish are often overlooked to achieve the last bit of range. The end result is often strange behavior, lack of reliability, or simply things that were never envisioned and thus not possible. Let's kiss those days goodbye, and move on to a brighter future.
Check out the rest of out TBS Products and our RC Transmitters!
Features

Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing &amp frequency hopping (DSSS, FHSS)
RX beacon mode to recover your downed aircraft
Super easy binding and configuration via built-in display
Low latency control for perfect immersive feeling
Two receiver models: 8ch Diversity Rx, 8ch PPM Mini-receiver (4g weight!)
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 10mW to 2W (local restrictions apply)
Dedicated head-tracking input option for full FPV immersion
Transmitter LED shows link health, OLED display for built-in configuration
Short-Range mobile connectivity telemetry output for smartphone apps
Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
CRSF protocol interface to Betaflight, Kiss and Raceflight FCs ( lower latency, higher update rate, telemetry support )
Expansion port for future feature support
Software updates via RF Link


Developed by Experts
Team BlackSheep has been notorious for long range records, close-to-ground proximity flying in the Alps and deep urban operations. During our numerous missions all around the globe, we have gathered a list of requirements, and have found that no existing system can cover them all. So we set on a long and painful path to develop an RC link system entirely from scratch, put it through its paces for over a year to ensure top-notch reliability and state-of-the-art functionality.
Through the OLED Display on the transmitter, you can monitor the real-time location of your drone (TBS GPS or BlackBox with DJI Naza or APM-based GPS required).  The up- and downlink status provide a feeling of safety, the configuration options through the OLED display do away with any PC-based configuration tools. The pulsing LED relays your link budget and link health in colorized form (green = keep going, orange = turn around). In case of a crash, the location of the drone is visible on the OLED as well. The built-in battery on the receiver turns it into a beacon automatically - and it will continue to transmit its last known location until the battery runs out.
It Just Works
Apart from unparalleled maximum range, the thing that we are most proud about on the TBS CROSSFIRE is that it just works. In the past, our question always was "could our R/C link keep up?". Many missions were aborted, or lines weren't flown, due to premature failure of the R/C link. Once we switched to the CROSSFIRE, all of these problems were gone. As long as we had video, we had control. And when the video was gone, we still had control - and telemetry. With the TBS CROSSFIRE comes peace of mind. Download the manualDownload TBS Agent (software updates)
Specifications

915MHz (USA, Asia, Australia)
Input Voltage: 3.5 - 13V
Power consumption: 1.1W (@10mW) - 3.2W (@2000mW)
Dimensions: 55 x 89 x 15 mm
Weight: 76g

Includes

TBS Crossfire Transmitter
TBS Crossfire JR Adapter
TBS Crossfire Tuned Tx Antenna
Crossfire Futaba cable
Crossfire Graupner cable
Crossfire PWM Pigtail
Crossfire JST to XT30 cable


Same awesome Crossfire, just without the Bluetooth module! If you don't need to utilize the Bluetooth feature in the original Crossfire, this option is the best way to save some money while getting the same Crossfire technology as before.The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capa

TBS Crossfire LITE 900MHz RC Transmitter Module

Team BlackSheep

The TBS CROSSFIRE TX LITE packs all the regular Crossfire technology. As it comes without a Bluetooth module, it's perfect for FPV pilots who want to save a bit of money!





TBS CROSSFIRE TX LITE - LONG RANGE R/C TRANSMITTER


The TBS CROSSFIRE TX LITE packs all the regular Crossfire technology. As it comes without a Bluetooth module, it&#39s perfect for FPV pilots who want to save a bit of money!











1

A NEW ERA OF CONNECTIVITY

The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diveristy, tiny receivers for FPV quads, the TBS CROSSFIRE contains the most modern technology to provide a superior long range control link.
Remote control links, however, are tasked with much more than range. Latency, telemetry, robustness against interference, connectivity with smart devices, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. A bright future for FPV lies ahead :)
DEVELOPED BY EXPERTS

Team BlackSheep has been notorious for long range records, close-to-ground proximity flying in the Alps and deep urban operations. During our numerous missions all around the globe we have gathered a list of requirements, and have found that no existing system can cover them all. So we set on a long and painful path to develop a RC link system entirely from scratch, put it through its paces for over a year to ensure top-notch reliability and state-of-the-art functionality.
Through the OLED Display on the transmitter, you can monitor the real-time location of your drone (TBS GPS or BlackBox with DJI Naza or APM-based GPS required).  The up- and downlink status provide a feeling of safety, the configuration options through the OLED display do away with any PC-based configuration tools. The pulsing LED relays your link budget and link health in colorized form (green = keep going, orange = turn around). In case of a crash, the location of the drone is visible on the OLED as well. The built in battery on the receiver turns it into a beacon automatically - and it will continue to transmit its last known location until the battery runs out.
IT JUST WORKS

Apart from unparalelled range, the thing that we are most proud about on the TBS CROSSFIRE is that it just works. In the past, our question always was &quotcould our R/C link keep up?&quot. With the TBS CROSSFIRE comes peace of mind. But don&#39t take our word for it. All leading drone racing organizers require pilots to fly the TBS Crossfire. All top drone racers fly the TBS Crossfire. The furthest long range missions are flown with TBS Crossfire. This is the long range link that everyone has been waiting for!
TELEMETRY / CRSF

As a modern R/C link, it has telemetry built in. Two-way communication opens up new possibilities. From updating your firmware, setting your video transmitter channel to adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.
DOWNLOADS


TBS Crossfire Manual
TBS Crossfire Manual (German)

TBS Agent X (for software updates)
Latest OpenTX LUA Scripts for Crossfire
TBS Cloud - Wifi Firmware
TBS Cloud - Crossfire &ampamp Mavlink Over Wifi

OpenTX Nightly Firmware (Updated - Jan.11. 2021)
TBS Agent Lite

FEATURES:


Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing &ampamp frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Serial Modem capable of transmitting serial protocols (up &ampamp downlink)
RX beacon mode to recover your downed aircraft
Super easy binding and configuration via built-in display
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8ch Diversity Rx, 4ch PPM/SBUS Mini-receiver (4g weight!)
8 or 12ch output via PPM/SBUS/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 10mW to 2W (local restrictions apply)
Dedicated head-tracking input option for full FPV immersion
Transmitter LED shows link health, OLED display for built in configuration
Short-Range mobile connectivity telemetry output for smartphone apps
Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
CRSF protocol interface to Betaflight, Kiss and Raceflight FCs ( lower latency, higher update rate,..

TBS CROSSFIRE TX LITE - LONG RANGE R/C TRANSMITTER The TBS CROSSFIRE TX LITE packs all the regular Crossfire technology. As it comes without a Bluetooth module, it's perfect for FPV pilots who want to save a bit of money! 1 A NEW ERA OF CONNECTIVITY   The TBS CROSSFIRE is a long range R/C link based on the newest RF te

TBS Crossfire Lite Long Range 915Mhz Transmitter Module from WREKD Co.

TBS Crossfire Lite Long Range 915Mhz Transmitter Module

Radio Equipment

The radio is typically your first purchase. You control your quad using your radio which sends signals to your quad’s receiver. Beginner’s should choose an ELRS-compatible radio. Learn more about radios.

Radio Transmitters and Modules

TBS Crossfire Micro TX V2

The Crossfire TX V2 Micro is a modern R/C link with telemetry built in. Two-way communication opens up new possibilities. From streaming MAVLink to you smart device (no Mavlink stream support for Crossfire Micro TX!), to updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.
Check out the rest of out TBS Products and our RC Transmitters!
Features

Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing &amp frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Super easy binding and configuration via built-in display of your R/C
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
8 or 12ch output via SBUS/PPM/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 25mW to 1W (local restrictions apply)
Transmitter LED shows link health
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link



Specifications

Frequency Bands: 915MHz (USA, Asia, Australia)
Input Voltage: 6.0 - 13V
Connector: USB-C
Power consumption: 1.1W (@10mW) - 2W (@100mW)
Dimensions: 65 x 48 x 22 mm (JR module size)
Weight: 48g

DOWNLOADSTBS Crossfire ManualTBS Crossfire Micro TX Quickstart GuideTBS Agent X (for software updates)Latest OpenTX LUA Scripts for Crossfire
Includes

1x Crossfire Micro Transmitter (JR module)
1x Crossfire Stock Tx Antenna V2 (pre-installed)

Includes Starter Combo

1 x TBS Crossfire Micro TX V2
3 x TBS Crossfire Nano RX
3 x TBS Crossfire Micro Receiver Antenna
3 x TBS Crossfire Immortal T V2 Antenna
1 x Taranis QX7 Mod
3 x Cables and Shrink Tubes set


The Crossfire TX V2 Micro is a modern R/C link with telemetry built in. Two-way communication opens up new possibilities. From streaming MAVLink to you smart device (no Mavlink stream support for Crossfire Micro TX!), to updating your firmware, setting your video transmitter channel or adjusting flight control paramete

TBS Crossfire TX V2 Micro 900MHz RC Transmitter Module - Black

FLYWOO

The updated Crossfire Micro Tx V2 boiled down to its pure essence for long range up to 40km and FPV racers that need ultra-low latency.   V2 Changes USB Type-C Simplified PCB Design for better performance More features will be introduced later The TBS Crossfire is a long-range R/C link based on the newest RF technology

The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diveristy, tiny receivers for FPV quads, the TBS CROSSFIRE contains the most modern technology to provide a superior lon

TBS Crossfire Micro Tx Transmitter Module V2





TBS CROSSFIRE MICRO TX V2


The Crossfire module boiled down to its pure essence for long range up to 40km, and FPV racers that need ultra low latency.











A NEW ERA OF CONNECTIVITY
The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diveristy, tiny receivers for FPV quads, the TBS CROSSFIRE contains the most modern technology to provide a superior long range control link.
Remote control links, however, are tasked with much more than range. Latency, telemetry, robustness against interference, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. A bright future for FPV lies ahead :)
BOILED DOWN TO SIMPLICITY
The Crossfire Micro TX borrows the core technology from its larger brother, but is a JR-module transmitter simplified to the most sought-after features, at a killer price! For people looking to do extreme long range flights beyond 15-20km, the Crossfire TX is still the way to go. For anyone looking to penetrate buildings, fly mini quads or just explore your surroundings a few kilometers away, the Micro TX is the perfect companion. It will still go out up to 40km, just like its bigger brother. But it costs less than half the price.
IT JUST WORKS
Apart from unparalelled range, the thing that we are most proud about on the TBS CROSSFIRE is that it just works. In the past, our question always was &quotcould our R/C link keep up?&quot. With the TBS CROSSFIRE comes peace of mind. But don&#39t take our word for it. All leading drone racing organizers require pilots to fly the TBS Crossfire. All top drone racers fly the TBS Crossfire. The furthest long range missions are flown with TBS Crossfire. Now it has become affordable to the masses as a general purpose radio link!
TELEMETRY / CRSF
As a modern R/C link, it has telemetry built in. Two-way communication opens up new possibilities. From streaming MAVLink to you smart device (no Mavlink stream support for Crossfire Micro TX!), to updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.
DOWNLOADS

TBS Crossfire Manual
TBS Crossfire Manual (German)
TBS Crossfire Micro TX Quickstart Guide

TBS Agent X (for software updates)
Latest OpenTX LUA Scripts for Crossfire
TBS Cloud - Wifi Firmware
TBS Cloud - Crossfire &ampamp Mavlink Over Wifi

OpenTX Nightly Firmware (Updated - Jan.11. 2021)
TBS Agent Lite

FEATURES:

Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing &ampamp frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Super easy binding and configuration via built-in display of your R/C
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
8 or 12ch output via SBUS/PPM/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 25mW to 1W (local restrictions apply)
Transmitter LED shows link health
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link

TECHNICAL SPECIFICATIONS:


Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)

Input Voltage: 6.0 - 13V

Connector: USB-C

Power consumption: 1.1W (@10mW) - 2W (@100mW)

Dimensions: 65 x 48 x 22 mm (JR module size)

Weight: 48g

PACKAGE INCLUDES

TBS Crossfire Micro Transmitter (JR module)
TBS Crossfire Stock Tx Antenna V2

CERTIFICATES

TBS Crossfire - FCC Certificate Part 15C
TBS Crossfire - FCC Certificate Part 15B
TBS Crossfire - FCC DOC
TBS Crossfire - RED Declaration of Conformity




TBS CROSSFIRE MICRO TX V2 The Crossfire module boiled down to its pure essence for long range up to 40km, and FPV racers that need ultra low latency. A NEW ERA OF CONNECTIVITY The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond co

TBS Crossfire MicroTX2 915Mhz Transmitter Module from WREKD Co.

TBS Crossfire MicroTX2 915Mhz Transmitter Module

The updated Crossfire Micro Tx V2 boiled down to its pure essence for long range up to 40km, and FPV racers that need ultra-low latency.

The Crossfire TX V2 Micro is a modern R/C link with telemetry built in. Two-way communication opens up new possibilities. From streaming MAVLink to you smart device (no Mavlink stream support for Crossfire Micro TX!), to updating your firmware, setting your video transmitter channel or adjusting flight control parameters such as PIDs. Adaptive bandwidth controls the speed of transmission or optimizes for ultimate range. CRSF is a proprietary TBS communication protocol between the Crossfire and R/C and Flight Control. It provides ultra-low latency with incredible bandwidth (3x faster, 6x more data than any comparable protocol!). With such tight integration, the TBS Crossfire is the logical choice for anyone flying Betaflight, KiSS or ArduPilot/Pixhawk platforms.
Check out our RC Transmitters!
Features

Long range, adaptive and robust remote control system for your aircraft
Immune to on-board noise
Two-way communication link with real-time link vitals and telemetry
Self-healing &ampamp frequency hopping (DSSS, FHSS)
Adaptive bandwidth control and range optimization
Super easy binding and configuration via built-in display of your R/C
Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
Two receiver models: 8 port Diversity Rx, 4 port Mini-receiver (4g weight!)
8 or 12ch output via SBUS/PPM/CRSF on both receivers
Ability to fly with multiple friends at the same time (10 or more)
Selectable RF power from 25mW to 1W (local restrictions apply)
Transmitter LED shows link health
Micro-receiver for smaller drones. Smaller than you think!
Software updates via RF Link



Specifications

Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)
Input Voltage: 6.0 - 13V
Connector: USB-C
Power consumption: 1.1W (@10mW) - 2W (@100mW)
Dimensions: 65 x 48 x 22 mm (JR module size)
Weight: 48g

 Includes

Crossfire Micro Transmitter (JR module)
Crossfire Stock Tx Antenna V2 (pre-installed)


TBS Crossfire TX V2 Micro 900MHz RC Transmitter Module - Black from WREKD Co.

Team Black Sheep

A NEW ERA OF CONNECTIVITYThe TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications and range beyond comprehension. With a sensitivity of -130dB, full RF-side diveristy, tiny receivers for FPV quads, the TBS CROSSFIRE contains the most modern technology to provide a superior long range control link.Remote control links, however, are tasked with much more than range. Latency, telemetry, robustness against interference, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. A bright future for FPV lies ahead :)

Get the TBS Crossfire Micro TX V2 shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TeamBlackSheep (TBS) Crossfire Micro TX V2 - RMRC

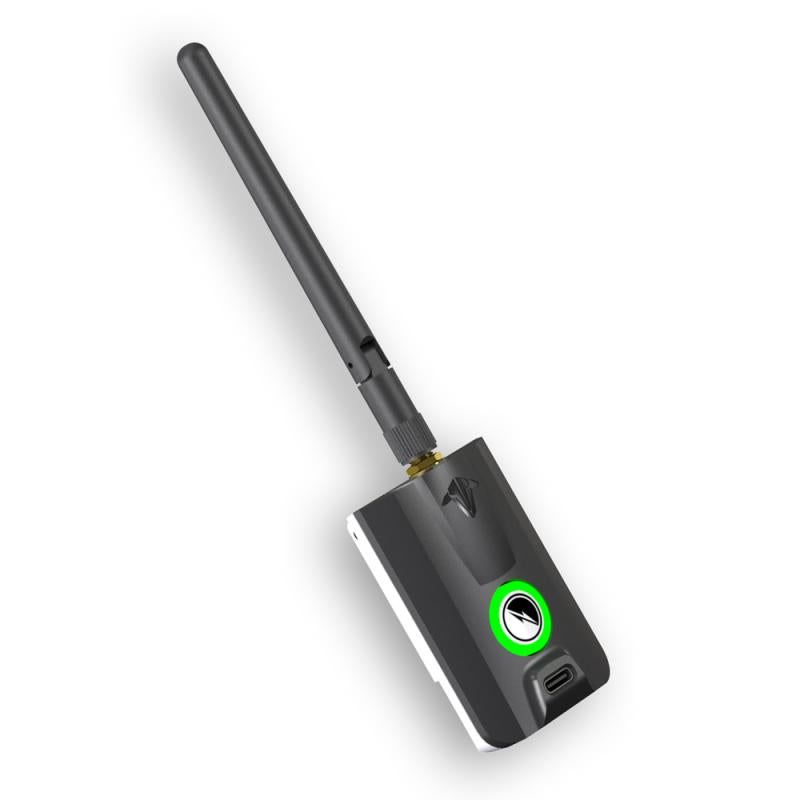

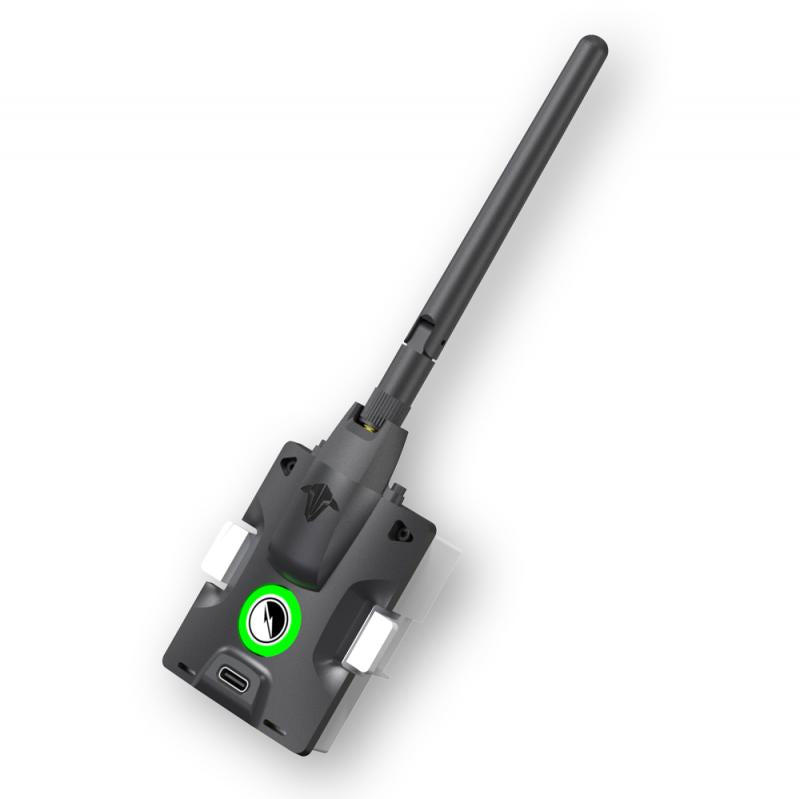

TBS Tracer Nano TX

Tracer technology utilizes a 250Hz radio link sent through 2.4GHz technology which provides 3ms end to end latency - giving you the fastest radio link out there. Get range for days, faster connection, and best results with the TBS Tracer.

In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for day

Team Blacksheep TBS Tracer Nano 2.4GHz TX

TBS TRACER NANO TXIn a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for days.

Get the TBS Tracer Nano TX 2.4GHz Crossfire shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TBS Tracer Nano TX 2.4GHz Crossfire - RMRC

TBS Tracer Nano TX 2.4GHz Crossfire

In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for days.

TBS TRACER NANO TX FEATURES

250Hz: Fastest available radio and telemetry link
Brand new 2.4GHz technology not found in any other radio link
3ms end to end latency
Crossfire engine for ultimate compatibility and functionality
"JR" and "LITE" form factor transmitters
Nano-sized receiver with antenna diversity
15mi+/25km+ range
For drones, planes, helicopters, cars and boats


TBS TRACER NANO TX SPECIFICATIONS:


Latency &amp Refresh Rate: 3ms, 250Hz

Output power: 25mW / 100mW

Frequency Bands: 2.4GHz ISM

Input Voltage: 5V - 9V

Connector: USB-C

Power consumption: 1.1W (@10mW) - 2W (@100mW)

Dimensions: 65 x 48 x 22 mm (JR module size)

Radio Compatibility: Lite module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in Futaba and Spektrum remotes that do not have a JR-module bay

* output power modes may not be available due to local regulation limitations

TBS TRACER NANO TX

In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End-to-end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, and range for days.
This is a perfect match for the Tracer Nano receiver
Features

250Hz: Fastest available radio and telemetry link

Brand new 2.4GHz technology not found in any other radio link

3ms end-to-end latency

Crossfire engine for ultimate compatibility and functionality

For LITE form factor transmitters

Nano-sized receiver with antenna diversity

15mi+/25km+ range

For drones, planes, helicopters, cars, and boats

Specifications

Latency &amp Refresh Rate: 3ms, 250Hz

Output power: 25mW / 100mW

Frequency Bands: 2.4GHz ISM

Input Voltage: 5V - 9V

Connector: USB-C

Power consumption: 1.1W (@10mW) - 2W (@100mW)

Dimensions: 65 x 48 x 22 mm (JR module size)

Radio Compatibility: Lite module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in
Futaba and Spektrum remotes that do not have a JR-module bay

Includes

1x Tracer 100mW 2.4GHz Nano TX Module
1x Antenna


In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End-to-end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, and range for days.

Tracer 100mW 2.4GHz Nano TX Module

In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End-to-end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, and range for days. This is a perfect match for the Tracer Nano receiver Features 250Hz: Fastest available radio and telemetry link Brand new 2.4GHz technology not found in any other radio link 3ms end-to-end latency Crossfire engine for ultimate compatibility and functionality For LITE form factor transmitters Nano-sized receiver with antenna diversity 15mi+/25km+ range For drones, planes, helicopters, cars, and boats Specifications Latency &amp; Refresh Rate: 3ms, 250Hz Output power: 25mW / 100mW Frequency Bands: 2.4GHz ISM Input Voltage: 5V - 9V Connector: USB-C Power consumption: 1.1W









TBS is constantly evolving FPV, and while Crossfire has long been the king of long range and penetration, we had been begging for something faster.  Tracer is TBS&#39s new 2.4GHz low latency protocol, with built in diversity, for an even faster link, capable of over 29km...but TBS isnt one to just sit on a new product, they&#39re continuing to evolve. They&#39re adding a 50hz LORA mode to push the range even further, and there are leaks from Trappy that they plan to go faster than 250Hz mode, and we just got a mixer bypass for internal TBS radios dropping the latency even further. I love how this company releases updates to constantly give us more features.



TBS TRACER NANO TX - FPV RACING DRONE TRANSMITTER


In a race, microseconds count. Goggles down, thumbs up - are you ready for a true 250Hz radio link? End to end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, range for days.



TBS TRACER NANO TX FEATURES








250Hz: Fastest available radio and telemetry link
Brand new 2.4GHz technology not found in any other radio link
3ms end to end latency
Crossfire engine for ultimate compatibility and functionality
&quotJR&quot and &quotLITE&quot form factor transmitters
Nano-sized receiver with antenna diversity
15mi+/25km+ range
For drones, planes, helicopters, cars and boats


TBS TRACER NANO TX SPECIFICATIONS:


Latency &ampamp Refresh Rate: 3ms, 250Hz

Output power: 25mW / 100mW

Frequency Bands: 2.4GHz ISM

Input Voltage: 5V - 9V

Connector: USB-C

Power consumption: 1.1W (@10mW) - 2W (@100mW)

Dimensions: 65 x 48 x 22 mm (JR module size)

Radio Compatibility: Lite module bay (e.g. TBS Tango 2, Taranis X-Lite, X9 Lite), OpenTX V2.1+. The TBS Tracer Nano TX is suggested for use in Futaba and Spektrum remotes that do not have a JR-module bay

* output power modes may not be available due to local regulation limitations
DOWNLOADS

TBS Tracer Manual

TBS Agent M (new! online configurator and firmware update tool)

TBS Agent X (desktop configurator for software updates)
TBS Cloud - Wifi Firmware


Grab some Tracer NanoRX Receivers to go with it!

Are you using a Tango 2 (v2 or v3) and you need the Add-on Bay?


Want more Penetration?  Add Peter the Penetrator High Gain Antenna!











TBS is constantly evolving FPV, and while Crossfire has long been the king of long range and penetration, we had been begging for something faster.  Tracer is TBS's new 2.4GHz low latency protocol, with built in diversity, for an even faster link, capable of over 29km...but TBS isnt one to just sit on a new product, th

TBS Tracer Nano 2.4Ghz Transmitter Module from WREKD Co.

TBS Tracer Nano 2.4Ghz Transmitter Module

EMAX

EMAX Aeris Link Nano ELRS 2.4GHz Transmitter Module

The EMAX Aeris Link Nano Sized TX Module - ELRS, also known as the EMAX Aeris Link Micro, represents a paradigm shift in FPV flying, delivering an exceptional blend of innovation and performance.

EMAX Aeris Link Nano Sized TX Module - ELRS

NDAA Compliant products include parts and gear that adhere to the requirements outlined in Section 848 of the National Defense Authorization Act

NDAA Compliant Radio (Beta)

EMAX Aeris Link ELRS 2.4GHz Transmitter Module

The EMAX Aeris Link Full-Sized JR Bay Compatible TX Module - ELRS represents a paradigm shift in FPV flying, delivering an exceptional blend of innovation and performance.

EMAX Aeris Link Full Sized JR Bay Compatible TX Module - ELRS

Emax has entered the world of Express LRS products with its Aeris Link module. Available in both 915MHz or 2.4GHz for the best range and penetration! This module also features tons of output power and external power options, Choose Emax to feel confident in the skies using ELRS!
Check out all our ExpressLRS compatible gear, and our Emax Products!
Features

1000mW for 2.4GHZ ELRS

RGB fan displays battery level

OLED screen and joystick or LUA script friendly

2-5S operational voltages



Specifications

Module Bay Input Voltage: 5-12V

OLED Screen size: 1.29 &quot (Full size only)

OLED Screen resolution: 64 x 128 (Full size only)

Operating frequency: 2.4GHz ISM / 915MHz FCC

Output power: 10mW/25mW/50mW/100mW/250mW/500mW/1000mW

Refresh rate: 50Hz/100Hz/150Hz/250Hz/500Hz

Antennas: Moxon Directional Antenna (2.4GHz), RP-SMA connection

Configuration: Support signals of Crossfire Serial Data Protocol (CRSF) and OpenTX remote control

Interface: Type-C, JR interface

External Power: XT30 supporting 5-21V (2-5S) voltage input, 2S (8.4V) is recommended


Includes

1x Emax Aeris Link ELRS 2.4GHz Transmitter Module


Emax has entered the world of Express LRS products with its Aeris Link module. Available in both 915MHz or 2.4GHz for the best range and penetration! This module also features tons of output power and external power options, Choose Emax to feel confident in the skies using ELRS!  Check out all our ExpressLRS compatible

EMAX Aeris Link ELRS 2.4GHz Transmitter Module - Choose Version from WREKD Co.

EMAX Aeris Link ELRS 2.4GHz Transmitter Module - Choose Version

EMAX ELRSPrepare to experience FPV flying like never before with the revolutionary EMAX Aeris Link. This sophisticated open-source ELRS transmitter is meticulously designed to deliver unmatched performance and elevate your FPV adventures to new heights.USER FRIENDLYEquipped with a 1.29-inch OLED screen, the Aeris Link presents essential flight control with clarity and ease. The user-friendly interface empowers you to fine-tune settings and control your crafts in real-time, granting you complete control over your FPV experience.POWER REFINEDHarness the true potential of the EMAX Aeris Link&#39s transmission capabilities. From the ability to pick an output power of 10mW to the option to adjust up to a formidable 1000mW, you&#39ll achieve unparalleled range and signal stability. Conquer challenging terrains and explore uncharted skies with confidence.OPEN-SOURCEThe Aeris Link is engineered for versatility and ease of use. It supports Crossfire Serial Data Protocol...

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

EMAX Aeris Link 2.4GHz ExpressLRS Control System JR Module - RMRC

EMAX Aeris Link 2.4GHz ELRS Control System JR Module

EMAX Aeris Link 2.4GHz ExpressLRS Control System Nano Size - RMRC

EMAX Aeris Link 2.4GHz ELRS Control System Nano Size

Emax has entered the world of Express LRS products with its Aeris Link module. Available in both 915MHz or 2.4GHz for the best range and penetration! This module also features tons of output power and external power options, Choose Emax to feel confident in the skies using ELRS!
Check out all our ExpressLRS compatible gear, and our Emax Products!
Features

1000mW for 2.4GHZ ELRS

RGB fan displays battery level

OLED screen and joystick or LUA script friendly

2-5S operational voltages



Specifications

Module Bay Input Voltage: 5-12V

OLED Screen size: 1.29 " (Full size only)

OLED Screen resolution: 64 x 128 (Full size only)

Operating frequency: 2.4GHz ISM / 915MHz FCC

Output power: 10mW/25mW/50mW/100mW/250mW/500mW/1000mW

Refresh rate: 50Hz/100Hz/150Hz/250Hz/500Hz

Antennas: Moxon Directional Antenna (2.4GHz), RP-SMA connection

Configuration: Support signals of Crossfire Serial Data Protocol (CRSF) and OpenTX remote control

Interface: Type-C, JR interface

External Power: XT30 supporting 5-21V (2-5S) voltage input, 2S (8.4V) is recommended


Includes

1x Emax Aeris Link ELRS 2.4GHz Transmitter Module


iFlight

iFlight Commando 8 Lite Radio Transmitter - ELRS 2.4GHz

The iFlight Commando 8 Lite Radio Transmitter - ELRS is finally here, with fully integrated iFlight ExpressLRS hardware!

BetaFPV

BetaFPV 1W 2.4GHz ELRS Nano RC Transmitter Module V2

BETAFPV

The Nano TX V2 Module is packed with upgrades for an unrivaled pilot experience. Featuring the innovative T-LED antenna with its flicker frequency indicating signal transmitting and module connection statute. With up to 1W power, it empowers stable links for FPV racing, long-range flight, and professional photography. Seamlessly integrate with Backpack and customize buttons. Enjoy fluently flying with the 1804 cooling fan. Unleash your full potential with the Nano TX V2 Module.
Check out our ELRS gear, RC Transmitters and all our BetaFPV products!
Features

The First ever T-LED antenna with built-in LED display functionality, allowing pilots to effortlessly monitor the signal transmitting and receiving while using the radio transmitter.
2.4GHz with a maximum output power of 1W
Featuring an integrated TCXO, it minimizes frequency deviation for stable performance, eliminating signal interference.
With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance.
Support backpack and custom button functions based on ELRS V3.3, empowering pilots to connect external devices and set buttons according to personal usage habits.




Longer Range with Stable Link QualityNano TX V2 Module is built-in a TCXO (temperature-compensated crystal oscillator). With the high-quality TCXO, it can withstand extreme temperatures with no fear of heat and cold, continuously outputting accurate frequency for long-range flight. Click to learn more about the TCXO. ensuring a super stable yet strong radio link for pilots to fly in any environment that requires extremely stable signals and low latency, including long-range flights, multiplayer flights, and FPV racing. It gives pilots a robust and aggressive flight experience.

T-LED AntennaThe T-LED antenna innovatively integrates LED with the antenna, enabling direct information display on the antenna. When the antenna is successfully connected, the regular flickering indicates the status of signal transmission and reception. The light being on represents signal transmission, while the light being off represents signal reception. The speed of the flickering varies based on the telemetry ratio and packet rate, offering pilots a unique visual experience.

Additionally, it detects the connection status between the antenna and the TX module, preventing damage caused by incorrect usage. The flickering light irregularly during the antenna swinging indicates antenna damage, while flickering irregularly during turning the antenna connector indicates a loose connection in either the antenna or the TX module, requiring replacement.Note: This T-LED Antenna only lights up on the Nano TX V2 Module. Other antennas can also be used directly on the Nano TX V2 Module but the 2.4GHz version requires an RP-SMA to SMA adapter.
Cooling SystemThe Nano TX V2 features a fully injection-molded shell with excellent texture. With its optimized internal airflow channel and a heat sink, a high-speed 1804 cooling fan, it effectively dissipates heat even during high power output, ensuring stable link performance. Pilots can fly with confidence and enjoy reliable performance, thanks to this double-checked cooling solution.

Highly Customizable Solution Backpack, developed by the ExpressLRS team, is an optional module designed for radio transmitters. It provides enhanced flexibility and scalability, empowering pilots to connect external devices such as goggles, the Nano TX V2 Module offers a highly customizable and expandable solution for pilots' varied application scenarios and functional needs. There are two buttons reserved for pilots to customize their functions, empowering pilots to set buttons according to personal usage habits.

Combination with Most Radio TXThe Nano TX V2 Module could be configured via LUA script. EdgeTX V2.8.0 and OpenTX radio transmitter that supports CRSF could be used easily. It is available for popular Nano port TX like BETAFPV LiteRadio 3 Pro, Radiomaster Zorro/Pocket, Jumper T Pro V2/T20, TBS Tango 2, etc., and Radiomaster TX16, Boxer, and Jumper T16/T20, Frsky QX7, X9 when used with a Micro-Nano Module Adapter.

Note: LiteRadio 3 Pro Radio Transmitter cannot support 500mW due to power supply issues.
ELRS SeriesThe ExpressLRS Series expands its lineup with the addition of the Nano TX V2 Module. To achieve exceptional link quality. BETAFPV takes the flying experience to new heights by introducing ELRS links that offer long-range capabilities, low latency, and high refresh rates in a radio control system.

Basic ConfigurationIn the EdgeTX system, select "MODEL SEL" and enter the "SETUP" interface. In this interface, turn off Internal RF (set to "OFF"), turn on External RF, and set the output mode to CRSF. Connect the module correctly and then the module will function properly. Settings are shown below.

Lua is a lightweight and compact script language. It can be used by being embedded in radio transmitters and easily reading and modifying the parameter set of modules. The directions for using Lua are as below.

Download the elrsV3.lua on the BETAFPV official website or ExpressLRS configurator



Save the elrsV3.lua files onto the radio transmitter's SD Card in the Scripts/Tools folder
Press the "SYS" button or the "Menu" button on the EdgeTX system to access the "Tools" interface where you can choose "ExpressLRS" and run it
The below images show the Lua script if it runs successfully


Custom ButtonsThere are two buttons reserved for users to customize its functions. Operation steps are shown below.

Enter the WiFi mode by enabling the module or powering it on for 60 seconds
Once the RGB state indicator is in slow green flashing, the receiver's WiFi will be activated (WiFi name: ExpressLRS TX, password: expresslrs
Connect your phone or computer to WiFi, and log in to the browser at http://10.0.0.1. You will be able to find the custom button settings page
In the "Action" column, select the desired custom Function In the "Press" and "Count" columns, select the button press type and the number of presses or duration of the press
Click "Save" to complete the configuration

There are six settable shortcut buttons and two ways to use the buttons: long press and short press. The long press can be set to a custom time duration, while the short press can be set to a custom number of presses. Six settable functions are shown below.

Bind &amp External Power SupplyThe default firmware of the Nano TX V2 module is ExpressLRS version 3.3.0. There is no Binding Phrase pre-set. Hence Binding with transmitters has to ensure that the receiver is using V3.0.0 above with no binding phrase. Put the receiver into binding mode and wait for the connection.Quick press button 1(Left button) three times to enter the binding mode(factory default setting), or you can enter binding mode by clicking 'Bind' in the Lua script. if the Indicator has turned solid, it indicates that the device has been bound successfully.

Note: If the transmitter module has been reflashed with a binding phrase, then using the above binding method will not be bound to other devices. Please set the same binding phrase for the receiver to perform automatic binding.The power consumption of the Nano TX V2 module when using a transmission power of 500mW or above is relatively high, which will shorten the usage time of the remote control. Users can provide power to the module by using an XT30-USB adapter cable to connect to an external battery. The usage method is shown in the following figure.

The power consumption of the transmitter is not only related to the transmit power but also to the telemetry ratio. When using high power of 500mW and above, the return ratio can be set higher to reduce power consumption and extend use time.
For example, in Gemini mode, the power consumption of setting the return ratio to 1:128 is 1000mA, while the power consumption of setting the return ratio to 1:2 is only half of 1:128.


Note: When the voltage of the remote control battery or external battery is lower than 7V (2S) or 10.5V (3S), please do not use the 500mW and 1W, otherwise the module will be rebooted due to insufficient power supply, resulting in disconnection and loss of control.
Specifications

Item: BetaFPV 1 Watt ELRS Nano 2.4GHz RC Transmitter Module - V2
Weight: 28g
Color: White
Antenna Connector: RP-SMA(2.4GHz)
RF Power(2.4GHz): 25mW/50mW/100mW/250mW/500mW/1000mW
Packet Rate(2.4GHz): 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Frequency Band: 2.4GHz ISM
Backpack: Support
Input Voltage: 7V~13V DC
Power Consumption(2.4GHz): 8V,1000mA@1000mW, 150Hz，1:128
USB Port: Type-C
Fan Voltage: 5V
Default Firmware Version: ExpressLRS V3.3.0

Includes

1x BetaFPV 1 Watt ELRS Nano 2.4GHz RC Transmitter Module - V2


The Nano TX V2 Module is packed with upgrades for an unrivaled pilot experience. Featuring the innovative T-LED antenna with its flicker frequency indicating signal transmitting and module connection statute. With up to 1W power, it empowers stable links for FPV racing, long-range flight, and professional photography.

BetaFPV 1 Watt ELRS Nano 2.4GHz RC Transmitter Module - V2

The BETAFPV Nano TX V2 Module - ELRS 2.4GHz is packed with upgrades for an unrivaled pilot experience.

BETAFPV Nano TX V2 Module - ELRS 2.4GHz

TBS Tango 2 PRO FPV RC Radio Controller

REDEFINING THE REMOTE CONTROL TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork),

TBS Tango 2 Pro Crossfire Remote Transmitter Tx (V3 PCB Inside) - Tango II

TBS Tango 2 Crossfire Remote Transmitter Tx (V3 PCB Inside) - Tango II

WREKD is a family-owned & operated, leading online FPV super-store based in the United States specializing in FPV racing / freestyle / tiny / micro whoop drones, parts, gear, and accessories. We offer fast, domestic, same-day shipping with the quickest delivery to anywhere in the U.S.A.

TBS Tango 2 Pro Crossfire Remote Transmitter Tx (V3 PCB Inside) - Tango II from WREKD Co.

TBS Tango II is here! TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &amp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It&#39s not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

Get the TBS Tango II Pro shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

TBS Tango 2 Pro - Get Yours Today! - RMRC

TBS Tango II Pro - Crossfire

TBS Tango 2 Crossfire Remote Transmitter Tx (V3 PCB Inside) - Tango II from WREKD Co.

Fly High FPV


USA Only, no INTL Shipping offered due to contained LIPO.  (If you would like to inquire about INTL shipping, please shoot me a message, to see if it&#39s possible)

All Tango 2&#39s have v3 boards (1000mw) and V2 Gimbals, brand new right off the production line, with the current firmware 👌👍
REDEFINING THE REMOTE CONTROL

Team BlackSheep has been at the forefront of perfecting the interface between FPV drone and mind. The TBS Tango 2 changes how radio remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size hall gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &ampamp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It&#39s not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

CROSSFIRE INSIDE
The first radio with TBS Crossfire built in. This significantly lowers your cost, increases reliability and minimizes set up time. And the cherry on top are the LUA scripts being part of the familiar user interface. The antenna swivels out of the way, or doubles as a kick-stand when resting. TBS Cloud ready to go from the start. It all just makes sense.

FEATURES


Full size hall sensor gimbals
Ball-bearing

Configurable resistance and tension
Adjustable throttle &ampamp pitch throw (+/- 10 degrees)
Spare spring set included for lower tension
Foldable gimbal sticks (Pro only)


Ergonomic and compact design with comfy rubber grips
Robust, streamlined switches

2x 2-position switches
2x 3-position switches
2x momentary buttons


TBS Crossfire built-in

CRSFShot for lowest latency and most direct response of any remote control available
Range of up to 30km / 20mi from the palm of your hand
Swivel-antenna that doubles as a kick-stand
Up to 12 channels supported


Built-in 5000mAh 1S LiPo with USB-C 2A charging (2.5 hours for full charge)
Speech audio output with audio jack &ampamp haptic vibration alert
Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Rocker dial and 3 button menu for super simple navigation
High resolution (128*96) black &ampamp white OLED screen w/ backlight
Digital rocker dial trim
100+ model memory with included SD-card
TBS Cloud compatible

TBS TANGO 2 PRO INCLUDES


1 x Tango 2 Pro
1 x Velvet Carry Bag with TBS Logo
1 x Springs Set (Lower Tension)
2 x Throttle limitation screws (with allen key)
1 x Sticker Sheet
1 x Tango 2 3D KeyChain (will only be included in the first run)

MORE INFORMATION


Self-support (FAQ)
TBS Tango 2 Manual
TBS Tango 2 Manual - German
Lanyard mount 3D print download
FreedomTX source code

Tango2 SD Card Contents download (For Freedom TX 1.0X)

Tango2 SD Card Contents download (2020-04-03) (For Freedom TX 1.1X)

Tango 2 SD Card Contents donwload (For Freedom TX 1.2x)
TBS Cloud - Wifi Firmware
TBS Agent Lite




Need some upgrades?

How about TBS Crown Jewel Stick Ends

Or add a module bay to your Tango 2 so you can run a MultiProtocol Module or a Tracer NanoTX




USA Only, no INTL Shipping offered due to contained LIPO.  (If you would like to inquire about INTL shipping, please shoot me a message, to see if it's possible)   All Tango 2's have v3 boards (1000mw) and V2 Gimbals, brand new right off the production line, with the current firmware 👌👍 REDEFINING THE REMOTE CONTROL

TBS Tango 2 Pro from WREKD Co.

TBS Tango 2 Pro


REDEFINING THE REMOTE CONTROL

TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &amp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It's not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

CROSSFIRE INSIDE
The first radio with TBS Crossfire built in. This significantly lowers your cost, increases reliability and minimizes set up time. And the cherry on top are the LUA scripts being part of the familiar user interface. The antenna swivels out of the way, or doubles as a kick-stand when resting. TBS Cloud ready to go from the start. It all just makes sense.

FEATURES

Full size HAL sensor gimbals
Ball-bearing

Configurable resistance and tension
Adjustable throttle &amp pitch throw (+/- 10 degrees)
Spare spring set included for lower tension
Foldable gimbal sticks (Pro only)


Ergonomic and compact design with comfy rubber grips
Robust, streamlined switches

2x 2-position switches
2x 3-position switches
2x momentary buttons


TBS Crossfire built-in

CRSFShot for lowest latency and most direct response of any remote control available
Range of up to 30km / 20mi from the palm of your hand
Swivel-antenna that doubles as a kick-stand
Up to 12 channels supported


Built-in 5000mAh 1S LiPo with USB-C 2A charging (2.5 hours for full charge)
Speech audio output with audio jack &amp haptic vibration alert
Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Rocker dial and 3 button menu for super simple navigation
High resolution (128*96) black &amp white OLED screen w/ backlight
Digital rocker dial trim
100+ model memory with included SD-card
TBS Cloud compatible

TBS TANGO 2 PRO INCLUDES

1 x Tango 2 Pro
1 x Velvet Carry Bag with TBS Logo
1 x Springs Set ( Default and Lower Tension)
2 x Throttle limitation screws (with allen key)
1 x Sticker Sheet
1 x Tango 2 3D KeyChain (will only be included in the first run)

MORE INFORMATION

Self-support (FAQ)
TBS Tango 2 Manual



TBS TANGO 2 PRO | The perfect take-anywhere remote. Compact, robust and with TBS Crossfire built-in.

TBS TANGO 2 PRO | Team BlackSheep

The TBS Tango 2 PRO comes with full-size&nbspfolding HAL sensor gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, and more!

The TBS Tango 2 PRO comes with full-size folding HAL sensor gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, and more!


The TBS Tango 2 PRO comes with full-size folding HAL sensor gimbals full-featured FreedomTX (temporary OpenTX fork) the lowest end-to-end latency of any remote and transmission system and more!   Redefining The Remote Control TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tang

TBS Tango 2 PRO FPV RC Radio Controller （new version）

TBS Tango 2 FPV RC Radio Controller

The TBS Tango 2 comes with full-size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, and more!

TBS Tango 2 is here! TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &amp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It&#39s not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

TBS Tango 2 Standard - Get Yours Today! - RMRC

TBS Tango II Standard - Crossfire


REDEFINING THE REMOTE CONTROL

TBS has been at the forefront of perfecting the interface between drone and mind. The TBS Tango 2 changes how remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAL gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &amp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It's not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

CROSSFIRE INSIDE
The first radio with TBS Crossfire built in. This significantly lowers your cost, increases reliability and minimizes set up time. And the cherry on top are the LUA scripts being part of the familiar user interface. The antenna swivels out of the way, or doubles as a kick-stand when resting. TBS Cloud ready to go from the start. It all just makes sense.

FEATURES

Full size HAL sensor gimbals
Ball-bearing

Configurable resistance and tension
Adjustable throttle &amp pitch throw (+/- 10 degrees)
Spare spring set included for lower tension
Foldable gimbal sticks (Pro only)


Ergonomic and compact design with comfy rubber grips
Robust, streamlined switches

2x 2-position switches
2x 3-position switches
2x momentary buttons


TBS Crossfire built-in

CRSFShot for lowest latency and most direct response of any remote control available
Range of up to 30km / 20mi from the palm of your hand
Swivel-antenna that doubles as a kick-stand
Up to 12 channels supported


Built-in 5000mAh 1S LiPo with USB-C 2A charging (2.5 hours for full charge)
Speech audio output with audio jack &amp haptic vibration alert
Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Rocker dial and 3 button menu for super simple navigation
High resolution (128*96) black &amp white OLED screen w/ backlight
Digital rocker dial trim
100+ model memory with included SD-card
TBS Cloud compatible

TBS TANGO 2 INCLUDES

1 x Tango 2 remote
1 x Springs Set (Lower Tension)
1 x Tango 2 Neck Strap Mount

MORE INFORMATION


TBS Agent M (new! configurator and firmware update tool)
Self-support (FAQ)
TBS Tango 2 Manual
TBS Tango 2 Manual - German
Lanyard mount 3D print download
FreedomTX source code

Tango2 SD Card Contents download (For Freedom TX 1.0X)

Tango2 SD Card Contents download (2020-04-03) (For Freedom TX 1.1X)

Tango 2 SD Card Contents download (For Freedom TX 1.2x)
TBS Cloud - Wifi Firmware
Tango 2 JR Module Adapter - by cuxx
Tango 2 Module Bay Protector XJT mini by cuxx
TBS Agent Lite





TBS Tango 2





USA Only, and Canada only, no other INTL Shipping offered due to contained LIPO.  (If you would like to inquire about INTL shipping, please shoot me a message, to see if it&#39s possible)


All Tango 2&#39s have v3 boards (1000mw) and V2 Gimbals, brand new right off the production line, with the current firmware 👌👍
REDEFINING THE REMOTE CONTROL

Team BlackSheep has been at the forefront of perfecting the interface between FPV drone and mind. The TBS Tango 2 changes how radio remote controls will be from here on out! Despite being the smallest remote control available, it comes with full size HAll gimbals, full-featured FreedomTX (temporary OpenTX fork), the lowest end-to-end latency of any remote and transmission system, unbreakable 3 &ampamp 2-position switches, open source operating system, built-in battery, USB-C charging, and so much more! It&#39s not just a retouched game controller, it was designed from the ground up for R/C! The form factor and features make it the ideal take-anywhere, fly-anytime remote control.

CROSSFIRE INSIDE

The first radio with TBS Crossfire built in. This significantly lowers your cost, increases reliability and minimizes set up time. And the cherry on top are the LUA scripts being part of the familiar user interface. The antenna swivels out of the way, or doubles as a kick-stand when resting. TBS Cloud ready to go from the start. It all just makes sense.





FEATURES


Full size HAll sensor gimbals
Ball-bearing

Configurable resistance and tension
Adjustable throttle &ampamp pitch throw (+/- 10 degrees)
Spare spring set included for lower tension
Foldable gimbal sticks (Pro only)


Ergonomic and compact design with comfy rubber grips
Robust, streamlined switches

2x 2-position switches
2x 3-position switches
2x momentary buttons


TBS Crossfire built-in

CRSFShot for lowest latency and most direct response of any remote control available
Range of up to 30km / 20mi from the palm of your hand
Swivel-antenna that doubles as a kick-stand
Up to 12 channels supported


Built-in 5000mAh 1S LiPo with USB-C 2A charging (2.5 hours for full charge)
Speech audio output with audio jack &ampamp haptic vibration alert
Open Source remote control operating system (FreedomTX, temporary fork of OpenTX)
Rocker dial and 3 button menu for super simple navigation
High resolution (128*96) black &ampamp white OLED screen w/ backlight
Digital rocker dial trim
100+ model memory with included SD-card
TBS Cloud compatible

TBS TANGO 2 INCLUDES

1 x Tango 2 remote
1 x Springs Set (Lower Tension)

MORE INFORMATION


TBS Agent M (new! configurator and firmware update tool)
Self-support (FAQ)
TBS Tango 2 Manual
TBS Tango 2 Manual - German
Lanyard mount 3D print download
FreedomTX source code

Tango2 SD Card Contents download (For Freedom TX 1.0X)

Tango2 SD Card Contents download (2020-04-03) (For Freedom TX 1.1X)

Tango 2 SD Card Contents download (For Freedom TX 1.2x &ampamp 1.3x)
TBS Cloud - Wifi Firmware
Tango 2 JR Module Adapter - by cuxx
Tango 2 Module Bay Protector XJT mini by cuxx
TBS Agent Lite




Need some upgrades?

How about TBS Crown Jewel Stick Ends

Or add a module bay to your Tango 2 so you can run a MultiProtocol Module or a Tracer NanoTX




USA Only, and Canada only, no other INTL Shipping offered due to contained LIPO.  (If you would like to inquire about INTL shipping, please shoot me a message, to see if it's possible)   All Tango 2's have v3 boards (1000mw) and V2 Gimbals, brand new right off the production line, with the current firmware 👌👍 REDEFININ

TBS Tango 2 from WREKD Co.

BetaFPV LiteRadio 3 Pro RC Transmitter

The LiteRadio 3 Pro Radio Transmitter is an open-source radio remote control that supports the EdgeTX system. It comes with the hall gimbals, featuring four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel. The OLED display screen on the top of the transmitter brings visually instant data and a controlling interface to users. What's more, an alternative external nano TX module make it a multi-protocol transmitter.
Check out our RC Transmitters and all our BetaFPV products!

Features

Hall gimbals features four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel.
Built-in 2000mAh 1S battery, LiteRadio 3 Pro can work up to 15 hours without an external module, bringing an excellent endurance performance.
A 1.3-inch OLED display screen is newly installed. Controlled by two 5D buttons and settings are easy to be adjusted directly from the display screen.
There is also a nano bay for an external TX module, it supports many popular modules in the market and meets all the protocols such as MULTI, CRSF, PPM, XJT, DSM2, R9M, etc.

Specifications

Channels: 8
Gimbals: Hall Sensor
Frequency Range: 2.4GHz
Antenna: Internal Antenna
RF Output Power: 50mW, 100mW, 250mW (ELRS 2.4G) / 100mW CC2500
Screen: 1.3 inch OLED display screen
Protocol: ExpressLRS 2.4G or CC2500
Battery: Built-in 2000mAh 1S Battery
Operating system: EdgeTX
Port: Type-C USB 3.0 port / 3.5mm Audio port
USB Support: Most Practice Simulator / USB charging / Firmware update / Passthrough (ELRS 2.4G)

Includes

1x BetaFPV LiteRadio 3 Pro RC Transmitter
1x User Manual

2x Joystick Protective Covers


The LiteRadio 3 Pro Radio Transmitter is an open-source radio remote control that supports the EdgeTX system. It comes with the hall gimbals, featuring four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel. The OLED display screen on the top of the transmitter brings visu

BetaFPV LiteRadio 3 Pro RC Transmitter - Choose Version

The LiteRadio 3 Pro Radio Transmitter is an open-source radio remote control that supports the EdgeTX system. It comes with the hall gimbals, featuring four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel. The OLED display screen on the top of the transmitter brings visually instant data and a controlling interface to users. What&#39s more, an alternative external nano TX module make it a multi-protocol transmitter.
Check out our RC Transmitters and all our BetaFPV products!

Features

Hall gimbals features four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel.
Built-in 2000mAh 1S battery, LiteRadio 3 Pro can work up to 15 hours without an external module, bringing an excellent endurance performance.
A 1.3-inch OLED display screen is newly installed. Controlled by two 5D buttons and settings are easy to be adjusted directly from the display screen.
There is also a nano bay for an external TX module, it supports many popular modules in the market and meets all the protocols such as MULTI, CRSF, PPM, XJT, DSM2, R9M, etc.

Specifications

Channels: 8
Gimbals: Hall Sensor
Frequency Range: 2.4GHz
Antenna: Internal Antenna
RF Output Power: 50mW, 100mW, 250mW (ELRS 2.4G) / 100mW CC2500
Screen: 1.3 inch OLED display screen
Protocol: ExpressLRS 2.4G or CC2500
Battery: Built-in 2000mAh 1S Battery
Operating system: EdgeTX
Port: Type-C USB 3.0 port / 3.5mm Audio port
USB Support: Most Practice Simulator / USB charging / Firmware update / Passthrough (ELRS 2.4G)

Includes

1x BetaFPV LiteRadio 3 Pro RC Transmitter
1x User Manual

2x Joystick Protective Covers


BetaFPV LiteRadio 3 Pro RC Transmitter - Choose Version from WREKD Co.

LiteRadio 3 Pro Radio Transmitter—An open-source radio remote control that supports the EdgeTX system. It comes with the hall gimbals, featuring four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel. The OLED display screen on the top of the transmitter brings visually instant data and a controlling interface to users. What's more, two optional internal RF systems and alternative external nano TX module make it a multi-protocol transmitter.


LiteRadio Collections
Literadio 3 Pro radio transmitter is greatly enhanced its internal ELRS module output power up to 250mW, which enables LiteRadio 3 Pro to excellently adapt its controlling range. Reserving a nano bay for an external TX module, it supports many popular modules in the market and meets all the protocols such as MULTI, CRSF, PPM, XJT, DSM2, R9M, etc. Besides, the OLED display screen and operating system are newly added to it for better usability.




LiteRadio 3 Pro
LiteRadio 3
LiteRadio 2 SE


Gimbal Sensor

Hall
Potentiometer (Hall replaceable)



RF Output Power


50mW, 100mW, 250mW (ELRS)
100mW (CC2500)


≤100mW


≤100mW



RF System
CC2500 / SX1281

CC2500 / SX1280
CC2500 / SX1280


Battery
2000mAh 1S
2000mAh 1S
1000mAh 1S


External TX Module Protocol
MULTI, CRSF, PPM, XJT, DSM2, R9M, etc
CRSF
Not support


Display Screen
1.3-inch
Not support
Not support


Operating System
EdgeTX
LiteRadio System



Note: When setting the ELRS version power to 500 mW, there might be a danger of packet loss at high temperatures. Please be careful using it.

Bullet Point

LiteRadio 3 Pro is a new milestone for LiteRadio Series so far. It is an open-source radio transmitter with the EdgeTX system. Therefore, you can try your best to customize it with the EdgeTx system.
Hall gimbal features four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel.

Built-in 2000mAh 1S battery, LiteRadio 3 Pro can work up to 15 hours without an external module, bringing an excellent endurance performance.
A 1.3-inch OLED display screen is newly installed. Controlled by two 5D buttons and settings are easy to be adjusted directly from the display screen.
Internal ELRS TX module up to 250mW output power enables LiteRadio 3 Pro to excellently adapt its controlling range.

Reserving a nano bay for an external TX module, it supports many popular modules in the market and meets all the protocols such as MULTI, CRSF, PPM, XJT, DSM2, R9M, etc. Highly recommend BETAFPV ELRS Nano TX Module and other brands of nano TX modules are also available.
ExpressLRS 2.4G and CC2500 protocol options. The CC2500 supports Corona, Hitec, Futaba S-FHSS, Frsky D, X, RadioLink, Graupner HoTT, etc protocols.


Specification

Item: LiteRadio 3 Pro Radio Transmitter
Channel: 8 Channels
Gimbal: Hall Sensor
Frequency Range: 2.4G
RF System: SX1280 / CC2500
Antenna: Internal Antenna
RF Output Power: 50mW, 100mW, 250mW (ELRS 2.4G) / 100mW (CC2500)
Screen: 1.3 inch OLED display screen
Protocol Option: ExpressLRS 2.4G / CC2500 (Frsky D, Frsky X, SFHSS)
Battery: Built-in 2000mAh 1S Battery
Operating system: EdgeTX
Port: Type-C USB 3.0 port / 3.5mm Audio port
USB Support: Most Practice Simulator / USB charging / Firmware update / Passthrough (ELRS 2.4G)

Recommend External TX Module: ELRS Nano TX Module

Recommend Accessories: Nano Gimbal for LiteRadio 3 Pro, Storage Case, Transmitter Neck Strap



EdgeTX Official Supported
LiteRadio 3 Pro Radio Transmitter—An open-source radio remote control that supports the EdgeTX system, which is an open-source firmware for RC radio transmitters. The firmware is highly configurable and brings much more features than traditional radios. Therefore, you can try your best to customize LiteRadio 3 Pro such as language, voice and etc with the EdgeTX system.

Note: Please click here to know more about EdgeTX operating system.
OLED Display Screen
OLED display screen with two 5D buttons is newly added to LiteRadio 3 Pro radio transmitter. Users can adjust the TX settings such as switching internal/external modules, gimbal calibration and binding on the screen by controlling 5D buttons. Compared with LiteRadio 3, it is easier to adjust such settings and very friendly to a new player.

EdgeTX Passthrough for ELRS Upgrade
With EdgeTX operating system, flashing ExpressLRS internal TX modules is easier for everyone. First, there is no need to disassemble the case. Compared with upgrading by WIFI, it is more convenient, fast, and stable to flash ELRS internal TX firmware by using EdgeTX passthrough flashing.
Note: Please click here to know the upgrading steps. The passthrough is only used for ELRS 2.4G version. Currently, BETAFPV is actively communicating with the ExpressLRS official team on the latest ExpressLRS configurator to support flashing LiteRadio 3 Pro ELRS TX firmware.


External TX Module
Nano module bay enables the external TX module available. LiteRadio 3 Pro reaches a high level with its capability to support multi-brand external TX modules in the market for different protocols such as MULTI, CRSF, PPM, XJT, DSM2, and R9M, etc. BETAFPV ELRS Nano TX Module, which features a high refresh rate, ultra-low latency, and long-range, is strongly recommended for LiteRadio 3 Pro.
Note: If you are ready to install the TBS external nano module, the TBS nano module case size should be 64*42*25mm, the thicker one of the retrofit cases.

Hall Gimbal
Features four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel. With an adjustable stick end, it perfectly fits thumbs and greatly improves the stick feel for the control. Hall Effect provides contactless sensing for not only accurate control inputs and precise centering but also durable use.


Diagram of LiteRadio 3 Pro
Top view

Front view

Back view

Below is the diagram of LiteRadio 3 Pro.

Power button: Long press to turn on/off
Bootloader Button: Turn off the radio transmitter. Press the Bootloader button and Power button simultaneously. Releasing the two buttons at the same time will enter the Bootloader interface.
Black Toggle Switches: Toggle to activate the trimming function of the remote control joystick.
Left 5-D Button: Toggle the button up/down/left/right to trim the joystick. Press the button to exit/return.
Right 5-D Button: Toggle the button up/down/left/right to select and move. Press the button to confirm/enter.


Switching Protocol and Binding
Radio transmitter settings and binding for ELRS 2.4G version are shown below. Please turn on Internal and External RF protocol at the same time when using the internal ELRS TX module. (With ExperssLRS 2.4G sticker on the Nano module bay.)

Set External RF mode on OFF.
Turn on Internal RF and select CRSF mode.




Binding: Enter the ExpressLRS.lua interface, and select Bind to complete linking.


Radio transmitter settings and binding for CC2500 version are shown below. (With CC2500 sticker on the Nano module bay.)

Turn off External RF
Turn on Internal RF and select the corresponding protocol under MULTI mode.




Binding: Select Bind to complete linking on the interface.


Radio transmitter settings are shown below when installing and using the external TX module.

Turn off Internal RF.
Turn on External RF.
Select the correct protocol type based on the external TX module.



Binding: Please refer to the corresponding manual according to the external TX module.



Gimbal Calibration

Enter calibration mode




Complete the calibration with prompts



Note: Please do not move the joysticks too hard during the calibration process, otherwise, calibration accuracy will be affected. Please move the joysticks slightly during the calibration process.

Exit calibration mode


Firmware Upgrade
WiFi upgrading for ELRS is shown below.

Enter ELRSV2.lua interface
Select WiFi Connectivity
Connect WiFi via computer or mobile phone
WiFi Name: ExpressLRS TX
WiFi PWD: expresslrs
Upgrade firmware on ExpressLRS official site

EdgeTX Passthrough flashing for ELRS.
Now ExpressLRS official firmware V2.5.0 is released and supports BETAFPV LiteRadio 3 Pro radio transmitter. You can download it for flashing.
Firmware: https://github.com/ExpressLRS/ExpressLRS/releases/tag/2.5.0
ExpressLRS Configurator: https://github.com/ExpressLRS/ExpressLRS-Configurator/releases/tag/v1.4.1
Recommended Parts
We highly recommend buying LiteRadio 3 Pro Radio Transmitter with the parts listed below.

External TX Module: ELRS Nano TX Module

Strap: BETAFPV LiteRadio Transmitter Neck Strap

Gimbal: Nano Gimbal for Lite Radio 3 Pro

Storage case: BETAFPV Storage Case for LiteRadio 3 Pro





FAQ
Download the manual for LiteRadio 3 Pro radio transmitter.
Package

1 * LiteRadio 3 Pro Radio Transmitter
1 * User Manual

2 * Joystick Protective Covers
1 * USB Type-C Cable




LiteRadio 3 Pro Radio Transmitter—An open-source radio remote control that supports the EdgeTX system. It comes with the hall gimbals, featuring four precision bearings, adjustable spring tension, and ergonomic stick ends for an unparalleled feel. The OLED display screen on the top of the transmitter brings visually in

LiteRadio 3 Pro Radio Transmitter

The&nbspBetaFPV&nbsp LiteRadio 3 Pro Radio Transmitter&nbspis an&nbspopen-source radio remote control that supports the EdgeTX system.

The BetaFPV  LiteRadio 3 Pro Radio Transmitter is an open-source radio remote control that supports the EdgeTX system.

BetaFPV LiteRadio 3 Pro Radio Transmitter - ELRS (Supports External Nano TX Module)

BetaFPV LiteRadio 2 SE 2.4GHz RC Transmitter

All products with batteries must be shipped by a ground shipping method.
After the latest round of beta testing, the LiteRadio 2 SE is back to the market with huge improvements. This pint size FRSKY radio is powered by OpenTX firmware and can toggle between FRSKY D16 and D8 protocols. Real gimbals provide the tactile feedback of a pricier radio and USB connectivity can be used to play FPV simulators on a computer. The LiteRadio 2 SE is a great option for anyone looking for a lower cost radio with some great features.
Some new improvements include...

Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours.
Updates with BETAFPV self-developed LiteRadio System. Pilots can directly operate the Joystick Calibration and Upgrade Firmware on the radio transmitter.
Supports Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode via the radio transmitter.
Comes with 100mW transmitting power, LiteRadio 2 SE brings a wider operating range.

Check out our RC Transmitters, our FrSky Products, and all our BetaFPV products!
This radio does not support newer FrSky receiver firmware.
Features

LiteRadio 2 SE upgrades with BETAFPV self-developed Customized LiteRadio System. Pilots can directly operate the Joystick Calibration and Firmware Update on the radio transmitter, which is more convenient for the beginner racer to operate.
Equipped with a built-in 1000 mAh 1S battery, LiteRadio 2 SE can use up to 8 hours, bringing an excellent endurance performance.
Comes with a built-in charging module, LiteRadio 2 SE can support USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. While it needs to be re-charged, the blue light will flash slowly.
Compared with the LiteRadio 2, LiteRadio 2 SE has a larger transmitting power which can reach 100mW, bringing a wider operating range.
Adopted the rubber coat, LiteRadio 2 SE is ergonomic and has the shape of a gaming controller. It's comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.
This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulators like EREADRONE.

Specifications

Frequency Range: 2.4GHz (2403MHz-2447MHz)
2.4G System: NRF24L01 or CC2500
Channel: 8
Support Protocol: Bayang / Futaba S-FHSS / Frsky D16 FCC/ Frsky D16 LBT/ Frsky D8
Power: ≤100mw
Adapted Drone Type: Multirotor
Support USB Charging / Firmware Update
Support BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: Built-in 1000mAh 1S Battery
Charging Connector: Type-C

Includes

1x BetaFPV LiteRadio 2 SE RC Transmitter 2.4GHz - FRSKY D8/D16





All products with batteries must be shipped by a ground shipping method. After the latest round of beta testing, the LiteRadio 2 SE is back to the market with huge improvements. This pint size FRSKY radio is powered by OpenTX firmware and can toggle between FRSKY D16 and D8 protocols. Real gimbals provide the tactile f

BetaFPV LiteRadio 2 SE RC Transmitter 2.4GHz - FRSKY D8/D16

Popular FRSKY D8/D16 radio link protocol version is available for option now. Besides, this version supports BETAFPV Configurator which is a utility disigned to simply updating, configuring and tuning the radio controller. Check out all our Radios and the rest of our BetaFPV Products! LiteRadio 2 SE Radio Transmitter i

After the latest round of 'beta' testing, the LiteRadio 2 is back on the market with huge improvements from the original version! Note - this version stocked by GetFPV supports Frsky D16 FCC, Frsky D16 LBT, Frsky D8, and Futaba S-FHSS. The FrSky protocols are V1.

After the latest round of 'beta' testing, the LiteRadio 2 is back on the market with huge improvements from the original version! Note - this version stocked by GetFPV supports Frsky D16 FCC, Frsky D16 LBT, Frsky D8, and Futaba S-FHSS. The FrSky prot

BETAFPV LiteRadio 2 SE Radio Transmitter - FrSky

All products with batteries must be shipped by a ground shipping method.
After the latest round of beta testing, the LiteRadio 2 SE is back to the market with huge improvements. This pint size FRSKY radio is powered by OpenTX firmware and can toggle between FRSKY D16 and D8 protocols. Real gimbals provide the tactile feedback of a pricier radio and USB connectivity can be used to play FPV simulators on a computer. The LiteRadio 2 SE is a great option for anyone looking for a lower cost radio with some great features.
Some new improvements include...

Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours.
Updates with BETAFPV self-developed LiteRadio System. Pilots can directly operate the Joystick Calibration and Upgrade Firmware on the radio transmitter.
Supports Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode via the radio transmitter.
Comes with 100mW transmitting power, LiteRadio 2 SE brings a wider operating range.

Check out our RC Transmitters, our FrSky Products, and all our BetaFPV products!
This radio does not support newer FrSky receiver firmware.
Features

LiteRadio 2 SE upgrades with BETAFPV self-developed Customized LiteRadio System. Pilots can directly operate the Joystick Calibration and Firmware Update on the radio transmitter, which is more convenient for the beginner racer to operate.
Equipped with a built-in 1000 mAh 1S battery, LiteRadio 2 SE can use up to 8 hours, bringing an excellent endurance performance.
Comes with a built-in charging module, LiteRadio 2 SE can support USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. While it needs to be re-charged, the blue light will flash slowly.
Compared with the LiteRadio 2, LiteRadio 2 SE has a larger transmitting power which can reach 100mW, bringing a wider operating range.
Adopted the rubber coat, LiteRadio 2 SE is ergonomic and has the shape of a gaming controller. It&#39s comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.
This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulators like EREADRONE.

Specifications

Frequency Range: 2.4GHz (2403MHz-2447MHz)
2.4G System: NRF24L01 or CC2500
Channel: 8
Support Protocol: Bayang / Futaba S-FHSS / Frsky D16 FCC/ Frsky D16 LBT/ Frsky D8
Power: ≤100mw
Adapted Drone Type: Multirotor
Support USB Charging / Firmware Update
Support BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: Built-in 1000mAh 1S Battery
Charging Connector: Type-C

Includes

1x BetaFPV LiteRadio 2 SE RC Transmitter 2.4GHz - FRSKY D8/D16





BetaFPV LiteRadio 2 SE RC Transmitter 2.4GHz - FRSKY D8/D16 from WREKD Co.

We are glad to announce that a batch of LiteRadio 2 transmitters is restocked now. Limited stocks, first come first served.After the latest round of beta tests, LiteRadio 2 is back to the market with huge improvements based on the original version.

Supports Frsky protocol, easily change Frsky D8, Frsky D16 FCC and Frsky D16 LBT mode (The default version is Frsky D16 FCC)
Built-in charging module, support USB charging

Adopted the rubber coat and add weight, makes it more ergonomic

Add vibration motor, provide a vibrating prompt

Redesign the power button, make it crystal clear and better for the LED indication


Mainboard for LiteRadio 2 owner replacement.
Special thanks for the review of UAVfutures, it is a great help for fans to make the right value choices.



Bullet Point

Designed for FPV racing starters, and supports Bayang protocol and Frsky protocol (D16/ D8)
LiteRadio 2 is powered by OpenTX firmware. Totally 8 channels and has a hobby-grade gimbal.
This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulator like EREADRONE
The trainer function is available for this LiteRadio 2 transmitter. It is useful for FPV racing student in training
LiteRadio 2 transmitter runs the OpenTX 2.2.4 firmware. OpenTX comes with a computer-based graphical user interface, OpenTX Companion. Pilots could use OpenTX Companion is trim the gimbal central value
With the hobby-grade gimbal and adopted the rubber coat, makes it more ergonomic


Specification

Item: LiteRadio 2
Frequency Range: 2.4G (2403MHz-2447MHz)

2.4G System: NRF24L01 or CC2500

Channel: 8
System: Bayang Protocol / Frsky Protocol

Power: ≤80mw
Adapted Drone Type: Multirotor
Support USB Charging
Support FPV Simulator Connected

Output: PPM, support Student Radio Mode
LED Light: Green-Power On / Red-Warning / Blue-Normal
Battery: 350mAh 2S Battery

Weight: 227.4g (with battery)


How to change the protocol (D16/D8 Version)
To change FrSky protocols (FCC D16, EU D16, or D8), you first have to power it off, then press and hold the bind button while you power it back on. Then it will flash the code to indicate which protocol it is on.




LED Status
Protocol Version


Flash Once
Frsky D16 FCC


Flash Twice

Frsky D16 LBT


Flash Three Times

Frsky D8




LiteRadio 2 Guide
Manual for LiteRadio 2 Radio Transmitter LiteRadio Configuration - OpenTX Companion Setup E.G. #1 - Trim the Gimbal Central Value Watch the following video to learn about how to use your LiteRadio 2

LiteRadio 2 Advanced Modifications
Special thanks to Dirk Gausmann who provided this foldable screen idea to help fans make their own monitor, it supports to add any module like R9M Lite Module or crossfire module. If you are interested, please check the link to know the specific steps to make your own advanced LiteRadio 2.

Diagram of LiteRadio 2


Package


1 * LiteRadio 2 Radio Transmitter

1 * 350mAh 2S Battery





We are glad to announce that a batch of LiteRadio 2 transmitters is restocked now. Limited stocks, first come first served.After the latest round of beta tests, LiteRadio 2 is back to the market with huge improvements based on the original version. Supports Frsky protocol, easily change Frsky D8, Frsky D16 FCC and Frsk

LiteRadio 2 Radio Transmitter

Popular ExpressLRS 2.4G raido link protocol version is available for option now. Besides, this version supports BETAFPV Configurator which is a utility disigned to simply updating, configuring and tuning the radio controller.
The current factory default firmware is ELRS V2, and it can be upgraded to the beta version of ELRS V3 firmware. For detailed instructions, please visit: link to the update guide.We welcome valuable test suggestions from our customers. As a token of our gratitude, we will select some customers to receive small gifts. Please fill out the test questionnaire using the following link: link to the questionnaire.

Main board for LiteRadio 2/LiteRadio 2 SE owner replacement.
Gimbal for LiteRadio 2 SE owner replacement.
Download the BETAFPV Configurtor.
LiteRadio 2 SE Radio Transmitter is the upgraded version based on LiteRadio 2 and comes with huge improvements.

Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours.
Updates with BETAFPV self-developed LiteRadio System. Pilots can directly operate the Joystick Calibration and Upgrade Firmware on the radio transmitter.
Supports the Frsky / Futaba / Bayang, pilots can easily change Futaba, Frsky D8, Frsky FCC D16, and Frsky LBT D16 mode via the radio transmitter.
Comes with 100mW transmitting power, LiteRadio 2 SE brings a wider operating range.

Please kindly note: D16 (FCC&ampLBT) protocol currently does not support the Frsky receivers with ACCST 2.0 firmware or higher, and it can only bind with ACCST 1.X firmware version XM+ receivers.



Bullet Point

LiteRadio 2 SE upgrades with BETAFPV self-developed Customized LiteRadio System. Pilots can directly operate the Joystick Calibration and Firmware Update on the radio transmitter, which is more convenient for the beginner racer to operate.
Equipped with a built-in 1000 mAh 1S battery, LiteRadio 2 SE can use up to 8 hours, bringing an excellent endurance performance.
Comes with a built-in charging module, LiteRadio 2 SE can support USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. While it needs to be re-charged(when the voltage is lower than 3.5V), the LED will turn red first, then it will turn blue and flash slowly.
Compared with the LiteRadio 2, LiteRadio 2 SE has a larger transmitting power that can reach 100mW, bringing a wider operating range.
Adopted the rubber coat, LiteRadio 2 SE is ergonomic and has the shape of a gaming controller. It's comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.
This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulators like EREADRONE.
LiteRadio 2 SE transmitter has been equipped on the Ready-to-Fly FPV whoop racing advanced kit 2 and FPV whoop racing starter kit 2. It is one of the easiest ways to get into the FPV hobby.



Specification

Item: LiteRadio 2 SE
Color: White
Frequency Range: 2.4G (2403MHz-2447MHz)

2.4G System: NRF24L01 / CC2500 / SX1280

Channel: 8
Support Protocol: Bayang / Futaba S-FHSS / Frsky FCC D16/ Frsky LBT D16 / Frsky D8 / ExpressLRS 2.4G
Power: ≤100mw
Adapted Drone Type: Multirotor
Support USB Charging / Firmware Update

Support BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
LED Light: Green-Power On / Red-Warning if the voltage is lower than 3.5V / Blue-Normal
Battery: Built-in 1000mAh 1S Battery
Charging Connector: USB 3.0 Type-C

BETAFPV Configurator
BETAFPV Configurator is utility designed to simplify updating, configuring and tuning the radio transmitter.

Download address: https://github.com/BETAFPV/BETAFPV_Configurator/releases
Function of BETAFPV Configurator is list below.

Basic radio controller setup, like mode switch, turn on/off RF modules.
Full function of the ExpressLRS configuration, like outpower, packet rate etc.
Channel mixer for fix wing drones.
Firmware update.



Only the radio controller ExpressLRS 2.4G and Frsky 2.0 version support BETAFPV Configurator nowadays. we will upgrade to ELRS V3.0. as soon as possible.
How to recognise if your radio transmitter supports the BETAFPV Configurator?Remove the cover on the back of the transmitter and there is a label, comes with "BETAFPV Configurator Supported".
DO NOT power on the transmitter first and connect it to the PC. The USB port is invalid in this situation.
How to switch the protocol

To change protocols (Frsky FCC D16, Frsky LBT D16, Frsky D8, or Futaba S-FHSS), you have to power it off first, then press and hold the bind button while you power it back on. After that, the flash times of the red LED before buzzer alarms will change, and it will indicate which protocol it is on.





LED Status
Protocol Version


Flash Once

Frsky FCC D16
(Only supports ACCST 1.X version)



Flash Twice

Frsky LBT D16
(Only supports ACCST 1.X version)



Flash Three Times

Frsky D8


Flash Four Times
Futaba S-FHSS




Diagram of LiteRadio 2 SE




FAQ

Manual for LiteRadio 2 SE Radio Transmitter
How to replace the gimbals of Literadio 2 SE？

BETAFPV V2.0.X firmware for Literadio 2 SE. The V2.0.1 version for ELRS supports adjustable joystick dead zone.

For any questions about joystick calibration of the Literadio 2 SE transmitter, please watch the following videos to know more.


Package

1 * LiteRadio 2 SE Radio Transmitter
1 * User Manual

1 * USB Type-C Cable




Popular ExpressLRS 2.4G raido link protocol version is available for option now. Besides, this version supports BETAFPV Configurator which is a utility disigned to simply updating, configuring and tuning the radio controller. The current factory default firmware is ELRS V2, and it can be upgraded to the beta version of

LiteRadio 2 SE Radio Transmitter

BetaFPV Lite Radio 3 2.4GHz RC Transmitter

All products with batteries must be shipped by a ground shipping method.
The Beta FPV ﻿LiteRadio 3 Radio Transmitter is the newest remote control in the LiteRadio series. This transmitter features an ergonomically designed handle and has superb performance in its working time and newly updated gimbals. Besides, this version supports BETAFPV Configurator which is a utility designed to simply update, configure, and tune the radio controller.
Check out our RC Transmitters and all our BetaFPV products!

Features

8 channels in total
USB Joystick support for most practice simulators
Nano module bay for external TX module
Newly designed joystick gimbal for longer usage life
Support BETAFPV Configurator for updating, configuring, and tuning
Built-in 2000mAh battery and USB charge supported

Specifications

Frequency Range: 2.4GHz

Channels: 8
Support Protocol: Futaba S-FHSS/Frsky FCC D16/Frsky LBT D16/Frsky D8 or ExpressLRS 2.4G

Power: ELRS version 25mW/50mW/100mW, Frsky version 100mW
Support USB Charging / Firmware Update: Yes
LED Light: Green-Power On / Red-Warning if the voltage is lower than 3.5V / Blue-Normal
Battery: 1S 2000mAh
Charging Connector: USB 3.0 Type-C

Includes

1x BetaFPV Lite Radio 3 2.4GHz RC Transmitter


All products with batteries must be shipped by a ground shipping method. The Beta FPV ﻿LiteRadio 3 Radio Transmitter is the newest remote control in the LiteRadio series. This transmitter features an ergonomically designed handle and has superb performance in its working time and newly updated gimbals. Besides, this ve

BetaFPV Lite Radio 3 2.4GHz RC Transmitter - Choose Version from WREKD Co.

BetaFPV Lite Radio 3 2.4GHz RC Transmitter - Choose Version

EMAX E6 Transmitter Radio Controller - FrSky

EMAX E6 Transmitter compatible with Tinyhawk RTF replacement or for universal FrSky D8 protocol usage.18650 Battery Included.Micro USB Charging Cable not included.AETR1234 Channel Mapping

EMAX E6 Transmitter Radio Controller - FrSky D8 Mode Compatible

Emax USA

EMAX E6 Transmitter Radio Controller - FrSky D8 Mode Compatible from WREKD Co.

EMAX E8 2.4GHz 8CH Radio Transmitter

The&nbspE8 Transmitter&nbspfeatures built-in 2.4GHz dual-band antennas and an 8 channel RF Module. The built-in USB charging system is compatible with a 18650 battery with a working voltage of 3.3-4.3V. Right-hand and Left-hand modes make this transmitter the right fit for any pilot!

The E8 Transmitter features built-in 2.4GHz dual-band antennas and an 8 channel RF Module. The built-in USB charging system is compatible with a 18650 battery with a working voltage of 3.3-4.3V. Right-hand and Left-hand modes make this tran

EMAX E8 2.4GHz 8CH Radio Transmitter - FrSky D8

Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over any aircraft, providing smoothness and precision over previous generations of EMAX transmitters.

EMAX E8 Transmitter 8 Channel FrSky D8 Compatible - RMRC

EMAX E8 Transmitter 8 Channel FrSky D8 Compatible

Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over any aircraft, providing smoothness and precision over previous generations of EMAX transmitters.

Charging System: Built-in Micro-USB USB 5V--1A linear li-ion battery charging system
IO: Micro USB Charging Port, 3.5mm Audio Interface, Micro SD Card Slot
Frequency: 2.4GHz (2400MHz-2483.5MHz)
Dimensions: 150x140x45mm
Battery: 18650 Lithium-ion battery
Weight (w/o Battery): 260g
Channels: 8CH
Operating Voltage: 4.2V-3.3V
Output Power: 22dbm
Protocol: FrSky D8


Utilizing high quality gimbals, the E8 transmitter offers unparalleled control over any aircraft, providing smoothness and precision over previous generations of EMAX transmitters.   Charging System: Built-in Micro-USB USB 5V--1A linear li-ion battery charging system IO: Micro USB Charging Port, 3.5mm Audio Interface,

E8 Transmitter 8 Channel FrSky D8 Compatible from WREKD Co.

E8 Transmitter 8 Channel FrSky D8 Compatible

GEPRC

GEPRC TinyRadio ELRS Remote Controller

TinyRadio ELRS Remote Controller is a new generation remote control system developed based on the ExpressLRS open-source project. ExpressLRS sets new standards for long-range connection, low latency, and a maximum refresh rate of 500Hz.
The TinyRadio adopts a simplified design to minimize the difficulty of use. It has an ergonomic design, so it is more comfortable to hold. It has a built-in ELRS module, available in 915/868MHz and 2.4GHz versions, and an adjustable power of up to 500mW with a replaceable antenna design. The remote control distance can reach more than 2KM under ideal conditions. The TinyRadio ELRS Controller supports upgrading remote control firmware through a USB interface, and can upgrade the ELRS module firmware through WIFI.
Supports wireless connection to computer drone simulator via Bluetooth. It supports two 18650 batteries for ultra-long battery life. 8 low latency channels can meet most of the needs of beginners and professionals.
Check out all our RC transmitters! and our GEPRC selection!
Features

Built-in ELRS 915MHz/2.4GHz
Functional “less is more” design, Easy to carry
2KM+ flight range(subject to the environment)
500mW adjustable power
8 super low latency channels
Replaceable antenna
Two replaceable 18650 batteries
Support USB-C charging
Custom remote control system
Fully compatible with drone simulators

Specifications

Size：147x135x71mm (Not including antenna)
Weight：223g
Adapted Drone Type: Multirotor, Airplane
Frequency band：915MHz FCC /868MHz EU /2.4GHz ISM
Input voltage：6.6-8.4V
Antenna interface: SMA
Power：100/250/500mW
Channel：8 channel
Charging interface: USB-C
Firmware upgrade: Support
Bluetooth joystick: Support

Includes

1 x TinyRadio
1x 18650 tray
1 x Instruction manual
Batteries Not Included

Tips: TinyRadio ELRS Radio Controller Firmware Upgrade Guide

TinyRadio ELRS Remote Controller is a new generation remote control system developed based on the ExpressLRS open-source project. ExpressLRS sets new standards for long-range connection, low latency, and a maximum refresh rate of 500Hz. The TinyRadio adopts a simplified design to minimize the difficulty of use. It has

GEPRC TinyRadio RC Transmitter ELRS 2.4GHz from WREKD Co.

GEPRC TinyRadio RC Transmitter ELRS 2.4GHz

Summary
TinyRadio ELRS Remote Controller is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and Maximum refresh rate of 500Hz.
TinyRadio adopts a simplified design to minimize the difficulty of use. Ergonomic design, more comfortable to hold.Built-in ELRS module, available in 915/868MHz and 2.4GHz versions, adjustable power of up to 500mW with replaceable antenna design, the remote control distance can reach more than 2KM under ideal conditions.Support upgrade remote control firmware through USB interface, and can upgrade ELRS module firmware through WIFI,Supports wireless connection to computer drone simulator via bluetooth. It supports two 18650 batteries for ultra-long battery life. 8 low latency channels can meet most of the needs of beginners and professionals.
（Notes：An antenna must be installed before Power On!）

Specifications

 	Size：147*135*71mm(Not including antenna)
 	Weight：223g
 	Adapted Drone Type: Multirotor, Airplane
 	Frequency band：915MHz FCC /868MHz EU /2.4GHz ISM
 	Input voltage：6.6-8.4V
 	Antenna interface：SMA
 	Power：100/250/500mW
 	Channel：8 channel
 	Charging interface：USB-C
 	Firmware upgrade：support
 	Bluetooth joystick：support

Feature

 	Built-in ELRS 915MHz/2.4GHz
 	Functional "less is more" design,Easy to carry
 	2KM+ flight range(subject to the environment)
 	500mW adjustable power
 	8 super low latency channels
 	Replaceable antenna
 	Two replaceable 18650 batteries
 	 Support USB-C charging
 	Custom remote control system
 	Fully compatible with drone simulators

TinyRadio Remote Controller diagram

Battery installation
Open the bottom battery cover and insert two 18650 batteries or a 2S battery.(not included)

Notes
1. Ensure the polarity symbols on the batteries match the symbols inside the battery compartment.
2. Do not mix new and old batteries.
3. Do not mix different types of batteries.

Instructions
Power ON/OFF
Long press the power button of the remote control for 2 seconds in the off state, and release the power button after the remote control vibrates, while the red LED lights up, the remote control is successfully powered on.
Long press the power button of the remote control for 2 seconds in the power on state, when the LED light goes out, the remote control is turn off successfully.

Binding
In the off state, long press the BIND button on the back of the remote control,and then press the power button at the same time to turn it on. When the indicator light turns flashing, the remote control enters the binding status.
The binding status will last for 5 seconds, there will be no feedback when the binding is successful, and it will automatically exit the binding status after 5 seconds. Check whether the remote control is in binded with the receiver. If not, please repeat the binding operation.

Joystick Calibration
With the joystick back in the center and the throttle lever in the lowest position, long press the SETUP button on the back of the remote control for 4 seconds, and when the remote control vibrates and the buzzer beeps sound, the calibration is complete.

Power switching
First long press the BIND button, then short press the SETUP button for 1 second, the 100/250/500mW power can be switched cyclically, and the current high performance Radio control link power can be observed through the indicator light.

WIFI mode
In the off state, long press the SETUP button to turn it on, and when the indicator light turns into quickly flashing runing led,  it will enter the WIFI update mode, and the ELRS high performance Radio control link firmware can be updated.
Bluetooth joystick
In the off state, long press the BIND and SETUP buttons at the same time to turn on the device. When the indicator light turns into a slowly flashing running led,                          it will enter the Bluetooth simulator mode, and you can connect to the computer drone simulator to practice.

Charging
Plug in the USB-C cable in the off state, it will be in the charging state when the remote control indicator turns blue,and the indicator light will automatically turn off after charging is completed.

Includes
Standard:
1 x TinyRadio
1x 18650 tray
1 x Instruction manual
Note: Batteries Not Included.

Combo:
1 x TinyRadio
1x 18650 tray
1 x Instruction manual
1 x Storage Case For TinyRadio
Note: Batteries Not Included.
Tips: TinyRadio ELRS Radio Controller Firmware Upgrade Guide

Summary TinyRadio ELRS Remote Controller is a new generation remote control system developed based on the ExpressLRS open source project. ExpressLRS sets new standartds for long-range connection, low latency and Maximum refresh rate of 500Hz. TinyRadio adopts a simplified design to minimize the difficulty of use. Ergonomic design, more comfortable to hold.Built-in ELRS module, available [...]

GEPRC TinyRadio ELRS Remote Controller - GEPRC

A classic T-Motor with a new stunning look. This new 0802 motor is sure to make your build stand out like none othe

BetaFPV ELRS Micro 2.4GHz RC Transmitter Module

The BetaFPV ELRS Micro 2.4GHz RC Transmitter Module is based on the Express LRS project, an open-source RC link. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.Check out our RC Transmitters and all our BetaFPV products!

Specifications

Packet refresh rate: 25Hz/50Hz/100Hz/200Hz (915MHz/868MHz), 50Hz/150Hz/250Hz/500Hz (2.4GHz)
RF output power: 25mW/50mW/100mW/250mW/500mW (2.4GHz), 100mW/250mW/500mW (915MHz/868MHz)
Frequency bands (Micro RF Module 2.4G version): 2.4GHz ISM
Input voltage: 5V~12V
XT30 port: 5V~12V, recommend 2S(8.4V) battery, DO NOT support 3S(12.6V) or above
USB port: Type-C

Note： Please assemble the antenna before power on. Otherwise, the PA chip in the Micro TX module will be damaged permanently.
Note：Please DO NOT use 3S or above bettery to power up the TX module via XT30 port. Otherwise, the power supply chip in the TX module will be damaged permanently.
Diagram

About the firmware
The ExpressLRS offical project on Github does NOT support the OLED function for the moment. BETAFPV team will work with the ELRS team and make the offical repository support the OLED and button function ASAP.
Please get the firmware from BETAFPV Github nowadays until ExpressLRS offical support. In BETAFPV branch, the ExpressLRS protocol is V1.1.0 and NO binding phrase for the firmware.
NOTE: There are 2 known issues with this firmware currently. We will solve these 2 issues ASAP. If you find more other issue, feel free to leave a issue here.

Only support pressing function for the joystick.
When entering OLED menus page with long pressing, the connection between RF TX module and receiver will be lost, the connection will recover after exiting menus page automatically

You could all use the ELRS offical firmware V2.0-RC2 now, but lost the function of OLED and Joystick. We will work with the ELRS dev team and make the ELRS offical firmware support the full function of the Micro TX Module. For the milestone, OLED will be supported in the V2.1 offically.
https://github.com/BETAFPV/ExpressLRS
User manual of How to Flash Firmware of ELRS RX/TX.
Includes

1x BETAFPV ELRS Micro TX module
1x BETAFPV Moxon antenna
1x Micro TX module user manual

1x Spare USB data cable (Type-A to Type-C)


The BetaFPV ELRS Micro 2.4GHz RC Transmitter Module is based on the Express LRS project, an open-source RC link. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.Check

BetaFPV ELRS Micro 2.4GHz RC Transmitter Module - White from WREKD Co.

BetaFPV ELRS Micro 2.4GHz RC Transmitter Module - White

BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

A ton of ExpressLRS items are available now!
The ELRS Micro TX Module Case and Fan are released now! Upgraded module case with 6.5*13.5mm USB port housing is compatible with most USB Type-C cables. Moreover, there are two colors in the new module case. You can make your own module easily.
Specification

Item: ELRS Micro TX Module
Input voltage: 5V~12V
XT30 port: 5V~12V, recommend 2S(8.4V) battery, DO NOT support 3S(12.6V) or above
USB port: Type-C





2.4GHz 1W

2.4GHz 500mW

915/868 MHz 500mW




Packet refresh rate


50Hz, 150Hz, 250Hz, 500Hz


50Hz, 150Hz, 250Hz, 500Hz


25Hz, 50Hz, 100Hz, 200Hz




RF output power


25mW, 50mW, 250mW, 500mW, 1W


25mW, 50mW, 250mW, 500mW


100mW, 250mW, 500mW




Frequency bands


2.4GHz ISM


2.4GHz ISM


915MHz FCC 868MHz EU



Heat sink
Included
Not included

Not included


Backpack Function
Support

Not support currently
Not support currently



ELRS 2.4G 1W Version
The black version with maximum 1W RF output power is released now. Support all 5D button dimensions based on BETAFPV ELRS V2.0.0 firmware. A new backpack function is added, allowing wireless communication between ExpressLRS, and other FPV related devices for command and control, or for querying config.
Note: Please make sure the VRX also supports backpack function when using the module VRX-backpack function. Backpack function will be added to the 500mW version in the future.

Compared with 500mW versions, it not only builds in a cooling fan but also the heat sink is included, which enhances the performance of cooling. So this module can work properly in daily use and not need to worry about temperature.
Note: About the temperature test, please read the article ELRS Micro Module Temperature.

1W Limited Edition

Apart from the classical case for the micro TX module, a limited edition will be released together. Both classical case and limited case versions have the same function. The 3D-printed case with new appearance design makes the module very cool when LED light flashing. Limited stock, first come first serve!

Diagram
BETAFPV Micro RF TX module is compatible with radio transmitter which has the micro module bay (AKA JR/SLIM module bay, e.g. Frsky Taranis X9D, TBS Mambo). Below is the diagram for the 500mW version module.

Below is the diagram for ELRS 2.4G 1W version. DIP switches will be added to 500mW versions in the future.

Note: Please assemble the antenna before power on. Otherwise, the PA chip in the Micro TX module will be damaged permanently.
Note: Please DO NOT use 3S or above battery to power up the TX module via XT30 port. Otherwise, the power supply chip in the TX module will be damaged permanently.
Note: Please do not turn on all DIP switches at the same time. You can refer to the chart to know about DIP switches on/off based on different uses.




1-2 DIP switches

3-4 DIP switches
5-6-7 DIP switches


Update Firmware
ON
OFF
OFF


Operating Mode
OFF
ON
OFF


Update Backpack
OFF
OFF
ON



About the Firmware
The ExpressLRS official project on Github does NOT support the OLED function for the moment. BETAFPV team will work with the ELRS team and make the official repository support the OLED and button function ASAP.

BETAFPV Micro TX Module ELRS V2.0.0 firmware is published. The firmware does not include the Binding Phrase. So please make sure the receiver works on officially major release V2.0.0 protocol and no Binding Phrase set.

Support 5D buttons and the OLED menu with the official ELRS 2.0.0 release.
The color of the LED changes automatically according to the system status.
Other new and various features are fully synchronized with the official ELRS 2.0.0.
When entering OLED menus page with long pressing, the connection between RF TX module and receiver works normally. Please do not change the Pkt Rate, otherwise, you must re-power the receiver.

https://github.com/BETAFPV/ExpressLRS
User manual of How to Flash Firmware of ELRS RX/TX.
You could all use the ELRS official firmware V2.0-RC2 now, but lost the function of OLED and Joystick. We will work with the ELRS dev team and make the ELRS official firmware support the full function of the Micro TX Module. For the milestone, OLED will be supported in the V2.1 officially.
https://github.com/ExpressLRS/ExpressLRS
How do I set a binding phrase on this Micro TX module when the ELRS official mainstream does not support OLED yet?
First, download the source code of master-betafpv-oled-menu branch to local from Github.

Second, open the ExpressLRS Configurator and load the upzip source code from local. Select the target device "BETAFPV 900/2400 TX Micro". Now, you could setup your own binding phrase and other options as normal.

Third, build &amp flash.
Know More About ExpressLRS

ExpressLRS is an open-source RC link for RC applications. Everyone could find this project on Github or join the discussion in Facebook Group.
ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 900 MHz a maximum of 200 Hz packet rate is supported. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.
More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in ELRS receiver, ELRS TX module for JR bay, or Nano bay. BETAFPV team take part in this project and provide a series of ExpressLRS components.


Backpack Function
Some of the ExpressLRS TX modules include an additional ESP8285 chip, which lets us communicate wirelessly with other ESP8285 enabled devices using a protocol called espnow. We call this chip the "TX-Backpack". The aim of the TX-Backpack is to allow wireless communication between ExpressLRS, and other FPV related devices for command and control, or for querying config.
https://github.com/ExpressLRS/Backpack/wiki
Button and OLED
The ELRS TX module could be configured via the OpenTX LUA script. With OLED and button, no-OpenTX radio controller that supports CRSF could use this ELRS Micro module easily. The following no-OpenTX radio controllers work well with this TX module. Futaba T16IZ, T16SZ and T18SZ (with update to 3.9e), Wsky ET16, Radiolink AT9S Pro.

Note: All 5D button dimensions are available on BETAFPV ELRS V2.0.0 firmware. Please upgrade the firmware for new supports.
Below is the basic operation of the button and OLED for V1.0.0 firmware.
Long Press:
In the lock screen page, long press to unlock and enter the menu page.
In the menu page, long press to change the value of this row.

Short Press:
In the lock screen page, short press invalidly.
In the menu page, short press to move to the next row.

Note: When the RF TX module is entering menus page, the connection between RF TX module and receiver will be lost, the connection will recover after exiting menus page automatically you must re-power the receiver if you have changed the Pkt Rate.
Note: When the RF TX module enters WIFI Upgrade status, the button will be invalid. Please re-power the RF TX module after firmware update via WIFI.

Below is the basic operation of the button and OLED for BETAFPV ELRS V2.0.0 firmware.
Long Press: Unlock and enter the menu page, or apply current settings in the menu page. Up/Down: Move to the last/next row. Left/Right: Change the value of this row. Short Press: Enable binding status or WiFi upgrade status.

Note: You must re-power the receiver if you have changed the Pkt Rate.
Note: When the RF TX module enters WIFI Upgrade status, the button will be invalid. Please re-power the RF TX module after firmware update via WIFI.

Basic Configuration
ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the radio transmitter and the TX module. So make sure your radio transmitter supports the CRSF serial protocol. We use the radio transmitter with the OpenTX system to show how to set up the CRSF protocol and LUA script. To set this up, in the OpenTX system, enter into model settings, and on the "MODEL SETUP" tab, turn off the "Internal RF". Next, enable "External RF" and select "CRSF" as the protocol.

ExpressLRS use the OpenTX LUA script to control the TX module, like bind or setup. With the LUA script, pilots could check, and set up some configurations of the Nano RF TX module. For more details, please check the Support Page.

Save the ELRS.lua/ELRSV2.lua script files onto the radio transmitter's SD Card in the Scripts/Tools folder
Long press the "SYS" button (for RadioMaster T16 or similar radios) or the "Menu" button (for Frsky Taranis X9D or similar radios) to access the Tools Menu where you can find ELRS/ELRSV2.lua script ready to run with only one click
Below image shows the LUA script run successfully

ELRS.lua script

ELRSV2.lua script

Bind &amp Output Power
The Micro RF TX module comes with officially major release V1.1.0 or V2.0.0 protocol and no Binding Phrase included. So please make sure the receiver works on officially major release V1.0.0~V1.1.0 or V2.0.0 protocol. And no Binding Phrase set. Micro RF TX module could enter binding status via ELRS.lua or ELRSV2.lua script, as described in "LUA Script" chapter. Besides, using the button and OLED, move to the BIND position and long-press the button. Short press the button if it is V2.0.0. Then the RF module will enter binding status.
ELRS.lua script

Note: The LED will NOT flash when entering binding status. The module will exit from binding status 5 seconds later auto. Short and consecutive press 3 times to bind.
ELRSV2.lua script

Note: The LED will NOT flash when entering binding status. The module will exit from binding status 5 seconds later automatically.
Note: If you reflash firmware of the RF TX module with your own Binding Phrase, please make sure the receiver has the same Binding Phrase. The RF TX module and the receiver will bind automatically in this situation.
Micro RF TX module could switch the output power via ELRS.lua or ELRSV2.lua script, as described in "LUA Script" chapter. Besides, using the button and OLED, move to the Output position. Switch the output power by long-pressing the button (ELRS.lua script). Pushing the button left or right (ELRSV2.lua script).
ELRS.lua script

 Note: The RGB LED will NOT change according to the output power. When the output power is 250mW or above, the fan will spin automatically. The Micro RF TX module does NOT support 1W or 2W output. When switching to this value, the system will move to 500mW automatically.
ELRSV2.lua script

 Note: The RGB LED will NOT change according to the output power. When the output power is threshold value(default 250mW) or above, the fan will spin automatically.
FAQ

BETAFPV ELRS Micro TX module user manual download.
Download the latest firmware for Micro TX Module 500mW and 1W versions.

Package

1 * BETAFPV ELRS Micro TX module
1 * BETAFPV Moxon antenna (2.4G, 915MHz or 868MHz)
1 * Monopole antenna
1 * Micro TX module user manual

1 * Spare USB data cable (Type-A to Type-C)

Note: ELRS Micro TX Module 915MHz or 868MHz version excludes the Monopole antenna. The Moxon antenna black or white will be shipped randomly.


BETAFPV Micro RF TX module is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance. A ton of E

ELRS Micro TX Module

The BetaFPV ELRS Micro 2.4GHz RC Transmitter Module is based on the Express LRS project, an open source RC link. You'll love the performance and ease of use.

BetaFPV ELRS Micro 2.4GHz RC Transmitter Module for Sale - RaceDayQuads

BetaFPV SuperG True Diversity Dual 1 Watt Micro/Nano ELRS 2.4GHz RC Transmitter Module

Based on ELRS V3.3 and collaborated with ELRS developer team, the First Ever Gemini Dual-Frequency Diversity Transmitter comes out! At present, SuperG Nano Transmitter can be fully activated to achieve the best link quality ever combined with diversity rx such as SuperD receiver or SuperP receiver. With dual 1W transmit power, it excels in anti-interference performance and stability, making it the ideal solution for demanding applications like FPV racing, long-range flight, and professional photography.
Check out our RC Transmitters and all our BetaFPV products!



Features


Introducing the pioneering Gemini Dual-Frequency Diversity Transmitter, propelling ELRS into the era of dual-frequency capabilities.
Dual 1W transmit power experienced amplified signal strength, expanded transmission distances, and a substantial increase in remote control range.
In conjunction with existing true diversity receivers, activating the Gemini mode ensures unwavering signal stability even in the most intricate radio environments.
Meticulously crafted from CNC aluminum alloy, the transmitter casing facilitates efficient thermal conductivity, complemented by an intelligently designed Heatsink system for optimal heat dissipation.
Featuring 2 customizable buttons and 1 USB port, the transmitter accommodates external power sources, enabling steadfast long-range expeditions.







Diagram
Below is the diagram for the SuperG Nano Transmitter.

Note: Please assemble the antenna before powering on. Otherwise, the PA chip in the SuperG Nano Transmitter will be damaged permanently.
The following is the comparison information of the 3 products SuperG Nano Transmitter, ELRS Nano TX Module and ELRS Micro TX Module. It shows the advancing updates and specifications more than ever.





SuperG Nano TX
Nano TX
Micro TX


Max RF Power
Dual-1000mW
500mW
500mW/1000mW



RF Chip
Dual SX128x
Single SX128x
Single SX128x



Antenna Mode
Gemini
Single
Single



Cooling System
Supported
Unsupported
Supported



Backpack
Supported
Unsupported
Supported



External Power Supply
Supported 7-13V
Unsupported
Supported 5-12V





Know More About Diversity&ampGemini


Antenna Diversity mode, two antennas. Switch the two antennas regularly to read the RSSI value of the signal and determine which antenna to use to receive data.
True Diversity mode, where both antennas receive data at the same frequency, and the antenna that receives the correct data first is used.
Gemini mode, where two antennas simultaneously receive telemetry data with a frequency difference of 40MHz. They also transmit data simultaneously but at different frequencies. This means that you can receive the same data packets on different frequencies and antennas. This mode provides stable flight even in complex radio environments.

Among them, Gemini is the most advanced function yet of ExpressLRS - Gemini mode currently! It owns the most stable mode for receiving signals and offers higher resistance to interference and stability, making it suitable for various applications.
SuperG Nano Transmitter features Gemini mode. In a testing video by developer Jye Smith, it is shown that with a refresh rate of 1000Hz, the LQ value fluctuates between 90-100 when the true diversity receiver is in operation. However, after switching to Gemini mode, the LQ value stabilizes at 99-100. This demonstrates that ELRS goes to great lengths to ensure link stability.
Combination with Diversity RX
Gemini mode is built upon the hardware foundation of true diversity receivers and requires a dual RF output high-frequency module. When used with Super series products, the advantages of Gemini mode can be fully utilized. And The effects of using the transmitter and receiver in various modes are as follows:







TX


RX


Antenna Receiving Mode




ANT1/ANT2/Switch


Single


Single




Diversity


Diversity




Gemini


Single




Gemini


Single


Single




Diversity


Diversity




Gemini


Gemini








Using it together with True Diversity Receiver ensures a super stable yet strong radio link for pilots to fly in any environment that require extremely stable signals and low latency. Including long-range flights, multiplayer flights, and FPV racing. It gives pilots a robust and aggressive flight experience.

Dual 1W Output Power
The SuperG Nano Transmitter with Dual-active Antennas@Dual Frequencies, each boasting a powerful 1W transmission power. Experience stronger signals, longer transmission distances, and enhanced remote control range.



Cooling System Iteration
The casing part is made of CNC aluminum alloy with an anodized surface for durability. It efficiently dissipates heat, thanks to its optimized internal airflow and high-speed fan with copper heat fins. Fly with confidence and enjoy reliable performance every time.

Combination with Most Radio TX
The SuperG Nano Transmitter could be configured via LUA script. EdgeTX and OpenTX radio transmitter that supports CRSF could be used easily. It available for popular Nano interface TX when used with Micro-Nano Module Adapter including Radiomaster TX16, Boxer, Zorro. Jumper T16, T20, T Pro. Frsky QX7, X9, X Lite.

Note: LiteRadio 3 Pro Radio Transmitter cannot support dual transmitter power above 100mW due to power supply issues.
Express Yourself in Vibrant Colors
SuperG Nano Transmitter is a cutting-edge device that offers a distinct and personalized flair, with a range of three vibrant color options including red, grey, and black. The combination of its sleek design, superior functionality, and colorful choices perfectly caters to those who seek elevate style and performance.

ELRS Series
The ExpressLRS Series expands its lineup with the addition of SuperG Nano Transmitter. To achieve exceptional link quality, pair the Gemini TX with Super series diversity receivers. BETAFPV takes the flying experience to new heights by introducing ELRS links that offer long-range capabilities, low latency, and high refresh rates in a radio control system.

Basic Configuration
SuperG Nano Transmitter is designed to receive signals using the Crossfire Serial Data Protocol (CRSF). Therefore, the interface of the transmitter's high-frequency module needs to support CRSF signal output. Taking the EdgeTX transmitter system as an example, we will explain how to configure the transmitter to output CRSF signals and control the transmitter using Lua scripts.
In the EdgeTX system, navigate to MODEL SEL and enter the SETUP menu. Disable Internal RF (set to OFF), enable External RF, and set the Output Mode to CRSF, as shown in the picture below.

Lua scripting is a lightweight and compact scripting language that can be embedded in the transmitter for convenient access to and modification of the transmitter's configuration.

Download the elrsV3.lua script from the BETAFPV Support Center or ExpressLRS Configurator.
Copy the official Lua script, elrsV3.lua, to the SD card of the transmitter, under the path Scripts/Tools.
On the EdgeTX system, long-press the SYS button or MENU button to access the SD-HC CARD menu.
In this menu, select the elrsV3.Lua script and run it.
If the Lua script runs successfully, the interface will appear as shown in the illustration below.




Custom Buttons
SuperG Nano Transmitter reserves 2 buttons that can be customized by users. Here are the specific steps to operate:



Enable the transmitter's WiFi or power it on and wait for 60 seconds to enter WiFi mode using LUA programming.
The RGB indicator light will slowly flash in green, indicating that the transmitter has automatically enabled WiFi (WiFi name: ExpressLRS TX, WiFi password: expresslrs).
Connect your smartphone or computer to the WiFi network and open a web browser. Enter http://10.0.0.1 to access the custom button settings page.
In the corresponding button's Action column, select the desired custom function. Then, choose the button type and the number of presses or duration in the Press and Count columns. Click SAVE to complete the settings.




Currently, there are 6 available functions that can be assigned to shortcut buttons. There are 2 ways to use the buttons: long-press and short-press. The duration of a long press can be customized, while the number of presses for a short press can also be customized.
The following are the 6 functions that can be set:






Unused
VTX Setting


Increase Output Power
Enable WiFi


Enter VTX Channel
Enter Binding Mode


Enter VTX Band








The pictures below show the functionality of the transmitter in its factory default settings. (The left button is Button1 and the right button is Button2).







Button
Action
Press
Count


Button1(Left Button)
Enter Binding Mode
Short Press
3 Times


Increase Power
Long Press
For 0.5 seconds


Button2(Right Button)

Go to VTX
Channel Menu

Short Press
2 Times


Send VTX Settings
Long Press
For 0.5 seconds





Note: This transmitter hardware does not support button RGB lights.



Bind &amp External Power Supply
The SuperG Nano Transmitter utilizes the default firmware, which employs the ExpressLRS V3.3.0 official protocol without a Binding Phrase. Consequently, the binding receiver should also be equipped with firmware V3.0.0 or higher and have no Binding Phrase set. For optimal performance, it is recommended to position the transmitter's two antennas as far apart as possible.

Put the receiver in a bound state and wait for connection.
Click the "Bind" in the Lua script or the set custom button to enter the binding mode.
If the Indicator has turned solid, it indicates that the device has been bound successfully.



Note: If the firmware of the TX is reflashed and the Binding Phrase is configured, you cannot enter the Binding state through the above method. Please set the RX to the same frequency Binding Phrase, and the TX and RX can be connected automatically.
When the dual transmit power exceeds 500mW, the SuperG Nano Transmitter exhibits relatively high power consumption, leading to a reduced battery life. To prolong the transmitter's usage time, it is advisable to utilize an external battery as a power source.

The power consumption of the transmitter is not only related to the transmit power but also to the telemetry ratio. When using high power of 500mW and above, the return ratio can be set higher to reduce power consumption and extend use time.
For example, in Gemini mode, the power consumption of setting the return ratio to 1:128 is 1000mA, while the power consumption of setting the return ratio to 1:2 is only half of 1:128.




Note: When the voltage of the radio transmitter battery or external battery is lower than 7V (2S) or 10.5V (3S), please use the Gemini mode of 500mW and 1W carefully, otherwise the transmitter will enter the restart state due to insufficient power supply, resulting in disconnection out of control.

FAQ
When establishing a link, it is not possible to enter the LUA script.


The ELRS LUA script version is outdated and requires an upgrade to elrsV3.lua.
The baud rate of the radio transmitter is set below 400K, and it should be adjusted to a value above that.
If there is no option to modify the baud rate, it is necessary to update the radio transmitter firmware, ensuring that EdgeTX is at version V2.7.0 or newer.


If your radio transmitter is unable to use the F1000 Packet rate or prompts "Baud rate is too low".



Reason: F1000 requires a baud rate higher than 400K, and the radio transmitter's baud rate is 400K by default.
Solution: First update the baud rate (greater than 400K) setting in the Hardware from the Model Setup menu or System menu, then restart the radio transmitter to ensure the baud rate setting has been applied. Then change the Packet rate.



When the F1000 is turned on, the Packet rate between the radio transmitter and the SuperG Nano Transmitter is less than 1000.


Reason: EdgeTX version problem
Solution: The EdgeTX version needs to be upgraded to 2.8.0 or above. And the LiteRadio 3 Pro Radio Transmitter defaults to EdgeTX 2.8.0 and does not have this problem.

The SuperG Nano Transmitter's default firmware is ELRS V3.3.0, and users need to update the receiver to V3.0.0 or above to bind the frequency.

Download the Instruction Manual for the SuperG Nano Transmitter
Download the firmware for the SuperG Nano Transmitter
Download the Backpack firmware for the SuperG Nano Transmitter
Download the STL File for the SuperG Nano TX Insulated shell


Specification

Item: BETAFPV SuperG Nano Transmitter Module | ELRS 2.4G
Weight: 44.8g
Color: Black, Red, Grey
Antenna Connector: 2x RP-SMA
RF Power: 25mw/50mW/100mW/250mW/500mW/1000mW
Packet Rate: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000
Frequency Band: 2.4GHz ISM
Backpack: support
Input Voltage: 7V~13V DC
Rated Current: 8V,1000mA@1000mW, 1:128, Gemini mode
USB Port: Type-C
Fan Voltage: 5V
Default Firmware Version: ExpressLRS V3.3.0
Target Name: BETAFPV SuperG Nano 2.4GHz TX

Includes


1x SuperG Nano Transmitter (Black/Red/Grey)
2x 2.4G Glue Stick Antenna
1x USB to Type-C Data Cable
1x Type-C Male to XT30U Male Power Cable
1x GH1.25 Male to FUTABA Male Signal Cable
1x Micro-Nano Module Adapter (Standard Version)
1x Double Side EVA Foam Tape
1x Instruction Manual
1x Service Card



Based on ELRS V3.3 and collaborated with ELRS developer team, the First Ever Gemini Dual-Frequency Diversity Transmitter comes out! At present, SuperG Nano Transmitter can be fully activated to achieve the best link quality ever combined with diversity rx such as SuperD receiver or SuperP receiver. With dual 1W transmit power, it excels in anti-interference performance and stability, making it the ideal solution for demanding applications like FPV racing, long-range flight, and professional photography. Check out our RC Transmitters and all our BetaFPV products! Features Introducing the pioneering Gemini Dual-Frequency Diversity Transmitter, propelling ELRS into the era of dual-frequency capabilities. Dual 1W transmit power experienced amplified signal strength, expanded transmission distances, and a substantial increase in remote control range. In conjunction with existing true diversity receivers, activating the Gemini mode ensures unwavering signal stability even in the most intricate radio environments. Meticulously crafted from CNC aluminum alloy, the transmitter casing facilitates efficient thermal conductivity, complemented by an intelligently designed Heatsink system for optimal heat dissipation. Featuring 2 customizable buttons and 1 USB port, the transmitter accommodates external power sources, enabling steadfast long-range expeditions. Diagram Below is the diagram for the SuperG Nano Transmitter. Note: Please assemble the antenna before powering on. Otherwise, the PA chip in the SuperG Nano Transmitter will be damaged permanently. The following is the comparison information of the 3 products SuperG Nano Transmitter, ELRS Nano TX Module and ELRS Micro TX Module. It shows the advancing updates and specifications more than ever. SuperG Nano TX Nano TX Micro TX Max RF Power Dual-1000mW 500mW 500mW/1000mW RF Chip Dual SX128x Single SX128x Single SX128x Antenna Mode Gemini Single Single Cooling System Supported Unsupported Supported Backpack Supported Unsupported Supported External Power Supply Supported 7-13V Unsupported Supported 5-12V Know More About Diversity&Gemini Antenna Diversity mode, two antennas. Switch the two antennas regularly to read the RSSI value of the signal and determine which antenna to use to receive data. True Diversity mode, where both antennas receive data at the same frequency, and the antenna that receives the correct data first is used. Gemini mode, where two antennas simultaneously receive telemetry data with a frequency difference of 40MHz. They also transmit data simultaneously but at different frequencies. This means that you can receive the same data packets on different frequencies and antennas. This mode provides stable flight even in complex radio environments. Among them, Gemini is the most advanced function yet of ExpressLRS - Gemini mode currently! It owns the most stable mode for receiving signals and offers higher resistance to interference and stability, making it suitable for various applications. SuperG Nano Transmitter features Gemini mode. In a testing video by developer Jye Smith, it is shown that with a refresh rate of 1000Hz, the LQ value fluctuates between 90-100 when the true diversity receiver is in operation. However, after switching to Gemini mode, the LQ value stabilizes at 99-100. This demonstrates that ELRS goes to great lengths to ensure link stability. Combination with Diversity RX Gemini mode is built upon the hardware foundation of true diversity receivers and requires a dual RF output high-frequency module. When used with Super series products, the advantages of Gemini mode can be fully utilized. And The effects of using the transmitter and receiver in various modes are as follows: TX RX Antenna Receiving Mode ANT1/ANT2/Switch Single Single Diversity Diversity Gemini Single Gemini Single Single Diversity Diversity Gemini Gemini Using it together with True Diversity Receiver ensures a super stable yet strong radio link for pilots to fly in any environment that require extremely stable signals and low latency. Including long-range flights, multiplayer flights, and FPV racing. It gives pilots a robust and aggressive flight experience. Dual 1W Output Power The SuperG Nano Transmitter with Dual-active Antennas@Dual Frequencies, each boasting a powerful 1W transmission power. Experience stronger signals, longer transmission distances, and enhanced remote control range. Cooling System Iteration The casing part is made of CNC aluminum alloy with an anodized surface for durability. It efficiently dissipates heat, thanks to its optimized internal airflow and high-speed fan with copper heat fins. Fly with confidence and enjoy reliable performance every time. Combination with Most Radio TX The SuperG Nano Transmitter could be configured via LUA script. EdgeTX and OpenTX radio transmitter that supports CRSF could be used easily. It available for popular Nano interface TX when used with Micro-Nano Module Adapter including Radiomaster TX16, Boxer, Zorro. Jumper T16, T20, T Pro. Frsky QX7, X9, X Lite. Note: LiteRadio 3 Pro Radio Transmitter cannot support dual transmitter power above 100mW due to power supply issues. Express Yourself in Vibrant Colors SuperG Nano Transmitter is a cutting-edge device that offers a distinct and personalized flair, with a range of three vibrant color options including red, grey, and black. The combination of its sleek design, superior functionality, and colorful choices perfectly caters to those who seek elevate style and performance. ELRS Series The ExpressLRS Series expands its lineup with the addition of SuperG Nano Transmitter. To achieve exceptional link quality, pair the Gemini TX with Super series diversity receivers. BETAFPV takes the flying experience to new heights by introducing ELRS links that offer long-range capabilities, low latency, and high refresh rates in a radio control system. Basic Configuration SuperG Nano Transmitter is designed to receive signals using the Crossfire Serial Data Protocol (CRSF). Therefore, the interface of the transmitter's high-frequency module needs to support CRSF signal output. Taking the EdgeTX transmitter system as an example, we will explain how to configure the transmitter to output CRSF signals and control the transmitter using Lua scripts. In the EdgeTX system, navigate to MODEL SEL and enter the SETUP menu. Disable Internal RF (set to OFF), enable External RF, and set the Output Mode to CRSF, as shown in the picture below. Lua scripting is a lightweight and compact scripting language that can be embedded in the transmitter for convenient access to and modification of the transmitter's configuration. Download the elrsV3.lua script from the BETAFPV Support Center or ExpressLRS Configurator. Copy the official Lua script, elrsV3.lua, to the SD card of the transmitter, under the path Scripts/Tools. On the EdgeTX system, long-press the SYS button or MENU button to access the SD-HC CARD menu. In this menu, select the elrsV3.Lua script and run it. If the Lua script runs successfully, the interface will appear as shown in the illustration below. Custom Buttons SuperG Nano Transmitter reserves 2 buttons that can be customized by users. Here are the specific steps to operate: Enable the transmitter's WiFi or power it on and wait for 60 seconds to enter WiFi mode using LUA programming. The RGB indicator light will slowly flash in green, indicating that the transmitter has automatically enabled WiFi (WiFi name: ExpressLRS TX, WiFi password: expresslrs). Connect your smartphone or computer to the WiFi network and open a web browser. Enter http://10.0.0.1 to access the custom button settings page. In the corresponding button's Action column, select the desired custom function. Then, choose the button type and the number of presses or duration in the Press and Count columns. Click SAVE to complete the settings. Currently, there are 6 available functions that can be assigned to shortcut buttons. There are 2 ways to use the buttons: long-press and short-press. The duration of a long press can be customized, while the number of presses for a short press can also be customized. The following are the 6 functions that can be set: Unused VTX Setting Increase Output Power Enable WiFi Enter VTX Channel Enter Binding Mode Enter VTX Band The pictures below show the functionality of the transmitter in its factory default settings. (The left button is Button1 and the right button is Button2). Button Action Press Count Button1(Left Button) Enter Binding Mode Short Press 3 Times Increase Power Long Press For 0.5 seconds Button2(Right Button) Go to VTX Channel Menu Short Press 2 Times Send VTX Settings Long Press For 0.5 seconds Note: This transmitter hardware does not support button RGB lights. Bind & External Power Supply The SuperG Nano Transmitter utilizes the default firmware, which employs the ExpressLRS V3.3.0 official protocol without a Binding Phrase. Consequently, the binding receiver should also be equipped with firmware V3.0.0 or higher and have no Binding Phrase set. For optimal performance, it is recommended to position the transmitter's two antennas as far apart as possible. Put the receiver in a bound state and wait for connection. Click the "Bind" in the Lua script or the set custom button to enter the binding mode. If the Indicator has turned solid, it indicates that the device has been bound successfully. Note: If the firmware of the TX is reflashed and the Binding Phrase is configured, you cannot enter the Binding state through the above method. Please set the RX to the same frequency Binding Phrase, and the TX and RX can be connected automatically. When the dual transmit power exceeds 500mW, the SuperG Nano Transmitter exhibits relatively high power consumption, leading to a reduced battery life. To prolong the transmitter's usage time, it is advisable to utilize an external battery as a power source. The power consumption of the transmitter is not only related to the transmit power but also to the telemetry ratio. When using high power of 500mW and above, the return ratio can be set higher to reduce power consumption and extend use time. For example, in Gemini mode, the power consumption of setting the return ratio to 1:128 is 1000mA, while the power consumption of setting the return ratio to 1:2 is only half of 1:128. Note: When the voltage of the radio transmitter battery or external battery is lower than 7V (2S) or 10.5V (3S), please use the Gemini mode of 500mW and 1W carefully, otherwise the transmitter will enter the restart state due to insufficient power supply, resulting in disconnection out of control. FAQ When establishing a link, it is not possible to enter the LUA script. The ELRS LUA script version is outdated and requires an upgrade to elrsV3.lua. The baud rate of the radio transmitter is set below 400K, and it should be adjusted to a value above that. If there is no option to modify the baud rate, it is necessary to update the radio transmitter firmware, ensuring that EdgeTX is at version V2.7.0 or newer. If your radio transmitter is unable to use the F1000 Packet rate or prompts "Baud rate is too low". Reason: F1000 requires a baud rate higher than 400K, and the radio transmitter's baud rate is 400K by default. Solution: First update the baud rate (greater than 400K) setting in the Hardware from the Model Setup menu or System menu, then restart the radio transmitter to ensure the baud rate setting has been applied. Then change the Packet rate. When the F1000 is turned on, the Packet rate between the radio transmitter and the SuperG Nano Transmitter is less than 1000. Reason: EdgeTX version problem Solution: The EdgeTX version needs to be upgraded to 2.8.0 or above. And the LiteRadio 3 Pro Radio Transmitter defaults to EdgeTX 2.8.0 and does not have this problem. The SuperG Nano Transmitter's default firmware is ELRS V3.3.0, and users need to update the receiver to V3.0.0 or above to bind the frequency. Download the Instruction Manual for the SuperG Nano Transmitter Download the firmware for the SuperG Nano Transmitter Download the Backpack firmware for the SuperG Nano Transmitter Download the STL File for the SuperG Nano TX Insulated shell Specification Item: BETAFPV SuperG Nano Transmitter Module | ELRS 2.4G Weight: 44.8g Color: Black, Red, Grey Antenna Connector: 2x RP-SMA RF Power: 25mw/50mW/100mW/250mW/500mW/1000mW Packet Rate: 50Hz/100Hz/150Hz/250Hz/333Hz/500Hz/D250/D500/F500/F1000 Frequency Band: 2.4GHz ISM Backpack: support Input Voltage: 7V~13V DC Rated Current: 8V,1000mA@1000mW, 1:128, Gemini mode USB Port: Type-C Fan Voltage: 5V Default Firmware Version: ExpressLRS V3.3.0 Target Name: BETAFPV SuperG Nano 2.4GHz TX Includes 1x SuperG Nano Transmitter (Black/Red/Grey) 2x 2.4G Glue Stick Antenna 1x USB to Type-C Data Cable 1x Type-C Male to XT30U Male Power Cable 1x GH1.25 Male to FUTABA Male Signal Cable 1x Micro-Nano Module Adapter (Standard Version) 1x Double Side EVA Foam Tape 1x Instruction Manual 1x Service Card

BetaFPV SuperG True Diversity Dual 1 Watt Micro/Nano ELRS 2.4GHz RC Transmitter Module  - Choose Your Color

BetaFPV SuperG True Diversity Dual 1 Watt Nano ELRS 2.4GHz RC Transmitter Module - Choose Your Color

Based on ELRS V3.3 and collaborated with ELRS developer team, the First Ever Gemini Dual-Frequency Diversity Transmitter comes out! At present, SuperG Nano Transmitter can be fully activated to achieve the best link quality ever combined with diversity rx such as SuperD receiver or SuperP receiver. With dual 1W transmit power, it excels in anti-interference performance and stability, making it the ideal solution for demanding applications like FPV racing, long-range flight, and professional photography.
Check out our RC Transmitters and all our BetaFPV products!



Features


Introducing the pioneering Gemini Dual-Frequency Diversity Transmitter, propelling ELRS into the era of dual-frequency capabilities.
Dual 1W transmit power experienced amplified signal strength, expanded transmission distances, and a substantial increase in remote control range.
In conjunction with existing true diversity receivers, activating the Gemini mode ensures unwavering signal stability even in the most intricate radio environments.
Meticulously crafted from CNC aluminum alloy, the transmitter casing facilitates efficient thermal conductivity, complemented by an intelligently designed Heatsink system for optimal heat dissipation.
Featuring 2 customizable buttons and 1 USB port, the transmitter accommodates external power sources, enabling steadfast long-range expeditions.







Diagram
Below is the diagram for the SuperG Nano Transmitter.

Note: Please assemble the antenna before powering on. Otherwise, the PA chip in the SuperG Nano Transmitter will be damaged permanently.
The following is the comparison information of the 3 products SuperG Nano Transmitter, ELRS Nano TX Module and ELRS Micro TX Module. It shows the advancing updates and specifications more than ever.





SuperG Nano TX
Nano TX
Micro TX


Max RF Power
Dual-1000mW
500mW
500mW/1000mW



RF Chip
Dual SX128x
Single SX128x
Single SX128x



Antenna Mode
Gemini
Single
Single



Cooling System
Supported
Unsupported
Supported



Backpack
Supported
Unsupported
Supported



External Power Supply
Supported 7-13V
Unsupported
Supported 5-12V





Know More About Diversity&ampampGemini


Antenna Diversity mode, two antennas. Switch the two antennas regularly to read the RSSI value of the signal and determine which antenna to use to receive data.
True Diversity mode, where both antennas receive data at the same frequency, and the antenna that receives the correct data first is used.
Gemini mode, where two antennas simultaneously receive telemetry data with a frequency difference of 40MHz. They also transmit data simultaneously but at different frequencies. This means that you can receive the same data packets on different frequencies and antennas. This mode provides stable flight even in complex radio environments.

Among them, Gemini is the most advanced function yet of ExpressLRS - Gemini mode currently! It owns the most stable mode for receiving signals and offers higher resistance to interference and stability, making it suitable for various applications.
SuperG Nano Transmitter features Gemini mode. In a testing video by developer Jye Smith, it is shown that with a refresh rate of 1000Hz, the LQ value fluctuates between 90-100 when the true diversity receiver is in operation. However, after switching to Gemini mode, the LQ value stabilizes at 99-100. This demonstrates that ELRS goes to great lengths to ensure link stability.
Combination with Diversity RX
Gemini mode is built upon the hardware foundation of true diversity receivers and requires a dual RF output high-frequency module. When used with Super series products, the advantages of Gemini mode can be fully utilized. And The effects of using the transmitter and receiver in various modes are as follows:







TX


RX


Antenna Receiving Mode




ANT1/ANT2/Switch


Single


Single




Diversity


Diversity




Gemini


Single




Gemini


Single


Single




Diversity


Diversity




Gemini


Gemini








Using it together with True Diversity Receiver ensures a super stable yet strong radio link for pilots to fly in any environment that require extremely stable signals and low latency. Including long-range flights, multiplayer flights, and FPV racing. It gives pilots a robust and aggressive flight experience.

Dual 1W Output Power
The SuperG Nano Transmitter with Dual-active Antennas@Dual Frequencies, each boasting a powerful 1W transmission power. Experience stronger signals, longer transmission distances, and enhanced remote control range.



Cooling System Iteration
The casing part is made of CNC aluminum alloy with an anodized surface for durability. It efficiently dissipates heat, thanks to its optimized internal airflow and high-speed fan with copper heat fins. Fly with confidence and enjoy reliable performance..

Based on ELRS V3.3 and collaborated with ELRS developer team, the First Ever Gemini Dual-Frequency Diversity Transmitter comes out! At present, SuperG Nano Transmitter can be fully activated to achieve the best link quality ever combined with diversity rx such as SuperD receiver or SuperP receiver. With dual 1W transmi
