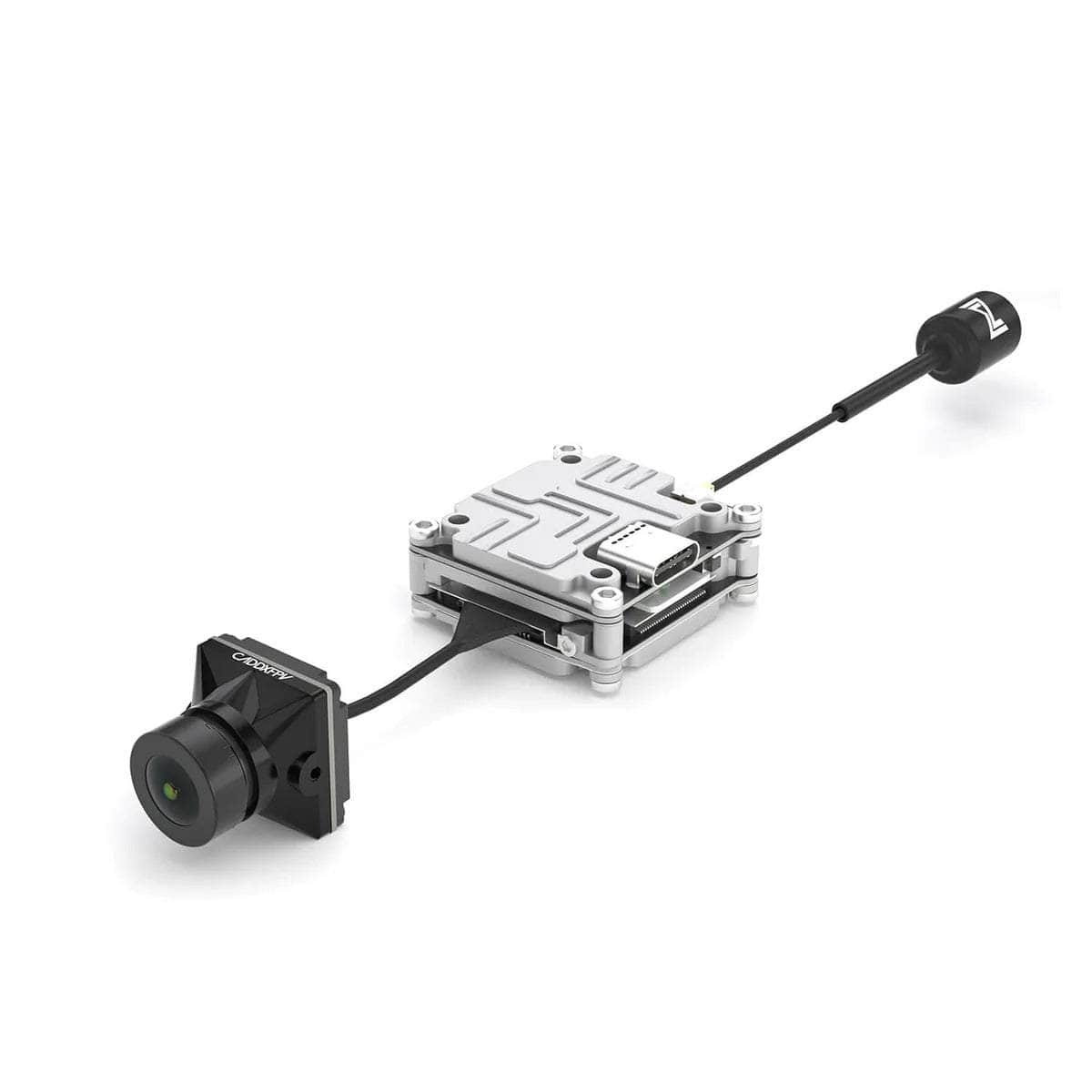

Caddx Nebula Pro Nano Vista Kit for DJI

The Caddx Nebula Pro 720p/120fps performance and low 28ms latency!
Features

Lighter than the Air Unit, better suited for micro applications
Low latency mode offers 120FPS at &lt28 ms!
Embedded Receiver for DJI Remote Controller


Specifications

Coaxial Cable Length: 12cm

Nebula Pro Camera

Image sensor: 1/3 inch CMOS sensor
Resolution: 720p/120fps
Image: 4:3&amp16:9 (Switchable)
FPV/Recording FOV: 150°
Lens: 2.1mm f/2.1
FPV Latency: &lt28ms
Work Temperature: -20℃~+60℃
Weight: 6g(N.W.), 20g (G.W.)
Dimension: 19*19*20mm
Shutter: Rolling Shutter

Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Camera: 24x19x19mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)


Includes

1x Nebula Pro Camera
1x Vista Module
1x Antenna (U.FL)


The Caddx Nebula Pro 720p/120fps performance and low 28ms latency! Features Lighter than the Air Unit, better suited for micro applications Low latency mode offers 120FPS at &lt;28 ms! Embedded Receiver for DJI Remote Controller Specifications Coaxial Cable Length: 12cm Nebula Pro Camera Image sensor: 1/3 inch CMOS sen

Vista VTX with Nebula Pro Camera For DJI HD Video System

The Caddx Nebula Pro 720p/120fps performance and low 28ms latency!
Features

Lighter than the Air Unit, better suited for micro applications
Low latency mode offers 120FPS at &lt;28 ms!
Embedded Receiver for DJI Remote Controller


Specifications

Coaxial Cable Length: 12cm

Nebula Pro Camera

Image sensor: 1/3 inch CMOS sensor
Resolution: 720p/120fps
Image: 4:3&amp;16:9 (Switchable)
FPV/Recording FOV: 150°
Lens: 2.1mm f/2.1
FPV Latency: &lt;28ms
Work Temperature: -20℃~+60℃
Weight: 6g(N.W.), 20g (G.W.)
Dimension: 19*19*20mm
Shutter: Rolling Shutter

Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Camera: 24x19x19mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)


Includes

1x Nebula Pro Camera
1x Vista Module
1x Antenna (U.FL)


CADDXFPV

The CaddxFPV Nebula Pro Nano Camera has released now | Which is capable of 1080p/ 120fps input and 28ms low latency mode | Oversampling creates a high quality 720p image | 4:3 ratio sensor output | 16:9/ 4:3 Switchable | An ultra-lightweight camera as just 3.5g and 16mm nano size camera |

CADDXFPV Nebula Pro Nano Vista Kit | Drones Camera | HD FPV System – CADDX FPV

CADDXFPV Nebula Pro Nano Vista Kit

The Caddx Polar Micro Vista Unit for FPV Drone Racing and Freestyle sold by Pyrodrone is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency within 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly! Check out all our Digital FPV Cameras and the rest of our Caddx Products! Features: Lightweight digital image transmission combination Stable and clear HD video 720p 120fps, 32ms/4km 8 channels, 8 drones Specifications: Transmitter Power(EIPP): FCC/SRRC: &lt;30dBm; CE: &lt;14dBm Max.Transmission Distance: FCC/SRRC:4km;CE:0.7km Operating Temperature Range: 0°to 40°C（32°to 104°F） Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor Supported Flight Control System: BetaFlight Min.Latency(end-to-end): 720p 60fps&lt;32ms Polar vista kit Weight (Include camera): 28g Operating Frequency: 5.725-5.850GHz I/O Interface: USB-C,IPEX,3-in-1 port FOV: 162°(D); 138°(H); 75°(V) Min. Illumination: 0.00003Lux Antenna Weight: 1.5g(IPEX) Polar cam: 24×19×19mm Input Power: 7.4-26.4V Coaxial Cable: 120mm LENS: F/1.6 &amp; 8Mega Vista: 30×29×13.5mm Aspect Ratio: 16:9 Antenna: 105mm Package Includes: 1 x Caddx Polar Micro Digital FPV Vista Camera Kit (Coffee) 6 x M2 Screws (3/4/5mm) 4 x Gasket Ring 1 x 3-in-1 Cable VIDEO: Caddx Polar Starlight Camera Review:

Caddx Nebula Pro Nano HD Vista Kit for DJI

The Nebula Pro Nano is here! 4MO sensor 1080p/120fps input 14mm/3.5g cameraThis kit pairs the Pro Nano cam with a Flywoo Circular Polarized UFL Antenna (Length : 115mm / Tube : 45mm ). a Flywoo Circular Polarized UFL Antenna (Length : 115mm / Tube : 45mm ) . Includes (This doesn&#x27t include the original caddx packag

The Nebula Pro Nano is here! 4MO sensor 1080p/120fps input 14mm/3.5g cameraThis kit pairs the Pro Nano cam with a Flywoo Circular Polarized UFL Antenna (Length : 115mm / Tube : 45mm ). a Flywoo Circular Polarized UFL Antenna (Length : 115mm / Tube : 45mm ) . Includes (This doesn't include the original caddx packag

Caddx Nebula Pro Nano Vista kit HD FPV System

Caddx FPV

The Caddx Nebula Pro Nano features the same great 720p/120fps performance and low 28ms latency of it&#39s big brother the Nebula Pro Micro and weighs in at only 3.5 grams! If you want 120fps low latency HD in a nano form factor, the Caddx Nebula Pro Nano Vista Kit is your camera kit!
We also carry the camera separately if you&#39re looking to shed some weight on an existing build. Check out the entire DJI System product line, our DJI compatible gear and our CADDX selection!
Features

Lighter than the Air Unit, better suited for micro applications
Low latency mode offers 120FPS at &amplt28 ms!
Embedded Receiver for DJI Remote Controller


Specifications

Coaxial Cable Length: 8cm

Nebula Pro Nano Camera


Image Sensor: 1/3 inch CMOS Sensor

Aperture: F/2.0

Resolution: 720p/120fps

Aspect Ratio: 16:9 &ampamp 4:3 (Switchable)


Lens Size: 2.1mm f/2.1


Field of View: 150°(D)122°(H)93°(V)°


Latency: 12-28ms (low latency mode), 30-40ms (high quality mode)

Cable Length: 8cm

Dimensions: 16.5x16x14mm


Weight: 3.5g


Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Camera: 24x19x19mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)


Includes

1x Nebula Pro Nano Camera
1x Vista Module
1x Antenna (U.FL)





The Caddx Nebula Pro Nano features the same great 720p/120fps performance and low 28ms latency of it's big brother the Nebula Pro Micro and weighs in at only 3.5 grams! If you want 120fps low latency HD in a nano form factor, the Caddx Nebula Pro Nano Vista Kit is your camera kit! We also carry the camera separately if

Caddx Nebula Pro Nano Vista Kit w/ 8cm Cable from WREKD Co.

Caddx Nebula Pro Nano Vista Kit w/ 8cm Cable

The&nbspCaddx Nebula Pro Nano Vista Kit&nbspis another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and switchable 16:9/4:3 1080p to 720p image transmission.&nbsp

The Caddx Nebula Pro Nano Vista Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and switchable 16:9/4:3 1080p to 720p image transmission.

Caddx Nebula Pro Nano Vista Kit

RaceDayQuads

The Caddx Nebula Pro Nano features the same great 720p/120fps performance and low 28ms latency of it's big brother the Nebula Pro Micro and weighs in at only 3.5 grams! If you want 120fps low latency HD in a nano form factor, the Caddx Nebula Pro Nano Vista Kit is your camera kit!
We also carry the camera separately if you're looking to shed some weight on an existing build. Check out the entire DJI System product line, our DJI compatible gear and our CADDX selection!
Features

Lighter than the Air Unit, better suited for micro applications
Low latency mode offers 120FPS at &lt28 ms!
Embedded Receiver for DJI Remote Controller


Specifications

Coaxial Cable Length: 8cm

Nebula Pro Nano Camera


Image Sensor: 1/3 inch CMOS Sensor

Aperture: F/2.0

Resolution: 720p/120fps

Aspect Ratio: 16:9 &amp 4:3 (Switchable)


Lens Size: 2.1mm f/2.1


Field of View: 150°(D)122°(H)93°(V)°


Latency: 12-28ms (low latency mode), 30-40ms (high quality mode)

Cable Length: 8cm

Dimensions: 16.5x16x14mm


Weight: 3.5g


Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Camera: 24x19x19mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)


Includes

1x Nebula Pro Nano Camera
1x Vista Module
1x Antenna (U.FL)





Step up your performance with the Caddx Nebula Pro Nano Vista Transmitter for DJI HD FPV!Includes a 4MP sensor, 1080p/120fps input, and a 14x16mm/3.5g camera.Low-latency HD Image transmission. 18ms/4km 720p/120fps Video recorded by the DJI FPV Goggles 1080p input, 720p Output4:3 ratio sensor output, so no pixel cropping and better image quality! 1080p/120fps input oversampling creates a high quality 720p image 16:9/4:3 Switchable, 28ms Low Latency ModeNano Size , 3.5g Ultra-light Camera. The perfect partner for tiny drones!

Get the Caddx Nebula Pro Nano Vista Transmitter for DJI HD FPV and all your FPV and drone needs at RMRC, the leader in FPV since 2009!

Caddx Nebula Pro Nano Vista Transmitter Kit for DJI HD FPV - RMRC

Caddx Nebula Pro Nano Vista Transmitter Kit for DJI HD FPV

CADDX

Weighing in at just 3.5 grams, the Caddx Nebula Pro Nano Vista FPV Camera Kit is the perfect weight saver for your build. This camera is perfect for nano builds.

Caddx Nebula Pro Nano Vista FPV Camera Kit for Sale - RaceDayQuads

The Caddx Nebula Pro Nano offers 720p/120fps performance and low 28ms latency with an even lighter camera!
Features

Lighter than ever, better suited for micro applications
Low latency mode offers 120FPS at &lt28 ms!
Embedded Receiver for DJI Remote Controller


Specifications

Coaxial Cable Length: 8cm

Nebula Pro Nano Camera

4:3 Ratio Sensor Output
720p/ 120fps/ 28ms

1080p input, 720p output
Shutter: Rolling Shutter

14*16mm Nano Size Camera
3.5g Ultra-lightweight Camera

Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Camera: 24x19x19mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)


Includes

1x Nebula Pro Nano Camera
1x Vista Module
1x Antenna (U.FL)


The Caddx Nebula Pro Nano offers 720p/120fps performance and low 28ms latency with an even lighter camera! Features Lighter than ever, better suited for micro applications Low latency mode offers 120FPS at &lt;28 ms! Embedded Receiver for DJI Remote Controller Specifications Coaxial Cable Length: 8cm Nebula Pro Nano Ca

Vista VTX with Nebula Pro Nano Camera For DJI HD Video System

The Caddx Nebula Pro Nano offers 720p/120fps performance and low 28ms latency with an even lighter camera!
Features

Lighter than ever, better suited for micro applications
Low latency mode offers 120FPS at &lt;28 ms!
Embedded Receiver for DJI Remote Controller


Specifications

Coaxial Cable Length: 8cm

Nebula Pro Nano Camera

4:3 Ratio Sensor Output
720p/ 120fps/ 28ms

1080p input, 720p output
Shutter: Rolling Shutter

14*16mm Nano Size Camera
3.5g Ultra-lightweight Camera

Vista Module

Input Voltage: 7.4-26.4V

Output Power: 25mW / 200mW / 500mW / 700mW
Dimensions:

Vista: 30x29x13mm
Camera: 24x19x19mm
Coaxial Cable: 120mm
Antenna: 105x11.2mm

Weight: 28g (+1.5g for Antenna)


Includes

1x Nebula Pro Nano Camera
1x Vista Module
1x Antenna (U.FL)


VTX Frequency

The VTX processes the image from your FPV camera and sends it to your goggle’s video receiver (VRX). If you chose as digital video system, you need a VTX that matches the system. Most analog VTXs and VRXs are compatible with each other, and your biggest consideration will be how much output power you need. The more output power, the more range and better signal you’ll get. Learn more about VTXs.

Video Transmitters

VTX Stack Mount

VTX Antenna Connector

Max Transmission Power

Digital / Analog VTX

FPV Camera Included

Caddx Polar Nano Vista Kit for DJI

Small Camera - Big SensorNew 1.5g lightweight Antenna1/1.8 inch HD Digital Starlight Sensor14*14mm Nano size camera2.7g lightweight - The perfect partner for tiny camerasLow latency HD image

CADDX Polar Nano Vista Kit shipped fast from the best source for all your FPV gear, RMRC! Free shipping for qualified orders using the shipping deal.

CADDX Polar Nano Vista Kit - RMRC

CADDX Polar Nano Vista Kit

The Caddx Polar Nano Vista Kit has a Small Camera but Big Sensor. Ultra-Lightweight which is only 2.7g and 14mm Nano size camera, perfect for tiny Drones. 1/1.8 inch HD Digital Starlight Sensor - Min. Illumination: 0.00003 Lux. Excellent low light capability.

CADDXFPV Polar Nano Vista Kit | HD Starlight Digital Camera FPV System – CADDX FPV

CADDXFPV Polar Nano Starlight Vista Kit

Caddx Vista Unit for DJI Digital HD FPV

Caddx Vista Digital HD Unit for DJI HD FPV.HD transmitter unit only. Does NOT come with a camera or coaxial cable.

Caddx Vista Digital HD Unit for DJI HD FPV.
HD transmitter unit only. Does NOT come with a camera or coaxial cable.

Caddx Vista Unit for DJI Digital HD FPV (No Camera)

<h3>Does not include coaxial cable and antenna</h3>
<h3>Only vista module</h3>

Does not include coaxial cable and antenna Only vista module

Vista Unit Module – CADDX FPV

Does not include coaxial cable and antenna
Only vista module

Vista Unit Module

Caddx Polar Micro Digital FPV Air Unit Camera Kit

Caddx Polar Micro Digital FPV Air Unit Camera Kit - Coffee

The Caddx Air Unit Polar Starlight supports brightness and saturation adjustment. 1/1.8-Inch HD Digital Starlight Sensor. Excellent Image Quality and Brilliant True Colors.

CADDXFPV Polar Starlight Digital Camera | HD FPV Drones Camera System – CADDX FPV

CADDXFPV Polar Starlight Air Unit

Caddx Polar Micro Digital FPV Air Unit Camera Kit - Silver

Caddx Air Unit Polar Starlight Digital HD DJI FPV System

The best quality First Person View equipment. Free or discounted shipping on all orders.Drone Racing, RC Airplanes, FPV Cameras, FPV Goggles, Video Transmitters, RC Quads, Drone Antennas, Lipo Batteries, and Ground Station Equipment.All available for amateurs, schools, hobbyists, government, and wholesale buyers.

Caddx Air Unit Polar Starlight Digital HD DJI FPV System - RMRC

Caddx Polar Micro Vista Kit for DJI

The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!
Check out all our DJI-compatible gear and our CADDX product selection!

Features

Lightweight digital image transmission combination
Stable and clear HD video
720p 60fps, 32ms/4km
8 channels, 8 drones



Specification

Transmitter Power(EIPP): FCC/SRRC: &lt30dBm CE: &lt14dBm
Max.Transmission Distance: FCC/SRRC:4kmCE:0.7km
Operating Temperature Range: 0°to 40°C（32°to 104°F）
Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor
Supported Flight Control System: BetaFlight
Min.Latency(end-to-end): 720p 60fps&lt32ms
Polar vista kit Weight (Include camera): 28g
Operating Frequency: 5.725-5.850GHz
I/O Interface: USB-C,IPEX,3-in-1 port
FOV: 162°(D) 138°(H) 75°(V)
Min. Illumination: 0.00003Lux
Antenna Weight: 1.5g(IPEX)
Polar cam: 24×19×19mm
Input Power: 7.4-26.4V
Coaxial Cable: 120mm
LENS: F/1.6
Vista: 30×29×13.5mm
Aspect Ratio: 16:9
Antenna: 105mm

Includes

1x Polar Vista Kit (in silver or coffee colors)
6x M2 screws 3/4/5mm
4x Gasket Ring
1x 3-in-1 cable
1x Menu cable


The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a r

Caddx Polar Micro Starlight Vista Kit - Choose Color

1/1.8 - inch HD Digital Starlight SensorLow latency HD image transmission New 1.5g lightweight antennaCustom F/1.6 Large Aperture LensExcellent Image Quality &amp Brilliant True ColorsSupport Brightness &amp Saturation AdjustmentMenu Board not Included1.5g Antenna ipex

Caddx Polar Vista Starlight Micro Digital FPV Camera Kit Silver - www.readymaderc.com

Caddx Polar Vista Starlight Micro Digital FPV Camera Kit Silver

The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!
Check out all our DJI-compatible gear and our CADDX product selection!

Features

Lightweight digital image transmission combination
Stable and clear HD video
720p 60fps, 32ms/4km
8 channels, 8 drones



Specification

Transmitter Power(EIPP): FCC/SRRC: &amplt30dBm CE: &amplt14dBm
Max.Transmission Distance: FCC/SRRC:4kmCE:0.7km
Operating Temperature Range: 0°to 40°C（32°to 104°F）
Image Sensor: 1/1.8&quot Inch 2.3Mega starlight sensor
Supported Flight Control System: BetaFlight
Min.Latency(end-to-end): 720p 60fps&amplt32ms
Polar vista kit Weight (Include camera): 28g
Operating Frequency: 5.725-5.850GHz
I/O Interface: USB-C,IPEX,3-in-1 port
FOV: 162°(D) 138°(H) 75°(V)
Min. Illumination: 0.00003Lux
Antenna Weight: 1.5g(IPEX)
Polar cam: 24×19×19mm
Input Power: 7.4-26.4V
Coaxial Cable: 120mm
LENS: F/1.6
Vista: 30×29×13.5mm
Aspect Ratio: 16:9
Antenna: 105mm

Includes

1x Polar Vista Kit (in silver or coffee colors)
6x M2 screws 3/4/5mm
4x Gasket Ring
1x 3-in-1 cable
1x Menu cable


Caddx Polar Micro Starlight Vista Kit - Choose Color from WREKD Co.

The Caddx Polar Micro Vista Unit is an advanced video transmission module that supports a 5.8 GHz digital video signal and 720p 60fps image transmission, with a transmission range of up to 4km and a minimum end-to-end latency of 32 ms. The vista unit can be mounted on a racing drone and used with DJI FPV Goggles or a remote controller to transmit video, control signals, and flight controller information wirelessly!

Features

Lightweight digital image transmission combination
Stable and clear HD video
720p 60fps, 32ms/4km
8 channels, 8 drones



Specification

Transmitter Power(EIPP): FCC/SRRC: &lt30dBm CE: &lt14dBm
Max.Transmission Distance: FCC/SRRC:4kmCE:0.7km
Operating Temperature Range: 0°to 40°C（32°to 104°F）
Image Sensor: 1/1.8" Inch 2.3Mega starlight sensor
Supported Flight Control System: BetaFlight
Min.Latency(end-to-end): 720p 60fps&lt32ms
Polar vista kit Weight (Include camera): 28g
Operating Frequency: 5.725-5.850GHz
I/O Interface: USB-C,IPEX,3-in-1 port
FOV: 162°(D) 138°(H) 75°(V)
Min. Illumination: 0.00003Lux
Antenna Weight: 1.5g(IPEX)
Polar cam: 24×19×19mm
Input Power: 7.4-26.4V
Coaxial Cable: 120mm
LENS: F/1.6
Vista: 30×29×13.5mm
Aspect Ratio: 16:9
Antenna: 105mm

Includes

1x Polar Vista Kit (in silver or coffee colors)
6x M2 screws 3/4/5mm
4x Gasket Ring
1x 3-in-1 cable
1x Menu cable


The Caddx Polar Vista Kit is the best night vision digital HD Kit. It supports brightness and saturation adjustment. 1/1.8 inch starlight large sensor, with an excellent night vision. Min.Illumination: 0.00003 Lux, ultra low noisy. Excellent Image Quality, Brilliant True Colors.

CADDXFPV Polar Starlight Vista Kit | HD Digital Camera |FPV Drones Camera – CADDX FPV

CADDXFPV Polar Starlight Vista Kit

Caddx Polar Vista Kit Starlight Digital HD FPV System

Caddx Polar Vista Kit Starlight Digital HD DJI FPV System - RMRC

Caddx Polar Vista Kit Digital HD DJI FPV System

Caddx Air Unit Micro Kit for DJI

<div style="text-align: left"><span style="color: #000000">Only <a href="https://caddxfpv.com/collections/digital-cameras-1/products/air-unit-micro-camera" target="_blank" rel="noopener noreferrer">Caddx air unit micro camera</a> + cable left in stock (excluding Air Unit)</span></div>
<div style="text-align: left"><span style="color: #000000">Note: The camera will be packed in a static bag.</span></div>
<div style="text-align: left">
<div class="YQaNob" data-cp="1" data-is-ver="false" data-nnttsvi="1" data-sm="1" data-sugg-time="500" data-sugg-url="https://clients1.google.com/complete/search" data-uilc="zh-CN" id="tw-container">
<div jsname="gI9xcc" jsslot="1">
<div jscontroller="geqCid" jsdata="SANFE_B8xgqs" jsaction="uQxhTd:d4hecblWUBqb:TO5MWbIcWBXe:hLaFAeKFlBO:UuREqbM2HAEc:eNrnOdrcuQ6b:npT2md">
<div class="tw-src-ltr" id="tw-ob">
<div class="oSioSc">
<div id="tw-target">
<div id="kAz1tf" class="g9WsWb">
<h1 class="tw-ta-container hide-focus-ring tw-nfl" id="tw-target-text-container" tabindex="0">
<span style="color: #362121"></span><br>
</h1>
<br>
</div>
</div>
</div>
</div>
<h1 class="dURPtb"><br></h1>
<div jsname="gI9xcc" jsslot="1"><br></div>
</div>
</div>
</div>
<div class="KFFQ0c"><br></div>
<br>
</div>
<div style="text-align: left">
<img src="https://cdn.shopify.com/s/files/1/0036/3921/4169/files/CaddxFPV_Air_Unit_Micro_Version_Pre-order1_7c954fb1-6449-435b-93fc-8449b19a648e.jpg?v=1619604267" alt=""><img data-mce-fragment="1" src="https://cdn.shopify.com/s/files/1/0036/3921/4169/files/CaddxFPV_Air_Unit_Micro_Version_Pre-order2_6c5fb1fe-b49f-4d65-8023-7dbad644f266.jpg?v=1619604291" style="float: none" data-mce-src="https://cdn.shopify.com/s/files/1/0036/3921/4169/files/CaddxFPV_Air_Unit_Micro_Version_Pre-order2_6c5fb1fe-b49f-4d65-8023-7dbad644f266.jpg?v=1619604291">
</div>

The Caddx Air Unit Micro Version is a 19*19mm micro sized camera. Which is with 28ms Low-Latency, 720p/120fps Video Transmission. Anti- Interference Digital Transmission.

CaddxFPV Air Unit Micro Version for DJI Digital HD FPV System – CADDX FPV

Only Caddx air unit micro camera + cable left in stock (excluding Air Unit)
Note: The camera will be packed in a static bag.




























CADDXFPV Air Unit Micro Version

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas. Modern innovations, like a strong transmission system embedded remote controller receiver, and multi-antenna technology, is why the Air Unit can perform remarkably.

Caddx Air Unit Micro Version For DJI Digital HD FPV System - www.readymaderc.com

Caddx Air Unit Micro Version for DJI Digital HD FPV System

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas.Also see the&nbspCaddx Polar Micro Digital FPV Air Unit Camera Kit here.

The CaddxFPV Air Unit Micro Version is a 19x19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibil

FPV through the DJI Digital HD Air Unit. The way FPV is meant to be.&nbspThis is the Caddx DJI air unit with 120fps HD camera.

FPV through the DJI Digital HD Air Unit. The way FPV is meant to be. This is the Caddx DJI air unit with 120fps HD camera.

Caddx DJI Digital HD FPV Air Unit Kit

DJI revolutionized FPV with the development of their digital HD technology. This resulted in a huge upgrade from the original analog resolution to a fully digital 720p signal right in your goggles.
The DJI FPV Air Unit provides ultra-low latency HD digital image transmission, built-in 1080p/60fps DVR recording, and eight frequency channels to allow up to eight pilots to fly simultaneously.






Specifications

WeightAir Unit (Camera included): 45.8 g3.9 g (MMCX elbow each)
DimensionsAir Unit: 44 × 37.8 × 14.4 mmCamera: 27.4 × 21.1 × 20.1 mmCoaxial Cable: 100 mm
Operating Frequency: 5.725-5.850 GHzTransmitter Power (EIRP): FCC/SRRC: &lt30 dBm CE: &lt14 dBm
Min. Latency (end-to-end)Low Latency Mode (720p/120fps): &lt28 msHigh-Quality Mode (720p/60fps): &lt40 ms
Max. Transmission Distance: FCC/SRRC: &lt4 km CE: &lt0.7 kmVideo Format: MP4 (Video format: H.264 Audio format: ACC-LC)I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slotOperating Temperature Range: 32° to 104°F (0° to 40°C)Input Power: 7.4-17.6 V, about 4-9 WSensor: 1/3.2'' CMOS Effective Pixels: 4 MLens: 2.1 mm, f/2.1Shutter: Rolling shutterISO: 100-25600FOV: 150°(D) 122°(H) 93°(V)Dimension: 22.1 × 21.1 × 20.1 mmWeight: 8.2 g
Channels: 8Channels InfoFCCChannel 1: 5660Channel 2: 5695Channel 3: 5735Channel 4: 5770Channel 5: 5805Channel 6: 5878Channel 7: 5914Channel 8: 5839
Compatibility

DJI FPV Goggles
DJI FPV Remote Controller

Tips
The air unit may become hot during or after operation.DO NOT touch the air unit before it cools down.DO NOT use the air unit for an extended period when there is no external cooling equipment. Otherwise, the air unit may overheat and enter overheat protection mode. Keep the antennas of the air unit at least 40 mm apart.Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
Includes

DJI FPV Air Unit (with camera and four M2 screws) × 1
Three-in-one cable × 1
Antenna (MMCX elbow) × 2



DJI revolutionized FPV with the development of their digital HD technology. This resulted in a huge upgrade from the original analog resolution to a fully digital 720p signal right in your goggles.  The DJI FPV Air Unit provides ultra-low latency HD digital image transmission, built-in 1080p/60fps DVR recording, and ei

Caddx DJI FPV Air Unit

The Original DJI Digital HD FPV Air Unit Kit is back - Limited Quantities Available! This is&nbspthe original DJI Air Unit with 120fps HD camera.

The Original DJI Digital HD FPV Air Unit Kit is back - Limited Quantities Available! This is the original DJI Air Unit with 120fps HD camera.

DJI Digital HD FPV Air Unit Kit - Original Version

Caddx Nebula Pro Vista Kit for DJI

The Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System is the next generation Vista set with new and improved Nebula Pro camera. The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signa

Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital System For DJI FPV










Capture stunning aerial video with the Caddx Nebula Pro Vista Kit. This lightweight kit comes with a 12cm cable and is designed to ensure a clear, high quality image. The Pro Vista Kit produces vibrant colors, deep contrast, and sharp details with minimal distortion.
The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.
User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well mount on racing drones!









Check out the entire DJI System product line, our DJI compatible gear and our CADDX selection!
Features

Lightweight digital image transmission combination
Embedded Remote Controller Receiver
Stable and clear HD video
720p/120fps
28ms of latency over 4km
27g weight
8 video channels


Specifications

Model: Nebula Pro Vista Kit
Weight: Vista Kit(camera included): 25g
Weight(Antenna): 1.5g
Dimensions(Vista Kit): 30 x 29 x 13mm
Dimensions(Camera): 19 x 19 x 20mm
Dimensions(Coaxial Cable): 120mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIPP): FCC/SRRC/MIC: &lt30dBm
CE: &lt14dBM
Min. Latency(end-to-end): Low Latency Mode(720p 120fps): 21-28ms
Max. Transmission Distance: FCC/SRRC: 4km CE: 0.7km
I/O Interface: USB-C, IPEX, 3-in-1port
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-26.4V
Power Output: 25W/200mW/500mW/700mW
Hardware Included: Vista/Nebula pro/coaxial-cable/antenna
Goggles: Work with DJI goggles
Camera(sensor): 1/3" CMOS
Camera(Lens): 2.1mm
Camera(Shutter): Rolling Shutter
Camera(FOV): 150°(D)122°(H)93°(V)

Includes

Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black


Capture stunning aerial video with the Caddx Nebula Pro Vista Kit. This lightweight kit comes with a 12cm cable and is designed to ensure a clear, high quality image. The Pro Vista Kit produces vibrant colors, deep contrast, and sharp details with minimal distortion.  The Caddx Nebula Pro Digital FPV Camera Kit is anot

Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black










Capture stunning aerial video with the Caddx Nebula Pro Vista Kit. This lightweight kit comes with a 12cm cable and is designed to ensure a clear, high quality image. The Pro Vista Kit produces vibrant colors, deep contrast, and sharp details with minimal distortion.
The Caddx Nebula Pro Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Caddx Nebula Pro with Vista is designed for FPV drones and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.
User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well mount on racing drones!









Check out the entire DJI System product line, our DJI compatible gear and our CADDX selection!
Features

Lightweight digital image transmission combination
Embedded Remote Controller Receiver
Stable and clear HD video
720p/120fps
28ms of latency over 4km
27g weight
8 video channels


Specifications

Model: Nebula Pro Vista Kit
Weight: Vista Kit(camera included): 25g
Weight(Antenna): 1.5g
Dimensions(Vista Kit): 30 x 29 x 13mm
Dimensions(Camera): 19 x 19 x 20mm
Dimensions(Coaxial Cable): 120mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIPP): FCC/SRRC/MIC: &amplt30dBm
CE: &amplt14dBM
Min. Latency(end-to-end): Low Latency Mode(720p 120fps): 21-28ms
Max. Transmission Distance: FCC/SRRC: 4km CE: 0.7km
I/O Interface: USB-C, IPEX, 3-in-1port
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Input Power: 7.4-26.4V
Power Output: 25W/200mW/500mW/700mW
Hardware Included: Vista/Nebula pro/coaxial-cable/antenna
Goggles: Work with DJI goggles
Camera(sensor): 1/3&quot CMOS
Camera(Lens): 2.1mm
Camera(Shutter): Rolling Shutter
Camera(FOV): 150°(D)122°(H)93°(V)

Includes

Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black


Caddx Nebula Pro Vista Kit w/ 12cm Cable - Black from WREKD Co.

The Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System is the next generation Vista set with new and improved Nebula Pro camera.

Caddx Nebula Pro Vista Kit 720p/120fps Low Latency HD Digital FPV System

The Caddx Nebula Pro with Vista is designed for FPV drones. Provide digital high-definition picture and transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

CADDXFPV Nebula Pro Vista Kit FPV Digital Camera | HD FPV Drones Camera – CADDX FPV

CADDXFPV Nebula Pro Vista Kit

DJI O3 Air Unit

Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition and low latency - even at long distances.

Summary


Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and at long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft.
DJI O3+ Flagship Transmission
Transform your video transmission experience. It supports a max video transmission quality of 1080p/100fps from up to 10 km. [1]
Next-Level Imaging Performance
Equipped with a 1/1.7-inch sensor, the DJI O3 Air Unit can shoot 4K/60fps video with a 155° super-wide FOV, giving you richer image details. It also comes with 20GB built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32).
Canvas Mode
Canvas Mode lets you customize the OSD information on the screens of DJI Goggles 2 or DJI FPV Goggles V2, and adjust PID parameters.
Compact and Richly Compatible
Packed with richer compatibility in a lightweight body. DJI Goggles 2 and DJI FPV Remote Controller 2 are also smaller in size. [5]





Cameras


 	Matrix:  1/1. 7ª CMOS Effective pixels: 48 MP
 	Lens:  Fiek of View (FOV): 155* Equivalent Focal Length: 12.7mm Focal Length. 2.34mm
 	Aperture: 62 8 Focus Mode: FF Focus Range: 0.6m to w
 	ISO range:  100-6400(Auto) 100-25600(Manual)
 	Snapshot:  Roll Shutter
 	Field of View (FOV):  155°
 	Video resolution:
 	With D.I Goggles 2 4K @ 50/60FPS 2.7K @ 50160/100FPS 1080p @50/60/100FPS
 	With DJI FPV Goggles V2: 4K &ampamp 50/00FPS 2.7K 50/60/100/120FPS @ 1080p 50160/100/120FPS
 	Video Format:  MP4
 	Electronic Image Stabilization (EIS):  The product supports RockSteady technology.
 	Libra:  Approx. 8.3 g (including coaxial cable)

Air Unit Module


 	Libra:  Air Unit (without Camera Unit): Approx. 28g Air Unit (including Camera Unit) Approx. 36.4g
 	Antenna: Approx. 3g
 	Dimensions (L× W x H):
 	Transmission module: 325 x 30.5 x 11.5 mm (L x W x H)
 	Camera module. 21.2 x 20 x 19.5 mm (Lx W x H)
 	Coaxial cable: 115 mm (length ) 3-in-1 cable: 100mm(length) Antenna. 85mm (length)
 	Communication frequency:  2.400-2.4835 GHz (RX only) 5.725-5.850 GHz (RX and TX)
 	Transmission power (EIRP) :  FCC: «33dBm CE. &amplt14dBm SRRC: «30dBm
 	Live view quality and and delay:
 	With DJI FPV Goggles V2:810p/120FPS video transmission quality. less than 28ms alency. 810p/60fps video steaming quality. less than 40ms latency
 	With DJI FPV Goggles 2: 1080p/80FPS video streeming quality:less than 30ms latency. 1080p/60FPS video streaming quality: less than 40ms latency.
 	Video transmission range:  10km (FCC), 2km (CE) 6km (SRRC)
 	Flight controller software supported:  Compatible with flight controller software that supports Betaflight Please see product FAQ for more information.
 	Input voltage:  7.4.26 4V
 	Working temperature:  10°C to 10°C (14°F to 104°F)
 	Channels:  Auto mode support
 	Manual mode support: 40 MHz: 1 channel: 20MHz 3 channels10MHz: 32 channels
 	Channel information: FCC / SRRO / CE: 40 MHz: Ch 1: 5794 5 MHz 20 MHz / 10 MHz: Ch 1: 5768.5MHz Ch 2: 5804.5 MHz Ch 3: 5839.5 MHz
 	Supported SD cards:  microSD (up to 256GB)
 	Recommended microSD cards:
 	DJI Goggles supported
 	SanDisk Extreme U3 V30 A1 32GB
 	microSDXC SanDisk Extreme Pro U3 V30 A132GB
 	microSDXC Kingston Canvas GolPlus U3 V30 A2 64GB
 	microSOXCKingston Canvas React Plus U3 V90 A1 64GB
 	microSDXC Kingston Canvas ReactPlus U3 V90 A1 128GB
 	microSDXC Kingston Canvas React Plus U3 V90 A1256GB
 	microSDXC Samsung PRO PlUS U3 V30 A2 256GB
 	DJI Goggles Supported:  DJI Goggles 2 and DJI FPV Goggles V2
 	Supported DJI remote controllers:  DJI FPV Remote Controller 2

DJI O3 ANTENNA

 	Polarization: Dual-band dual-polarized
 	Weight: Approx. 3g
 	Connector: I-PEX
 	Length: 85 mm




Tips


1. Using DJI Goggles 2 and tested in an outdoor open environment without interference.

2. The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.

3. 4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

4. Sold separately.

5. Compared with DJI FPV Goggles V2 and DJI FPV Remote Controller.




Included


DJI O3 Air Unit Camera Module × 1

DJI O3 Air Unit Transmission Module × 1

DJI O3 Air Unit Antenna × 1

DJI O3 Air Unit 3-in-1 Cable × 1




Compatibility


 	DJI Goggles 2
 	DJI FPV Goggles V2
 	DJI FPV Remote Controller 2

Summary Integrating DJI’s cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and at long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft. [...]

DJI O3 Air Unit - GEPRC

Integrating DJI&#39s cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity.

DJI O3 Air Unit - RMRC

DJI O3 Air Unit with Camera, Air Unit Module, Antenna


DJI O3 Air Unit - Go the Distance

State-of-the-art DJI transmission technology enclosed in a lightweight, compact design? See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!


Enjoy flagship video streaming

Get powerful video transmission capabilities - The DJI O3 Air Unit supports DJI's flagship O3+ technology. This allows you to control the drone while enjoying the shortest response time and clear, sharp live feed. The device also has built-in 2T2R Omni-directional antennas, which guarantee greater stability and smoother transmission. Set off on your next adventure in the skies and experience an unforgettable experience!
See Even More
Get an even clearer and smoother live view. The DJI O3 Air Unit can stream video at resolutions up to 1080p, offering frame rates up to 100FPS. H.265 codec. The result is fantastic image quality. With the DJI O3 Air Unit, you will discover a new dimension of sky travel and provide yourself with an unforgettable experience!
Built-in 1080p micro OLED screens
Get even more realism on your next flight. DJI Goggles 2 are equipped with two HD micro OLED screens, which are distinguished by a refresh rate of up to 100Hz and guarantee incredible clarity. Thanks to this, you will feel as if you are actually looking at the world from under the clouds!
Create even greater images
Be amazed by the improved performance of the DJI O3 Air Unit. The camera module of the device offers 20 GB of built-in memory and is equipped with a 1/1.7-inch matrix. As a result, you can enjoy excellent picture quality and incredible detail Thanks to the solutions used, you can easily record a stable 4K/60FPS movie, and the super-wide 155° field of view will allow you to fit much more in the frame! The module is also distinguished by its f/2.8 aperture and 12.7mm equivalent focal length. Check what else will surprise you!
Enter the world of colors
Vivid, natural colors? Find out how easy it is! Try the D-Cinelike mode and gain more freedom when color grading in post-production. However, the possibilities don't end there! The DJI O3 Air Unit camera module is perfect for use with DJI Avata ND filters (ND8/16/32), which are made of the highest quality materials and allow flexible aperture control. They also allow hassle-free exposure selection. All this translates into natural, faithfully reproduced colors and an interesting contrast between light and shadow.
Customize it
The DJI O3 Air Unit features a lightweight, compact design and wide compatibility. This means that you will successfully use it in various configurations. In combination with the DJI Goggles 2 and the DJI FPV Remote Controller 2 apparatus will provide you with complete mobility and freedom! Moreover, the device supports Canvas mode. This allows you to customize the information displayed on the DJI Goggles 2 or DJI FPV Goggles V2 screens. Set the PID parameters and configure the system to best suit your habits!
Say goodbye to limitations - compatibility with various DJI devices
Get more opportunities. The DJI O3 Air Unit is compatible with the DJI FPV Goggles V2, which offers O3 video transmission, high resolution, long-range, high noise immunity, and low latency. It also works with DJI Goggles 2, which are distinguished by a lighter, smaller design and have built-in micro-OLED screens. The device also works in conjunction with the DJI FPV Remote Controller 2, which is ergonomically shaped, equipped with Hall effect sticks, and allows you to use the M mode that allows you to perform even extremely complex maneuvers.
Features:


DJI O3+ Flagship Transmission: Transform your video transmission experience. It supports a max video transmission quality of 1080p/100fps from up to 10 km.

Next-Level Imaging Performance: Equipped with a 1/1.7-inch sensor, the DJI O3 Air Unit can shoot 4K/60fps video with a 155° super-wide FOV, giving you richer image details. It also comes with 20GB of built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32).

Canvas Mode: Canvas Mode lets you customize the OSD information on the screens of DJI Goggles 2 or DJI FPV Goggles V2, and adjust PID parameters.

Compact and Richly Compatible: Packed with richer compatibility in a lightweight body. DJI Goggles 2 and DJI FPV Remote Controller 2 are also smaller in size.


Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft.






Specifications:
Camera:


Matrix: 1/1.7" CMOS Effective Pixels: 48MP

Lens: Field of View (FOV): 155° Equivalent Focal Length: 12.7mm Focal Length: 2.34mm Aperture: f/2.8 Focus Mode: FF Focus Range: 0.6m to ∞.

ISO range: 100-6400 (Auto) 100-25600 (Manual)

Snapshot: Roll Shutter

Field of View (FOV): 155°
Video resolution:

With DJI Goggles 2: 4K @ 50/60FPS 2.7K @ 50/60/100FPS 1080p @ 50/60/100FPS
With DJI FPV Goggles V2: 4K @ 50/60FPS 2.7K @ 50/60/100/120FPS @ 1080p 50/60/100/120FPS


Video Format: MP4

Electronic Image Stabilization (EIS): The product supports RockSteady technology.

Weight: 8.3g (including coaxial cable)

Air Unit Module:


Weight:

Air Unit (without Camera Unit): Approx. 28g
Air Unit (including Camera Unit): Approx. 36.4g
Antenna: Approx. 3g

Dimensions (L x W x H):

Transmission module: 32.5 x 30.5 x 14.5mm (L x W x H)
Camera module: 21.2 x 20 x 19.5mm (L x W x H)
Coaxial cable: 115mm (length )
3-in-1 cable: 100mm (length)
Antenna: 85mm (length)


Communication frequency:

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)


Transmission power (EIRP): FCC: &lt33dBm CE: &lt14dBm SRRC: &lt30dBm
Live view quality and end delay:

With DJI FPV Goggles V2: 810p/120FPS video transmission quality: less than 28ms latency. 810p/60FPS video streaming quality: less than 40ms latency.
With DJI Goggles 2: 1080p/60FPS video streaming quality: less than 30ms latency. 1080p/60FPS video streaming quality: less than 40ms latency.


Video Transmission Range: 10km (FCC), 2km (CE), 6km (SRRC)

Flight controller software supported: Compatibility with flight controller software that supports Betaflight. Please see the product FAQ for more information.

Input Voltage: 7.4-26.4V

Working temperature: -10°C to 40°C (14°F to 104°F)

Channels: Auto mode support Manual mode support: 40 MHz: 1 channel 20MHz: 3 channels 10MHz: 3channels

Channel information: FCC / SRRC / CE: 40 MHz: Ch 1: 5794.5 MHz 20 MHz / 10 MHz: Ch 1: 5768.5 MHz Ch 2: 5804.5 MHz Ch 3: 5839.5 MHz

Supported SD cards: MicroSD (up to 256GB)
Recommended MicroSD cards:

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC


DJI Goggles supported: DJI Goggles 2 and DJI FPV Goggles V2

Supported DJI remote controllers: DJI FPV Remote Controller 2

Tips

Using DJI Goggles 2 and tested in an outdoor open environment without interference.
The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

Includes:

1x DJI O3 Air Unit Camera Module
1x DJI O3 Air Unit Transmission Module
1x DJI O3 Air Unit Antenna
1x DJI O3 Air Unit 3-in-1 Cable





DJI O3 Air Unit - Go the Distance State-of-the-art DJI transmission technology enclosed in a lightweight, compact design? See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take yo

DJI O3 Air Unit Kit (w/ camera module & antennas) from WREKD Co.

DJI O3 Air Unit Kit (w/ camera module & antennas)




About this product





The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!






Note: The new DJI O3 Air Unit can draw close to 2A under certain settings. Please verify that your flight controller is capable of 9V / 2A. If not, please consider powering the Air Unit directly from battery +/- on the flight controller or by using a standalone voltage regulator that supplies the required 2A.


Introducing the DJI O3 Air Unit

















Features


Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size












DJI O3 CAMERA


The camera module of the device offers 20 GB of built-in memory and is equipped with a 1/1.7-inch matrix. As a result, you can enjoy excellent image quality and incredible detail. Thanks to the solutions used, you can easily record a stable 4K/60FPS movie, and the super-wide 155° field of view will allow you to fit much more in the frame! The module is also distinguished by its f/2.8 aperture and 12.7mm equivalent focal length.  It also comes with 20GB of built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). The features will surprise you!






DJI O3+ FLAGSHIP TRANSMISSION


Transform your video transmission experience. The DJI O3 supports a max video transmission quality of 1080p/100fps from up to 10 km.






SAY GOODBYE TO LIMITATIONS


Get more opportunities. The DJI O3 Air Unit is compatible with the DJI FPV Goggles V2, which offers O3 video transmission, high resolution, long-range, high noise immunity, and low latency. It also works with DJI Goggles 2, which are distinguished by a lighter, smaller design and have built-in micro-OLED screens. The device also works in conjunction with the DJI FPV Remote Controller 2, which is ergonomically shaped, equipped with Hall effect sticks, and allows you to use the M mode that allows you to perform even extremely complex maneuvers.






CUSTOMIZABLE


The DJI O3 Air Unit features a lightweight, compact design and wide compatibility. This means that you will successfully use it in various configurations. In combination with the DJI Goggles 2 and the DJI FPV Remote Controller 2 apparatus, it will provide you with complete mobility and freedom!






CANVAS MODE


Canvas Mode allows you to customize the information displayed on the DJI Goggles 2 or DJI FPV Goggles V2 screens. Set the PID parameters and configure the system to best suit your habits!





Specifications

DJI O3 AIR UNIT

Live View Quality and End-to-End Latency:

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.


With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms."




Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
Channels:

Supports auto mode
Supports manual mode: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels


Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI Remote Controller: DJI FPV Remote Controller 2
Recommended microSD Cards:

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC"


 Weight:

Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g


Operating Temperature: -10º to 40º C (14° to 104° F)
Dimensions:

Transmission Module: 32.5×30.5×14.5 mm
Camera Module: 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm


Supported SD Cards: microSD (up to 256 GB)
Communication Frequency:

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)


Channels Info:

FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz


Transmission Power (EIRP):

FCC: &lt 33 dBm
CE: &lt 14 dBm
SRRC: &lt 30 dBm


Input Voltage: 7.4-26.4 V
Cable: 3-in-1 100mm



DJI O3 CAMERA

Weight: Approx. 8.3 g (coaxial cable included)
Lens:

FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞


Video Resolution:

With DJI Goggles 2:

4K@50/60fps
2.7K@50/60/100fps
1080p@50/60/100fps


With DJI FPV Goggles V2:

4K@50/60fps
2.7K@50/60/100/120fps
1080p@50/60/100/120fps




Sensor: 1/1.7-inch CMOS
ISO Range:

100-6400 (Auto)
100-25600 (Manual)


EIS: Supports RockSteady
Shutter: Rolling Shutter
Effective Pixels: 48 MP
Video Format: MP4
FOV: 155°



DJI O3 ANTENNA

Polarization: Dual-band dual-polarized
Weight: Approx. 3g
Connector: I-PEX
Length: 85 mm







IMPORTANT NOTES



The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
The 2.4GHz and 5.8GHz frequency bands are supported for receiving, and only the 5.8GHz frequency band is supported for transmitting. Some countries or regions do not support the 5.8 GHz band. Please check local regulations before use and strictly follow them.
Video latency data varies depending on the headset you use. With DJI Goggles 2 at 1080p/100fps video transmission quality, the lowest latency is 30ms. With DJI FPV Goggles V2, at 810p/120fps video transmission quality, the latency does not exceed 28 ms.
Compared to using DJI FPV Goggles V2 and DJI FPV Remote Controller.4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.

4K/60FPS videos only support 16:9 aspect ratio. A 4:3 aspect ratio is not supported.
Video transmission bitrate may vary depending on the operating environment.






Includes






1x DJI O3 Air Unit Transmission Module
1x DJI O3 Air Unit 3-in-1 Cable
1x DJI O3 Air Unit Antenna
1x DJI O3 Air Unit Camera
















About this product The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 A

About this product The DJI O3 Air Unit is finally here! Integrating DJI&#x27s cutting-edge video transmission technology into a lightweight and compact body the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight compact design. See for yourself that it&#x27s possible! The DJI O3 Air

About this product The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight compact design. See for yourself that it's possible! The DJI O3 Air

The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provid




The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!






Introducing the DJI O3 Air Unit














Features


Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size












DJI O3 CAMERA


The camera module of the device offers 20 GB of built-in memory and is equipped with a 1/1.7-inch matrix. As a result, you can enjoy excellent image quality and incredible detail. Thanks to the solutions used, you can easily record a stable 4K/60FPS movie, and the super-wide 155° field of view will allow you to fit much more in the frame! The module is also distinguished by its f/2.8 aperture and 12.7mm equivalent focal length.  It also comes with 20GB of built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). The features will surprise you!






DJI O3+ FLAGSHIP TRANSMISSION


Transform your video transmission experience. The DJI O3 supports a max video transmission quality of 1080p/100fps from up to 10 km.






SAY GOODBYE TO LIMITATIONS


Get more opportunities. The DJI O3 Air Unit is compatible with the DJI FPV Goggles V2, which offers O3 video transmission, high resolution, long-range, high noise immunity, and low latency. It also works with DJI Goggles 2, which are distinguished by a lighter, smaller design and have built-in micro-OLED screens. The device also works in conjunction with the DJI FPV Remote Controller 2, which is ergonomically shaped, equipped with Hall effect sticks, and allows you to use the M mode that allows you to perform even extremely complex maneuvers.






CUSTOMIZABLE


The DJI O3 Air Unit features a lightweight, compact design and wide compatibility. This means that you will successfully use it in various configurations. In combination with the DJI Goggles 2 and the DJI FPV Remote Controller 2 apparatus, it will provide you with complete mobility and freedom!






CANVAS MODE


Canvas Mode allows you to customize the information displayed on the DJI Goggles 2 or DJI FPV Goggles V2 screens. Set the PID parameters and configure the system to best suit your habits!





Specifications

DJI O3 AIR UNIT

Live View Quality and End-to-End Latency:

With DJI FPV Goggles V2:

810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.


With DJI Goggles 2:

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms."




Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
Channels:

Supports auto mode
Supports manual mode: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels


Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI Remote Controller: DJI FPV Remote Controller 2
Recommended microSD Cards:

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC"


 Weight:

Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g


Operating Temperature: -10º to 40º C (14° to 104° F)
Dimensions:

Transmission Module: 32.5×30.5×14.5 mm
Camera Module: 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm


Supported SD Cards: microSD (up to 256 GB)
Communication Frequency:

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)


Channels Info:

FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz


Transmission Power (EIRP):

FCC: &lt 33 dBm
CE: &lt 14 dBm
SRRC: &lt 30 dBm


Input Voltage: 7.4-26.4 V
Cable: 3-in-1 100mm



DJI O3 CAMERA

Weight: Approx. 8.3 g (coaxial cable included)
Lens:

FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞


Video Resolution:

With DJI Goggles 2:

4K@50/60fps
2.7K@50/60/100fps
1080p@50/60/100fps


With DJI FPV Goggles V2:

4K@50/60fps
2.7K@50/60/100/120fps
1080p@50/60/100/120fps




Sensor: 1/1.7-inch CMOS
ISO Range:

100-6400 (Auto)
100-25600 (Manual)


EIS: Supports RockSteady
Shutter: Rolling Shutter
Effective Pixels: 48 MP
Video Format: MP4
FOV: 155°



DJI O3 ANTENNA

Polarization: Dual-band dual-polarized
Weight: Approx. 3g
Connector: I-PEX
Length: 85 mm







IMPORTANT NOTES



The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
The 2.4GHz and 5.8GHz frequency bands are supported for receiving, and only the 5.8GHz frequency band is supported for transmitting. Some countries or regions do not support the 5.8 GHz band. Please check local regulations before use and strictly follow them.
Video latency data varies depending on the headset you use. With DJI Goggles 2 at 1080p/100fps video transmission quality, the lowest latency is 30ms. With DJI FPV Goggles V2, at 810p/120fps video transmission quality, the latency does not exceed 28 ms.
Compared to using DJI FPV Goggles V2 and DJI FPV Remote Controller.4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.

4K/60FPS videos only support 16:9 aspect ratio. A 4:3 aspect ratio is not supported.
Video transmission bitrate may vary depending on the operating environment.






Includes


1x DJI O3 Air Unit Transmission Module
1x DJI O3 Air Unit 3-in-1 Cable
1x DJI O3 Air Unit Antenna
1x DJI O3 Air Unit Camera

Recommended Accessories

DJI FPV Goggles 2

DJI FPV Remote Controller 2


Wiring Diagram





DJI O3 Air Unit for DJI HD Video System

The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels! Introducing the DJI O3 Air Unit Features Works with DJI FPV Goggles

My Store

The DJI O3 Air Unit is finally here! Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features state-of-the-art DJI transmission technology enclosed in a lightweight, compact design. See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!https://youtu.be/-WdDhgIzkEQ

FEATURES


Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size















DJI O3 CAMERA



The camera module of the device offers 20 GB of built-in memory and is equipped with a 1/1.7-inch matrix. As a result, you can enjoy excellent image quality and incredible detail. Thanks to the solutions used, you can easily record a stable 4K/60FPS movie, and the super-wide 155° field of view will allow you to fit much more in the frame! The module is also distinguished by its f/2.8 aperture and 12.7mm equivalent focal length.  It also comes with 20GB of built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). The features will surprise you!








DJI O3+ FLAGSHIP TRANSMISSION



Transform your video transmission experience. The DJI O3 supports a max video transmission quality of 1080p/100fps from up to 10 km.








SAY GOODBYE TO LIMITATIONS



Get more opportunities. The DJI O3 Air Unit is compatible with the DJI FPV Goggles V2, which offers O3 video transmission, high resolution, long-range, high noise immunity, and low latency. It also works with DJI Goggles 2, which are distinguished by a lighter, smaller design and have built-in micro-OLED screens. The device also works in conjunction with the DJI FPV Remote Controller 2, which is ergonomically shaped, equipped with Hall effect sticks, and allows you to use the M mode that allows you to perform even extremely complex maneuvers.








CUSTOMIZABLE



The DJI O3 Air Unit features a lightweight, compact design and wide compatibility. This means that you will successfully use it in various configurations. In combination with the DJI Goggles 2 and the DJI FPV Remote Controller 2 apparatus, it will provide you with complete mobility and freedom!








CANVAS MODE



Canvas Mode allows you to customize the information displayed on the DJI Goggles 2 or DJI FPV Goggles V2 screens. Set the PID parameters and configure the system to best suit your habits!







SPECIFICATIONS

DJI O3 AIR UNIT

Live View Quality and End-to-End Latency:
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.




With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms."








Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
Channels:
Supports auto mode
Supports manual mode: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels




Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI Remote Controller: DJI FPV Remote Controller 2
Recommended microSD Cards:
SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC"




 Weight:
Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g




Operating Temperature: -10º to 40º C (14° to 104° F)
Dimensions:
Transmission Module: 32.5×30.5×14.5 mm
Camera Module: 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm




Supported SD Cards: microSD (up to 256 GB)
Communication Frequency:
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)




Channels Info:
FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz




Transmission Power (EIRP):
FCC: &lt 33 dBm
CE: &lt 14 dBm
SRRC: &lt 30 dBm




Input Voltage: 7.4-26.4 V
Cable: 3-in-1 100mm





DJI O3 CAMERA

Weight: Approx. 8.3 g (coaxial cable included)
Lens:
FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞




Video Resolution:
With DJI Goggles 2:
4K@50/60/100fps
2.7K@50/60/100fps
1080p@50/60/100fps




With DJI FPV Goggles V2:
4K@50/60/100/120fps
2.7K@50/60/100/120fps
1080p@50/60/100/120fps








Sensor: 1/1.7-inch CMOS
ISO Range:
100-6400 (Auto)
100-25600 (Manual)




EIS: Supports RockSteady
Shutter: Rolling Shutter
Effective Pixels: 48 MP
Video Format: MP4
FOV: 155°





DJI O3 ANTENNA

Polarization: Dual-band dual-polarized
Weight: Approx. 3g
Connector: I-PEX
Length: 85 mm










IMPORTANT NOTES




The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
The 2.4GHz and 5.8GHz frequency bands are supported for receiving, and only the 5.8GHz frequency band is supported for transmitting. Some countries or regions do not support the 5.8 GHz band. Please check local regulations before use and strictly follow them.
Video latency data varies depending on the headset you use. With DJI Goggles 2 at 1080p/100fps video transmission quality, the lowest latency is 30ms. With DJI FPV Goggles V2, at 810p/120fps video transmission quality, the latency does not exceed 28 ms.
Compared to using DJI FPV Goggles V2 and DJI FPV Remote Controller.4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.
This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.
4K/60FPS videos only support 16:9 aspect ratio. A 4:3 aspect ratio is not supported.
Video transmission bitrate may vary depending on the operating environment.









INCLUDES

1x DJI O3 Air Unit Transmission Module
1x DJI O3 Air Unit 3-in-1 Cable
1x DJI O3 Air Unit Antenna
1x DJI O3 Air Unit Camera


https://youtu.be/OugMoITCZSs

https://youtu.be/nzNSGr8Ekv0






 Listed with ExportYourStore.com

DJI 03 Air Unit For Sale

Flywoo

Flywoo Naked O3 Ultra Air Unit Kit - Camera, VTX Module, Antennas

Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stability and reliability, providing greater maneuverability and extended flight time. Flywoo aims to meet the demands of drone enthusiasts, delivering excellent visual and control experience. Included with this kit is the naked O3 camera, naked O3 Ultra VTX, antenna, clear UV lens, and hardware.
Overall, the Flywoo Naked O3 Lite/Ultra Air Unit is an excellent product for those who looking to shave off some weight from their DJI O3 Air Unit. There are 3D printed alternatives, but the ease of use, precision and robustness of CNC parts are probably better bets. The design is well thought-out, and the conversion process is straightforward.

Check out our Flywoo selection and check out our other DJI O3 Products!



















Features


Equipped with high-definition real-time transmission and video recording functions, with the advantage of low latency transmission.
Lightweight, solves the weight problem of micro drones, reducing up to 37%~50% of the weight.
Lightweight 7075 aluminum alloy fixed frame, sturdy and reliable.
Improves the control experience of micro drones and increases flight time. Can also create 4K high-definition videos in indoor or small spaces.











Specifications


Product Dimensions:  21.2x20x17.9mm(CAM)/29.8x28.8x13.3mm (VTX)
Transmission Resolution:  1080/4K 120FPS
Product Model:  FLYWOO O3 Ultra
Product Weight: 18.3g (O3 Ultra)
Input Voltage: 7V-26V







Recommended (Not Included)


Flywoo Naked O3 ND Filter Set - ND4/ND8/ND16







Includes


1x Flywoo Naked O3 Ultra Air Unit (w/ camera module &ampamp antennas)





Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stab

Flywoo Naked O3 Ultra Air Unit (w/ Camera, VTX Module & Antennas) from WREKD Co.

Flywoo Naked O3 Ultra Air Unit (w/ Camera, VTX Module & Antennas)

FLYWOO

Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stability and reliability, providing greater maneuverability and extended flight time. Flywoo aims to meet the demands of drone enthusiasts, delivering excellent visual and control experience. Included with this kit is the naked O3 camera, naked O3 Ultra VTX, antenna, clear UV lens, and hardware.
Overall, the Flywoo Naked O3 Lite/Ultra Air Unit is an excellent product for those who looking to shave off some weight from their DJI O3 Air Unit. There are 3D printed alternatives, but the ease of use, precision and robustness of CNC parts are probably better bets. The design is well thought-out, and the conversion process is straightforward.

Check out our Flywoo selection and check out our other DJI O3 Products!



















Features


Equipped with high-definition real-time transmission and video recording functions, with the advantage of low latency transmission.
Lightweight, solves the weight problem of micro drones, reducing up to 37%~50% of the weight.
Lightweight 7075 aluminum alloy fixed frame, sturdy and reliable.
Improves the control experience of micro drones and increases flight time. Can also create 4K high-definition videos in indoor or small spaces.











Specifications


Product Dimensions:  21.2x20x17.9mm(CAM)/29.8x28.8x13.3mm (VTX)
Transmission Resolution:  1080/4K 120FPS
Product Model:  FLYWOO O3 Ultra
Product Weight: 18.3g (O3 Ultra)
Input Voltage: 7V-26V







Recommended (Not Included)


Flywoo Naked O3 ND Filter Set - ND4/ND8/ND16







Includes


1x Flywoo Naked O3 Ultra Air Unit (w/ camera module &amp antennas)





FLYWOO designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively.&nbsp

FLYWOO designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively.

Flywoo Naked O3 Ultra Air Unit

Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stability and reliability, providing greater maneuverability and extended flight time. Flywoo aims to meet the demands of drone enthusiasts, delivering excellent visual and control experience. Included with this kit is the naked O3 camera, naked O3 Ultra VTX, antenna, clear UV lens, and hardware.
Overall, the Flywoo Naked O3 Lite/Ultra Air Unit is an excellent product for those who looking to shave off some weight from their DJI O3 Air Unit. There are 3D printed alternatives, but the ease of use, precision and robustness of CNC parts are probably better bets. The design is well thought-out, and the conversion process is straightforward.














Features


Equipped with high-definition real-time transmission and video recording functions, with the advantage of low latency transmission.
Lightweight, solves the weight problem of micro drones, reducing up to 37%~50% of the weight.
Lightweight 7075 aluminum alloy fixed frame, sturdy and reliable.
Improves the control experience of micro drones and increases flight time. Can also create 4K high-definition videos in indoor or small spaces.











Specifications


Product Dimensions:  21.2x20x17.9mm(CAM)/29.8x28.8x13.3mm (VTX)
Transmission Resolution:  1080/4K 120FPS
Product Model:  FLYWOO O3 Ultra
Product Weight: 18.3g (O3 Ultra)
Input Voltage: 7V-26V






Includes


1x Flywoo Naked O3 Ultra Air Unit (w/ camera module &amp antennas)





Flywoo Naked O3 Lite Air Unit Kit - Camera, VTX Module, Antennas

FLYWOO designed the O3 Lite CNC modification kit, reducing weight by 37% respectively.&nbsp

FLYWOO designed the O3 Lite CNC modification kit, reducing weight by 37% respectively.

Flywoo Naked O3 Lite Air Unit




Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stability and reliability, providing greater maneuverability and extended flight time. Flywoo aims to meet the demands of drone enthusiasts, delivering excellent visual and control experience. Included with this kit is the naked O3 camera, naked O3 Lite VTX, antenna, clear UV lens, and hardware.
Overall, the Flywoo Naked O3 Lite/Ultra Air Unit is an excellent product for those who looking to shave off some weight from their DJI O3 Air Unit. There are 3D printed alternatives, but the ease of use, precision and robustness of CNC parts are probably better bets. The design is well thought-out, and the conversion process is straightforward.





















Features


Equipped with high-definition real-time transmission and video recording functions, with the advantage of low latency transmission.
Lightweight, solves the weight problem of micro drones, reducing up to 37%~50% of weight.
Lightweight 7075 aluminum alloy fixed frame, sturdy and reliable.
Improves the control experience of micro drones and increases flight time. Can also create 4K high-definition videos in indoor or small spaces.











Specifications


Product Dimensions:  21.2x20x17.9mm(CAM)/29.8x28.8x13.3mm (VTX)
Transmission Resolution:  1080/4K 120FPS
Product Model:  FLYWOO O3 LITE
Product Weight:  23.2g (O3 LITE)
Input Voltage: 7V-26V






Includes


1x Flywoo Naked O3 Lite Air Unit (w/ camera module &amp antennas)





Flywoo Naked O3 Lite Air Unit (w/ Camera, VTX Module & Antennas)




Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stability and reliability, providing greater maneuverability and extended flight time. Flywoo aims to meet the demands of drone enthusiasts, delivering excellent visual and control experience. Included with this kit is the naked O3 camera, naked O3 Lite VTX, antenna, clear UV lens, and hardware.
Overall, the Flywoo Naked O3 Lite/Ultra Air Unit is an excellent product for those who looking to shave off some weight from their DJI O3 Air Unit. There are 3D printed alternatives, but the ease of use, precision and robustness of CNC parts are probably better bets. The design is well thought-out, and the conversion process is straightforward.




Check out our Flywoo selection and check out our other DJI O3 Products!


















Features


Equipped with high-definition real-time transmission and video recording functions, with the advantage of low latency transmission.
Lightweight, solves the weight problem of micro drones, reducing up to 37%~50% of weight.
Lightweight 7075 aluminum alloy fixed frame, sturdy and reliable.
Improves the control experience of micro drones and increases flight time. Can also create 4K high-definition videos in indoor or small spaces.











Specifications


Product Dimensions:  21.2x20x17.9mm(CAM)/29.8x28.8x13.3mm (VTX)
Transmission Resolution:  1080/4K 120FPS
Product Model:  FLYWOO O3 LITE
Product Weight:  23.2g (O3 LITE)
Input Voltage: 7V-26V






Recommended (Not Included)


Flywoo Naked O3 ND Filter Set - ND4/ND8/ND16






Includes


1x Flywoo Naked O3 Lite Air Unit (w/ camera module &amp antennas)








Flywoo designed the O3 Ultra CNC modification kit, reducing weight by 50% respectively. This enables micro-drones to unlock their video creation potential and improves visual and control experience. Pilots can enjoy high-definition real-time transmission and smooth control in tight spaces. The modification ensures stability and reliability, providing greater maneuverability and extended flight time. Flywoo aims to meet the demands of drone enthusiasts, delivering excellent visual and control experience. Included with this kit is the naked O3 camera, naked O3 Lite VTX, antenna, clear UV lens, and hardware.
Overall, the Flywoo Naked O3 Lite/Ultra Air Unit is an excellent product for those who looking to shave off some weight from their DJI O3 Air Unit. There are 3D printed alternatives, but the ease of use, precision and robustness of CNC parts are probably better bets. The design is well thought-out, and the conversion process is straightforward.




Check out our Flywoo selection and check out our other DJI O3 Products!


















Features


Equipped with high-definition real-time transmission and video recording functions, with the advantage of low latency transmission.
Lightweight, solves the weight problem of micro drones, reducing up to 37%~50% of weight.
Lightweight 7075 aluminum alloy fixed frame, sturdy and reliable.
Improves the control experience of micro drones and increases flight time. Can also create 4K high-definition videos in indoor or small spaces.











Specifications


Product Dimensions:  21.2x20x17.9mm(CAM)/29.8x28.8x13.3mm (VTX)
Transmission Resolution:  1080/4K 120FPS
Product Model:  FLYWOO O3 LITE
Product Weight:  23.2g (O3 LITE)
Input Voltage: 7V-26V






Recommended (Not Included)


Flywoo Naked O3 ND Filter Set - ND4/ND8/ND16






Includes


1x Flywoo Naked O3 Lite Air Unit (w/ camera module &ampamp antennas)





Flywoo Naked O3 Lite Air Unit (w/ Camera, VTX Module & Antennas) from WREKD Co.

DJI O3 Air Unit Transmission Module

The DJI O3 Air Unit Transmission Module will take your FPV experience to a whole new level all in a lightweight and compact design!

DJI O3 Air Unit Transmission Module

                                     DJI O3 Air Unit - Go the Distance

State-of-the-art DJI transmission technology enclosed in a lightweight, compact design? See for yourself that it&#39s possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!

Enjoy flagship video streaming



Get powerful video transmission capabilities - The DJI O3 Air Unit supports DJI&#39s flagship O3+ technology. This allows you to control the drone while enjoying the shortest response time and clear, sharp live feed. The device also has built-in 2T2R Omni-directional antennas, which guarantee greater stability and smoother transmission. Set off on your next adventure in the skies and experience an unforgettable experience!
See Even More
Get an even clearer and smoother live view. The DJI O3 Air Unit can stream video at resolutions up to 1080p, offering frame rates up to 100FPS. H.265 codec. The result is fantastic image quality. With the DJI O3 Air Unit, you will discover a new dimension of sky travel and provide yourself with an unforgettable experience! Get even more realism on your next flight. Thanks to this, you will feel as if you are actually looking at the world from under the clouds!
Create even greater images
Be amazed by the improved performance of the DJI O3 Air Unit. The camera module of the device offers 20 GB of built-in memory and is equipped with a 1/1.7-inch matrix. As a result, you can enjoy excellent picture quality and incredible detail Thanks to the solutions used, you can easily record a stable 4K/60FPS movie, and the super-wide 155° field of view will allow you to fit much more in the frame! The module is also distinguished by its f/2.8 aperture and 12.7mm equivalent focal length. Check what else will surprise you!
Enter the world of colors
Vivid, natural colors? Find out how easy it is! Try the D-Cinelike mode and gain more freedom when color grading in post-production. However, the possibilities don&#39t end there! The DJI O3 Air Unit camera module is perfect for use with DJI Avata ND filters (ND8/16/32), which are made of the highest quality materials and allow flexible aperture control. They also allow hassle-free exposure selection. All this translates into natural, faithfully reproduced colors and an interesting contrast between light and shadow.
Customize it
The DJI O3 Air Unit features a lightweight, compact design and wide compatibility. This means that you will successfully use it in various configurations. In combination with the DJI Goggles 2 and the DJI FPV Remote Controller 2 apparatus will provide you with complete mobility and freedom! Moreover, the device supports Canvas mode. This allows you to customize the information displayed on the DJI Goggles 2 or DJI FPV Goggles V2 screens. Set the PID parameters and configure the system to best suit your habits!
Say goodbye to limitations - compatibility with various DJI devices
Get more opportunities. The DJI O3 Air Unit is compatible with the DJI FPV Goggles V2, which offers O3 video transmission, high resolution, long-range, high noise immunity, and low latency. It also works with DJI Goggles 2, which are distinguished by a lighter, smaller design and have built-in micro-OLED screens. The device also works in conjunction with the DJI FPV Remote Controller 2, which is ergonomically shaped, equipped with Hall effect sticks, and allows you to use the M mode that allows you to perform even extremely complex maneuvers.
Features:


DJI O3+ Flagship Transmission: Transform your video transmission experience. It supports a max video transmission quality of 1080p/100fps from up to 10 km.

Next-Level Imaging Performance: Equipped with a 1/1.7-inch sensor, the DJI O3 Air Unit can shoot 4K/60fps video with a 155° super-wide FOV, giving you richer image details. It also comes with 20GB of built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32).

Canvas Mode: Canvas Mode lets you customize the OSD information on the screens of DJI Goggles 2 or DJI FPV Goggles V2, and adjust PID parameters.

Compact and Richly Compatible: Packed with richer compatibility in a lightweight body. DJI Goggles 2 and DJI FPV Remote Controller 2 are also smaller in size.


Integrating DJI&#39s cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent ..

                                     DJI O3 Air Unit - Go the Distance State-of-the-art DJI transmission technology enclosed in a lightweight, compact design? See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low late

DJI O3 Air Unit Transmission Module (VTX Only) from WREKD Co.

DJI O3 Air Unit Transmission Module (VTX Only)

About this product




The DJI O3 Air Unit Transmission Module will take your FPV experience to a whole new level all in a lightweight and compact design! Supports Betaflight, auto mode, manual mode: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels, microSD









Note: The new DJI O3 Air Unit can draw close to 2A under certain settings. Please verify that your flight controller is capable of 9V / 2A. If not, please consider powering the Air Unit directly from battery +/- on the flight controller or by using a standalone voltage regulator that supplies the required 2A.












Features


Compatible with flight controller firmware that supports Betaflight.
Supports auto mode / Supports manual mode: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels
Supported SD Cards: microSD (up to 256 GB)
Lightweight and compact in size

















Specifications


 Live View Quality and End-to-End Latency:
With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.




With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms."








Supported Flight Controller Firmware: Compatible with flight controller firmware that supports Betaflight. For more information, check the product FAQ.
Channels:
Supports auto mode
Supports manual mode: 40 MHz: 1 channel 20 MHz: 3 channels 10 MHz: 3 channels




Max Video Transmission Range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Supported DJI Goggles: DJI Goggles 2 and DJI FPV Goggles V2
Supported DJI Remote Controller: DJI FPV Remote Controller 2
Recommended microSD Cards:SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC"




Weight:
Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g




Operating Temperature: -10º to 40º C (14° to 104° F)
Dimensions:
Transmission Module: 32.5×30.5×14.5 mm
Camera Module: 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm




Supported SD Cards: microSD (up to 256 GB)
Communication Frequency:
2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)




Channels Info:
FCC/SRRC/CE:
40 MHz:
Channel 1: 5794.5 MHz
20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz




Transmission Power (EIRP):
FCC: &lt 33 dBm
CE: &lt 14 dBm
SRRC: &lt 30 dBm




Input Voltage: 7.4-26.4 V
Cable: 3-in-1 100mm











IMPORTANT NOTES




The 2.4GHz and 5.8GHz frequency bands are supported for receiving, and only the 5.8GHz frequency band is supported for transmitting. Some countries or regions do not support the 5.8 GHz band. Please check local regulations before use and strictly follow them.
This device is compatible with DJI Goggles 2, DJI FPV Goggles V2, and DJI FPV Remote Controller 2.
Video transmission bitrate may vary depending on the operating environment.

















Includes


1x DJI O3 Air Unit Transmission Module











 Listed with ExportYourStore.com

About this product The DJI O3 Air Unit Transmission Module will take your FPV experience to a whole new level all in a lightweight and compact design! Supports Betaflight, auto mode, manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels, microSD Note: The new DJI O3 Air Unit can draw close to 2A under

                                     DJI O3 Air Unit - Go the Distance

State-of-the-art DJI transmission technology enclosed in a lightweight, compact design? See for yourself that it's possible! The DJI O3 Air Unit will provide you with excellent image quality over long distances and is distinguished by ultra-low latency, thanks to which you will take your FPV experience to a whole new level. The device is a real breakthrough in imaging performance - it offers a 1/1.7-inch sensor, flagship video technology, 155° super-wide field of view, and more. It is also distinguished by its compatibility with a wide range of products. Get a reliable image transmission tool, unleash your creativity and enjoy even more sky-high travels!

Enjoy flagship video streaming



Get powerful video transmission capabilities - The DJI O3 Air Unit supports DJI's flagship O3+ technology. This allows you to control the drone while enjoying the shortest response time and clear, sharp live feed. The device also has built-in 2T2R Omni-directional antennas, which guarantee greater stability and smoother transmission. Set off on your next adventure in the skies and experience an unforgettable experience!
See Even More
Get an even clearer and smoother live view. The DJI O3 Air Unit can stream video at resolutions up to 1080p, offering frame rates up to 100FPS. H.265 codec. The result is fantastic image quality. With the DJI O3 Air Unit, you will discover a new dimension of sky travel and provide yourself with an unforgettable experience! Get even more realism on your next flight. Thanks to this, you will feel as if you are actually looking at the world from under the clouds!
Create even greater images
Be amazed by the improved performance of the DJI O3 Air Unit. The camera module of the device offers 20 GB of built-in memory and is equipped with a 1/1.7-inch matrix. As a result, you can enjoy excellent picture quality and incredible detail Thanks to the solutions used, you can easily record a stable 4K/60FPS movie, and the super-wide 155° field of view will allow you to fit much more in the frame! The module is also distinguished by its f/2.8 aperture and 12.7mm equivalent focal length. Check what else will surprise you!
Enter the world of colors
Vivid, natural colors? Find out how easy it is! Try the D-Cinelike mode and gain more freedom when color grading in post-production. However, the possibilities don't end there! The DJI O3 Air Unit camera module is perfect for use with DJI Avata ND filters (ND8/16/32), which are made of the highest quality materials and allow flexible aperture control. They also allow hassle-free exposure selection. All this translates into natural, faithfully reproduced colors and an interesting contrast between light and shadow.
Customize it
The DJI O3 Air Unit features a lightweight, compact design and wide compatibility. This means that you will successfully use it in various configurations. In combination with the DJI Goggles 2 and the DJI FPV Remote Controller 2 apparatus will provide you with complete mobility and freedom! Moreover, the device supports Canvas mode. This allows you to customize the information displayed on the DJI Goggles 2 or DJI FPV Goggles V2 screens. Set the PID parameters and configure the system to best suit your habits!
Say goodbye to limitations - compatibility with various DJI devices
Get more opportunities. The DJI O3 Air Unit is compatible with the DJI FPV Goggles V2, which offers O3 video transmission, high resolution, long-range, high noise immunity, and low latency. It also works with DJI Goggles 2, which are distinguished by a lighter, smaller design and have built-in micro-OLED screens. The device also works in conjunction with the DJI FPV Remote Controller 2, which is ergonomically shaped, equipped with Hall effect sticks, and allows you to use the M mode that allows you to perform even extremely complex maneuvers.
Features:


DJI O3+ Flagship Transmission: Transform your video transmission experience. It supports a max video transmission quality of 1080p/100fps from up to 10 km.

Next-Level Imaging Performance: Equipped with a 1/1.7-inch sensor, the DJI O3 Air Unit can shoot 4K/60fps video with a 155° super-wide FOV, giving you richer image details. It also comes with 20GB of built-in storage. D-Cinelike color mode allows you to make detailed color adjustments to your shots. The camera module can be used with the DJI Avata ND Filters Set (ND8/16/32).

Canvas Mode: Canvas Mode lets you customize the OSD information on the screens of DJI Goggles 2 or DJI FPV Goggles V2, and adjust PID parameters.

Compact and Richly Compatible: Packed with richer compatibility in a lightweight body. DJI Goggles 2 and DJI FPV Remote Controller 2 are also smaller in size.


Integrating DJI's cutting-edge video transmission technology into a lightweight and compact body, the DJI O3 Air Unit features excellent video transmission quality with high definition, low latency, and long distances. It comes with a 1/1.7-inch sensor, a 155° super-wide FOV, and rich compatibility, providing a powerful video transmission solution for your assembled aircraft.






Specifications:
Camera:


Matrix: 1/1.7" CMOS Effective Pixels: 48MP

Lens: Field of View (FOV): 155° Equivalent Focal Length: 12.7mm Focal Length: 2.34mm Aperture: f/2.8 Focus Mode: FF Focus Range: 0.6m to ∞.

ISO range: 100-6400 (Auto) 100-25600 (Manual)

Snapshot: Roll Shutter

Field of View (FOV): 155°
Video resolution:

With DJI Goggles 2: 4K @ 50/60FPS 2.7K @ 50/60/100FPS 1080p @ 50/60/100FPS
With DJI FPV Goggles V2: 4K @ 50/60FPS 2.7K @ 50/60/100/120FPS @ 1080p 50/60/100/120FPS


Video Format: MP4

Electronic Image Stabilization (EIS): The product supports RockSteady technology.

Weight: 8.3g (including coaxial cable)

Air Unit Module:


Weight:

Air Unit (without Camera Unit): Approx. 28g
Air Unit (including Camera Unit): Approx. 36.4g
Antenna: Approx. 3g

Dimensions (L x W x H):

Transmission module: 32.5 x 30.5 x 14.5mm (L x W x H)
Camera module: 21.2 x 20 x 19.5mm (L x W x H)
Coaxial cable: 115mm (length )
3-in-1 cable: 100mm (length)
Antenna: 85mm (length)


Communication frequency:

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX)


Transmission power (EIRP): FCC: &lt33dBm CE: &lt14dBm SRRC: &lt30dBm
Live view quality and end delay:

With DJI FPV Goggles V2: 810p/120FPS video transmission quality: less than 28ms latency. 810p/60FPS video streaming quality: less than 40ms latency.
With DJI Goggles 2: 1080p/60FPS video streaming quality: less than 30ms latency. 1080p/60FPS video streaming quality: less than 40ms latency.


Video Transmission Range: 10km (FCC), 2km (CE), 6km (SRRC)

Flight controller software supported: Compatibility with flight controller software that supports Betaflight. Please see the product FAQ for more information.

Input Voltage: 7.4-26.4V

Working temperature: -10°C to 40°C (14°F to 104°F)

Channels: Auto mode support Manual mode support: 40 MHz: 1 channel 20MHz: 3 channels 10MHz: 3channels

Channel information: FCC / SRRC / CE: 40 MHz: Ch 1: 5794.5 MHz 20 MHz / 10 MHz: Ch 1: 5768.5 MHz Ch 2: 5804.5 MHz Ch 3: 5839.5 MHz

Supported SD cards: MicroSD (up to 256GB)
Recommended MicroSD cards:

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC


DJI Goggles supported: DJI Goggles 2 and DJI FPV Goggles V2

Supported DJI remote controllers: DJI FPV Remote Controller 2

Tips

Using DJI Goggles 2 and tested in an outdoor open environment without interference.
The 155° FOV is only available when using the 4:3 aspect ratio, and when the video recording specification is at 2.7K@50/60fps or 1080p@50fps/60fps the aspect ratio is 16:9, and the video recording specification is at 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
4K/60fps videos do not support the aspect ratio of 4:3, and only support that of 16:9.

Includes:

1x DJI O3 Air Unit Transmission Module




RunCam

RunCam Link Digital Air Unit Kit - Night Eagle HD Camera

Experience reliable long-range FPV with the Runcam Link and Runcam Night Eagle HD.

RunCam Link Digital Air Unit + Night Eagle HD FPV Camera

NDAA Compliant products include parts and gear that adhere to the requirements outlined in Section 848 of the National Defense Authorization Act

NDAA Compliant VTX (Beta)

RunCam Link Wasp HD Micro Kit for DJI

Runcam

The Runcam Link Wasp HD Camera and VTX Kit is another advanced video transmission module by Runcam and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Runcam Link Wasp HD Camera and VTX Kit is designed for FPV drones, and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range of up to 4km. The Link system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.
Specifications

Link VTX

Frequency: 5.725-52.850GHz
Maximum Distance: FCC / SRRC &lt 4KM
Working Voltage: 7.4-26.4V @4-9W
Dimensions: 29x29x13mm
Weight: 19.5g

Wasp Camera

Image Sensor: 1/3"
FOV: D155° H125° V96°
Dimensions 19x19x19mm
Cable Length: 120mm
Shutter: Rolling
Weight: 7.5g (with cable)
Resolution: 720P 120FPS (4:3)


Includes

1x Link VTX
1x Wasp Camera
1x Antenna
1x 6-Pin JST Cable


The Runcam Link Wasp HD Camera and VTX Kit is another advanced video transmission module by Runcam and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Runcam Link Wasp HD Camera and VTX Kit is designed for FPV drones, and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range of up to 4km. The Link system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

Link with Wasp Camera For DJI HD Video System

The Runcam Link Wasp HD Camera and VTX Kit is another advanced video transmission module by Runcam and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 120fps image transmission. The Runcam Link Wasp HD Camera and VTX Kit is designed for FPV drones, and it can be used with DJI FPV Goggles, which provide digital high-definition pictures and a transmission range of up to 4km. The Link system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience. Specifications Link VTX Frequency: 5.725-52.850GHz Maximum Distance: FCC / SRRC &lt; 4KM Working Voltage: 7.4-26.4V @4-9W Dimensions: 29x29x13mm Weight: 19.5g Wasp Camera Image Sensor: 1/3" FOV: D155° H125° V96° Dimensions 19x19x19mm Cable Length: 120mm Shutter: Rolling Weight: 7.5g (with cable) Resolution: 720P 120FPS (4:3) Includes 1x Link VTX 1x Wasp Camera 1x Antenna 1x 6-Pin

The Runcam Link Wasp HD Camera and VTX Kit 720p/120fps Low Latency HD Digital FPV System is the next generation Link set with new Wasp camera. The  Runcam Link Wasp HD Camera and VTX Kit is another advanced video transmission module by Runcam and fully authorized by DJI that supports a 5.8GHz digital video signal and 7
